Nilfisk-Advance Advolution 2710 - Page 24

24 - FORM NO. 56043107 - Advolution
™
2710 / UHR 70-1700
BURNISHING SYSTEM

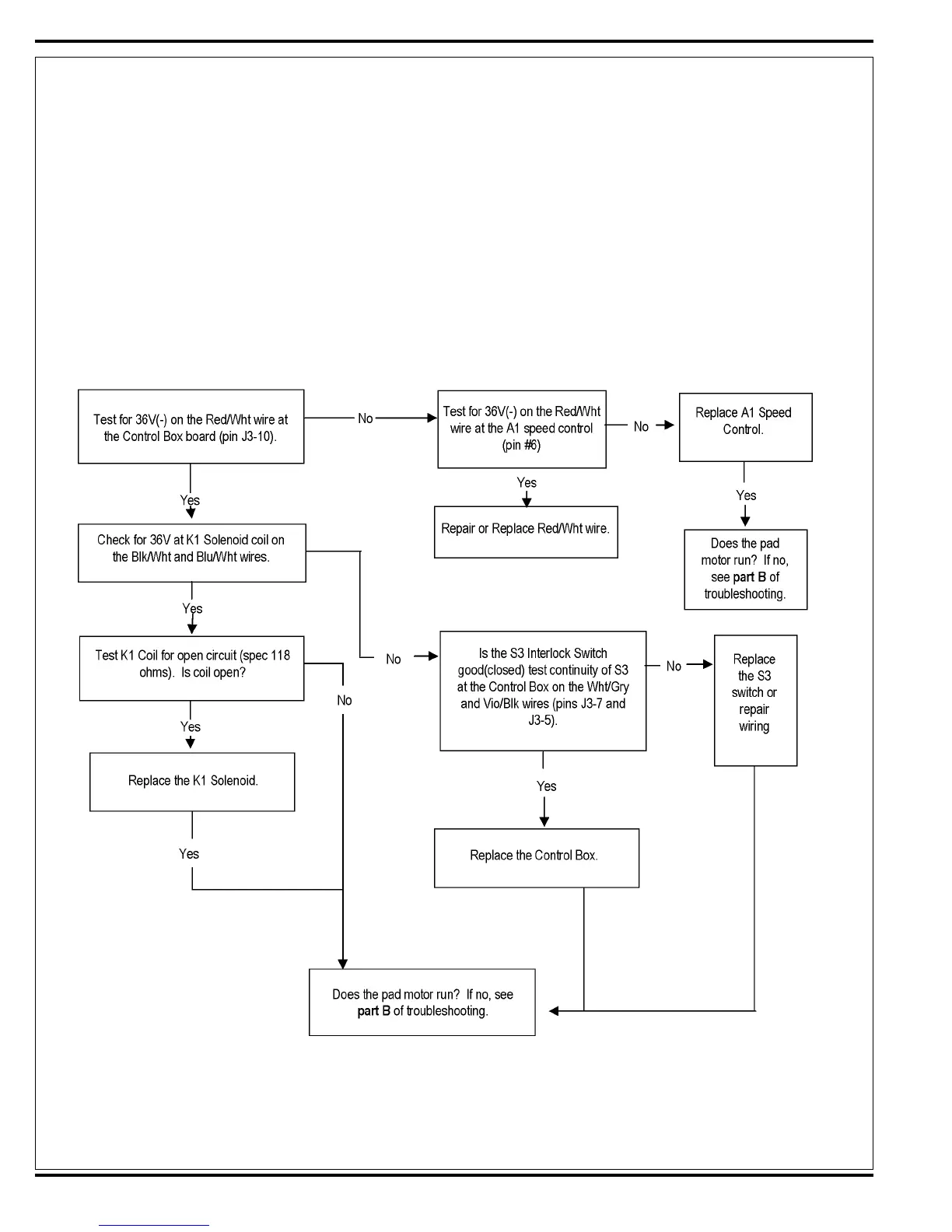

TROUBLESHOOTING GUIDE ELECTRICAL
Symptom
Pad drive motor will not run. Part A (Control Circuit)
Note :Do all testing with key switch on and seat switch activated. Have Pad R/L switch activated and deck in the burnishing position and drive
engaged.
