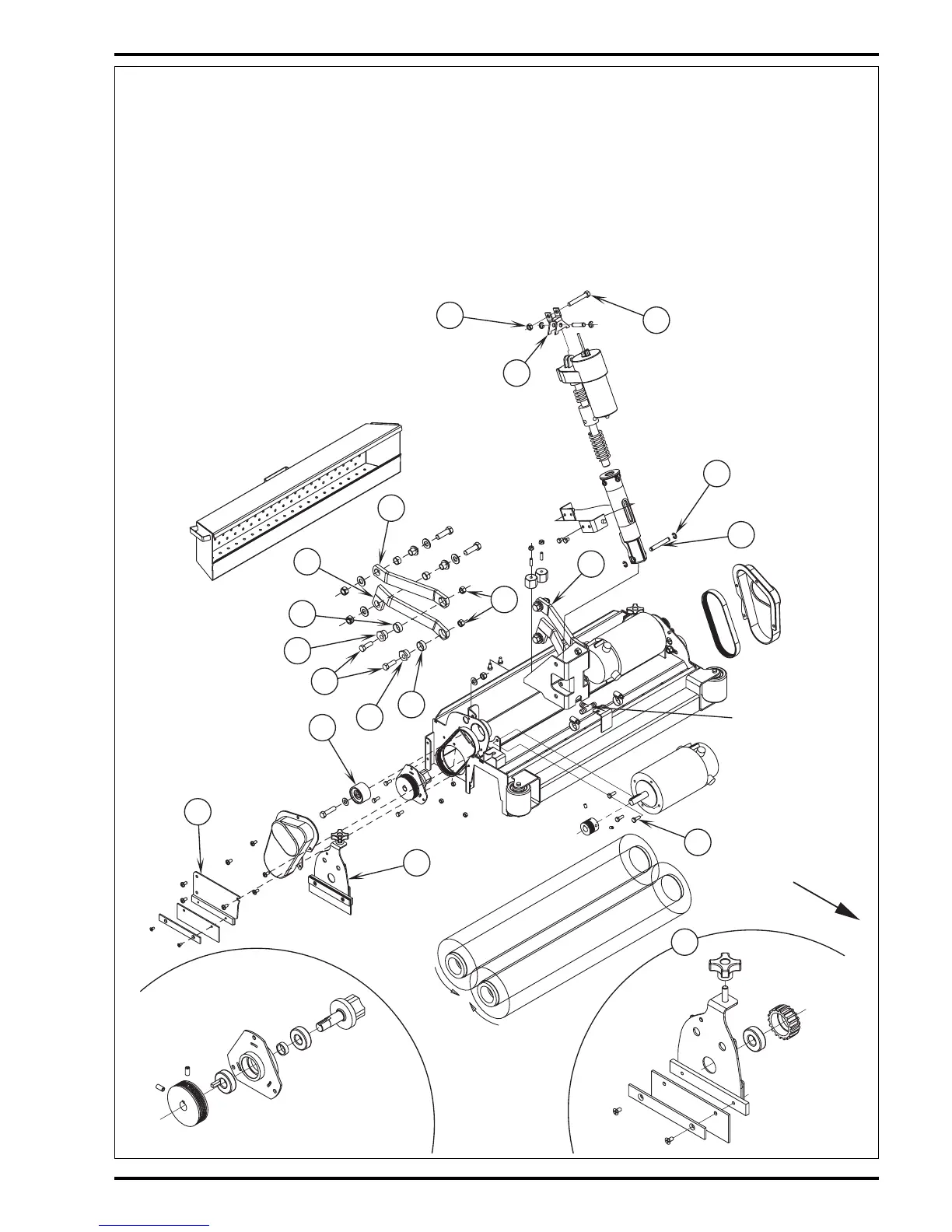

FIGURE 4
4 Press the cord adapter rocker switch to momentarily run (jog) the actuator output (up and down) to a position where the bottom deck Actuator
Pin (W) is loose (see Figure 4). Remove the Retaining Ring (V) from the lower Actuator Pin (W) and pull the pin from the mount bracket.
5 Remove the Hex Screw (AH) and Nut (AI) that secures the upper Actuator Yoke (AJ) at the frame mount.
6 Tilt the motor assembly to the rear then maneuver the actuator out of the machine from the front of the brush deck.
7 See *Important Service Note below.
Note: If the lift actuator motor will not run it will be necessary to jack up the front of the machine or shim up the brush deck to remove the weight
on the lower deck Actuator Pin (W) to remove.
*Important Service Note: After removing any actuator motor and before installing a new motor or drive nut the IN and OUT limit switches must
be set (or checked) to their correct specifications.
Reference the Electrical System in this manual for the
Actuator Drive Nut Adjustment and follow these in-
structions before replacing the actuator motor.
After setting the correct actuator nut adjustments for
the scrub brush lift motor, follow removal steps in
reverse order to reassemble.
