FORM NO. 56043071 CMAX
™
28/34ST / I-MAX
™
28/32C, BA 750/850ST, BA 750C - 63
ELECTRICAL SYSTEM
11
13
9
12
9
8
15
10
2
16
14
4
5
6
7
3
1
L
e
f
t
s
i
d
e
u
n
d
e
r
c
h
a
s
s
i
s

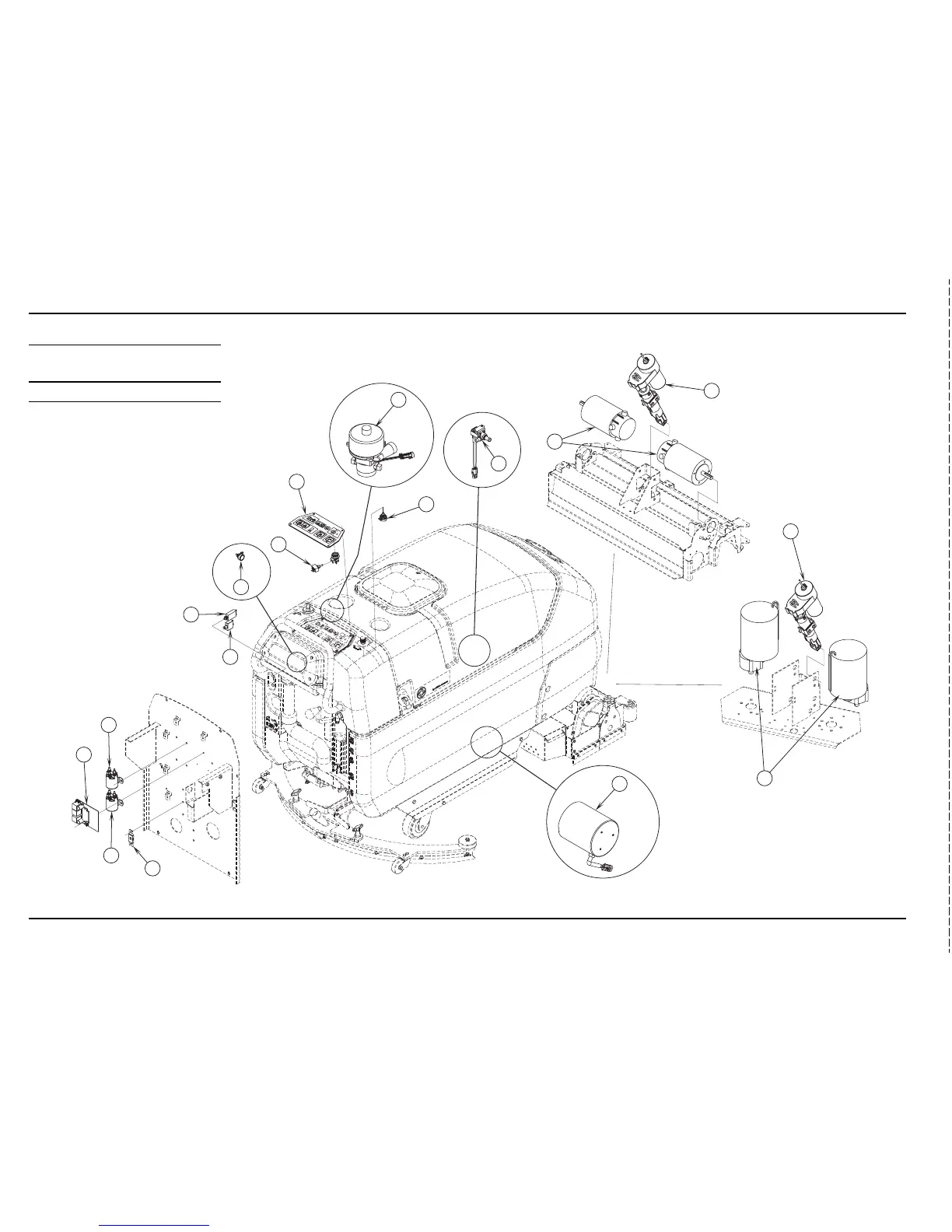

COMPONENT LOCATION
Item Description
1 Speed Control
2Display Panel Assembly
3 Fuse 150 Amp
4Circuit Breaker 5 Amp (Control)
5Circuit Breaker 30 Amp (Wheel Drive)
6 Contactor (Vac Motor)
7 Contactor (Brush Motor)
8 Solution Solenoid Valve
9 Actuator Motor (Brush Lift)
10 Vac Motor Assembly
11 Motor and Gear Unit (Disc)
12 Motor (Cylindrical)
13 Motor (Wheel Drive)
14 Potentiometer, 5K (Forward / Reverse)
15 Potentiometer, 25K (Speed Control)
16 Switch, Key
