169Service Manual – SC401, SCRUBTEC 344 40 - Recovery System
Container and Vacuum Motor Disassembly/Assembly (continues)
18. Run the wiring (X) inside the hole in the outer container (I).
19. Insert the vacuum system motor in the outer container, as shown (Y).

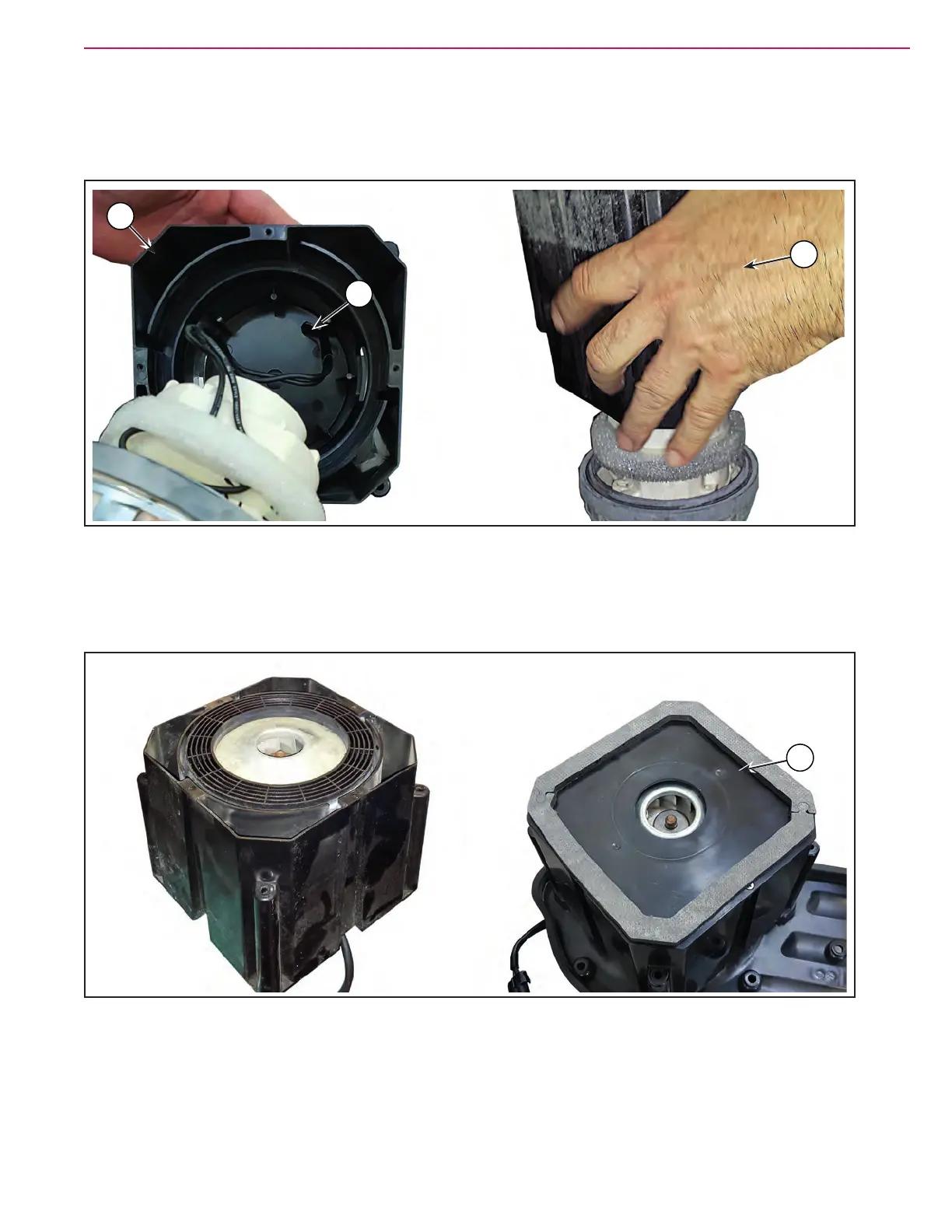

Figure 14:
I
X
Y
20. Rotate the outer container with the vacuum system motor. Check that the motor and gasket are
positioned almost in line with the outer edge of the container.
21. Fit the inner container (J) and fasten it with the 4 screws.
Figure 15:
J
22. Reassemble the components of the Vacuum motor unit on the machine location.
