46Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery
Specications

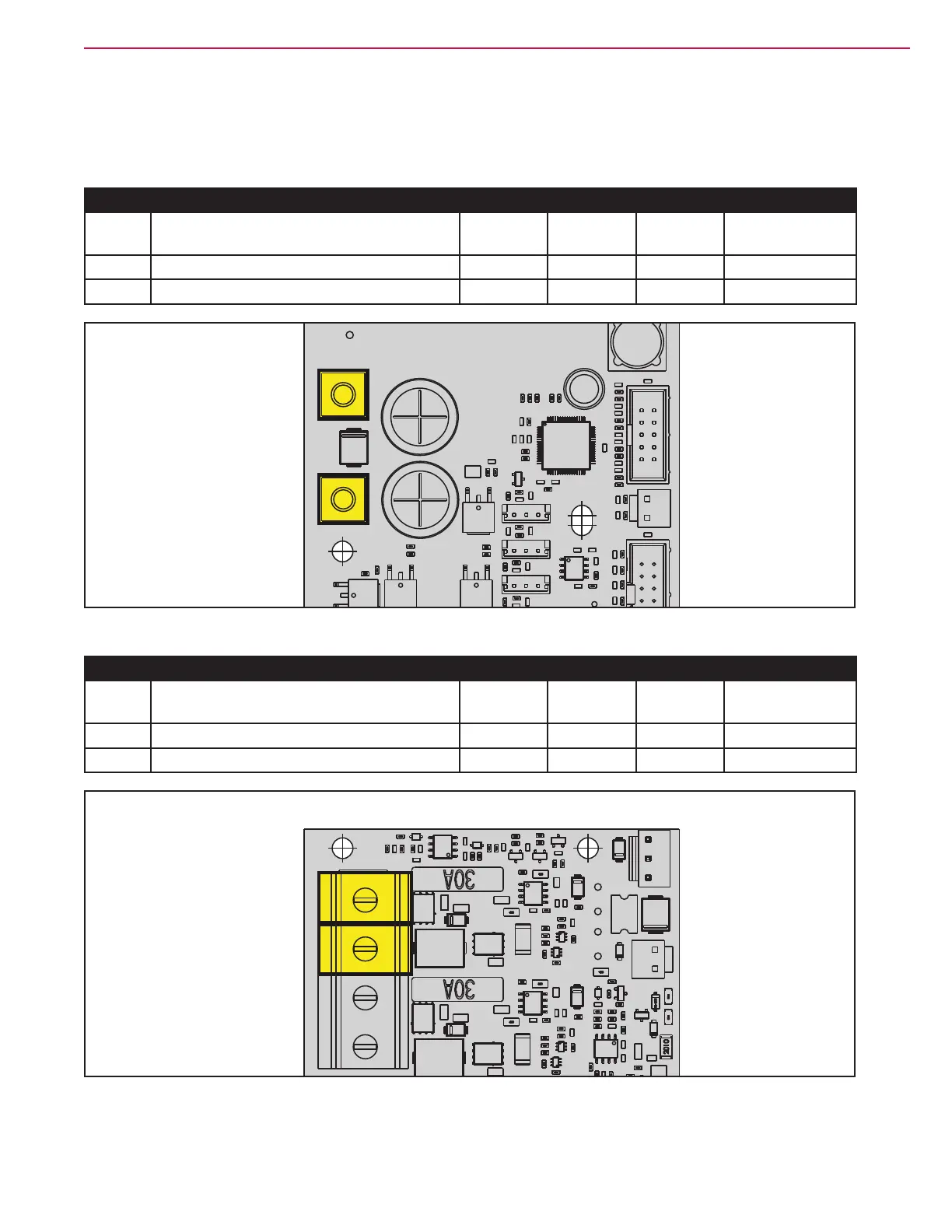

Main Machine Controller (EB1) Connectors
J106, J107 BATTERY: bolt M5
PIN Description
Controller
in/out
V ref. I max. Connected to
+ Vbatt + In 24V 35A BAT+
- Vbatt - In 0V 35A BAT-
+
-
Figure 24:
J303 OUT1: type FCI T702035100J0G (2 ways, screw type)
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Brush output + Out 24V 20A M1+
2 Brush output - Out 0V 20A M1-
+
-
Figure 25:
