52Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery

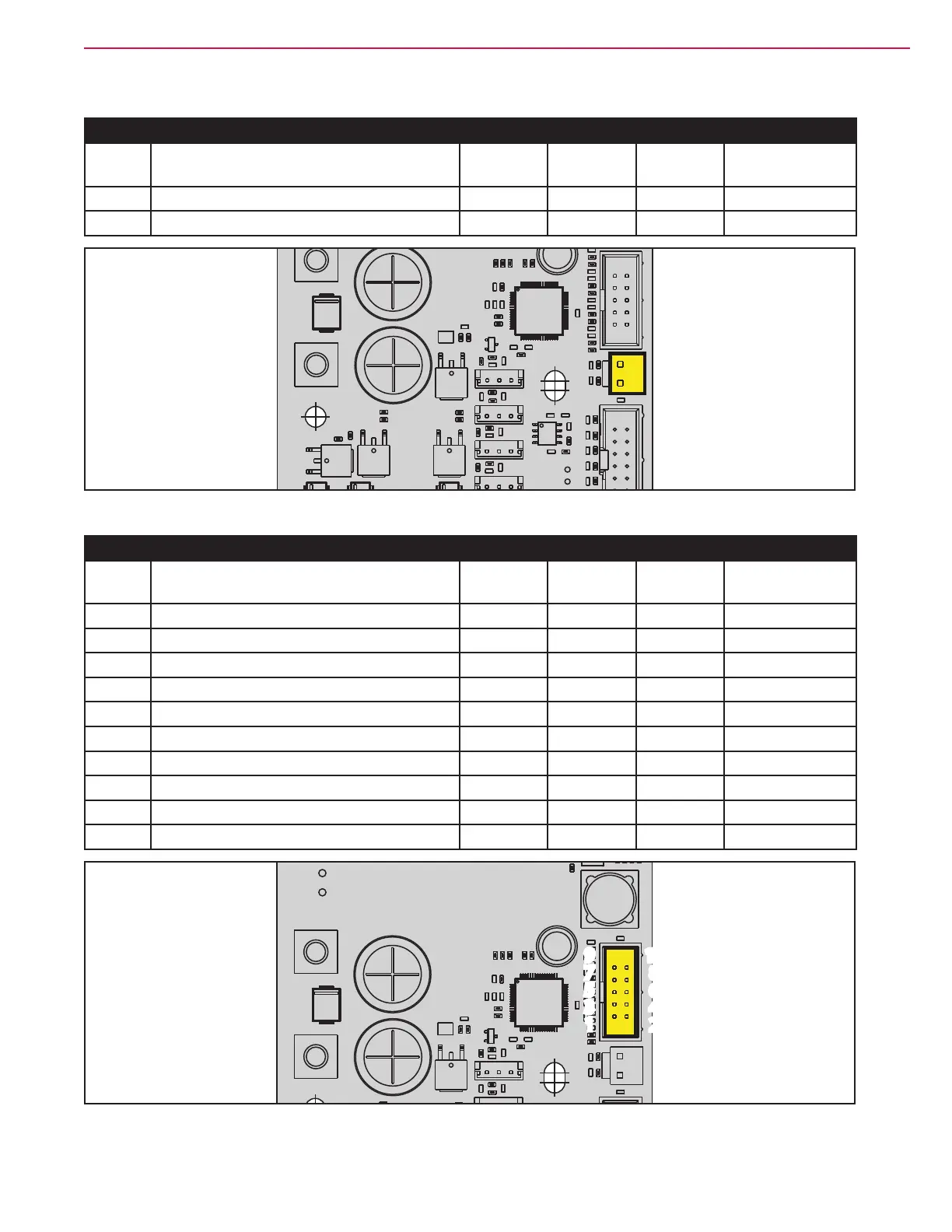

Main Machine Controller (EB1) Connectors (continues)
J108 TRACKCLEAN POWER JST B2P-VH (2 ways, vertical)
PIN Description Controller
in/out
V ref. I max. Connected to
1 Supply 0V (permanent) out 0V <1A TRK.BU
2 Supply +24V (permanent) out 24V <1A TRK.RD
1
2
Figure 35:
J203 GSM/UART/LED: LEOCO 3675P10VTA0 (10 ways, vertical)
PIN Description Controller
in/out
V ref. I max. Connected to
1 - - - - -
2 - - - - -
3 - - - - -
4 - - - - -
5 Output Machine turned on out 5V <1A TRK.BN
6 Output Brush turned on out 0V <1A TRK.WH
7 Output Vacuum turned on out 5V <1A TRK.GY
8 - - - - -
9 Output Drive turned on out 5V <1A TRK.PK
10 Input iButton in 0V <1A TRK.YE
1
2
3
4
5
6
7
8
9
1
3
5
7
9
10
2
4
6
8
10
Figure 36:
