54Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery

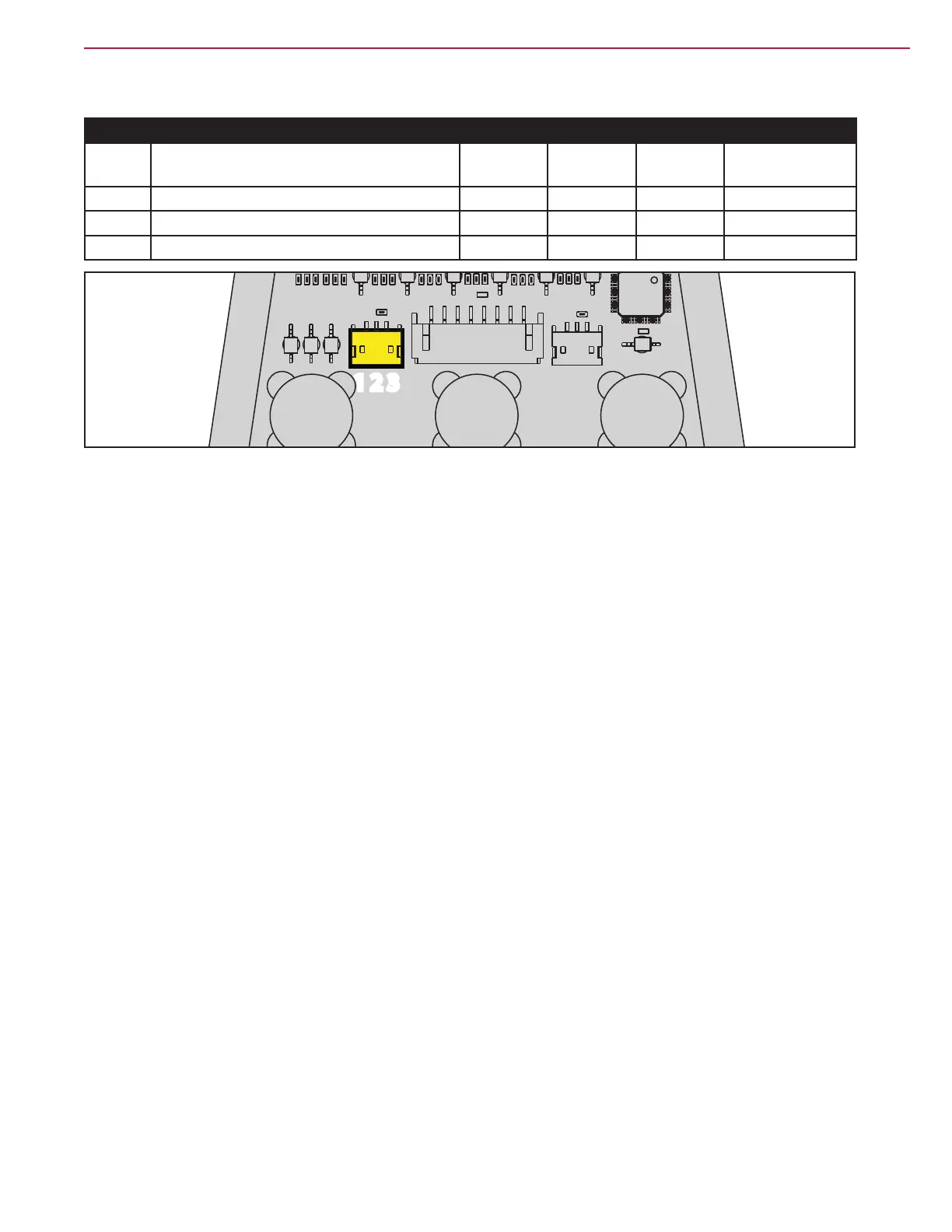

User Interface Controller (EB2) Connectors (continues)
RIGHT: JST S3B-ZR-SM4A-TF (3 ways, side entry)
PIN Description Controller
in/out
V ref. I max. Connected to
1 Right operator presence sensor supply - out 0V <1A S2.1
2 Right operator presence sensor supply + out 5V <1A S2.2
3 Right operator presence sensor input In 0V <1A S2.3
1 2 31 2 3
Figure 39:
