78Service Manual – SC401, SCRUBTEC 344 05 - Control System - Cord

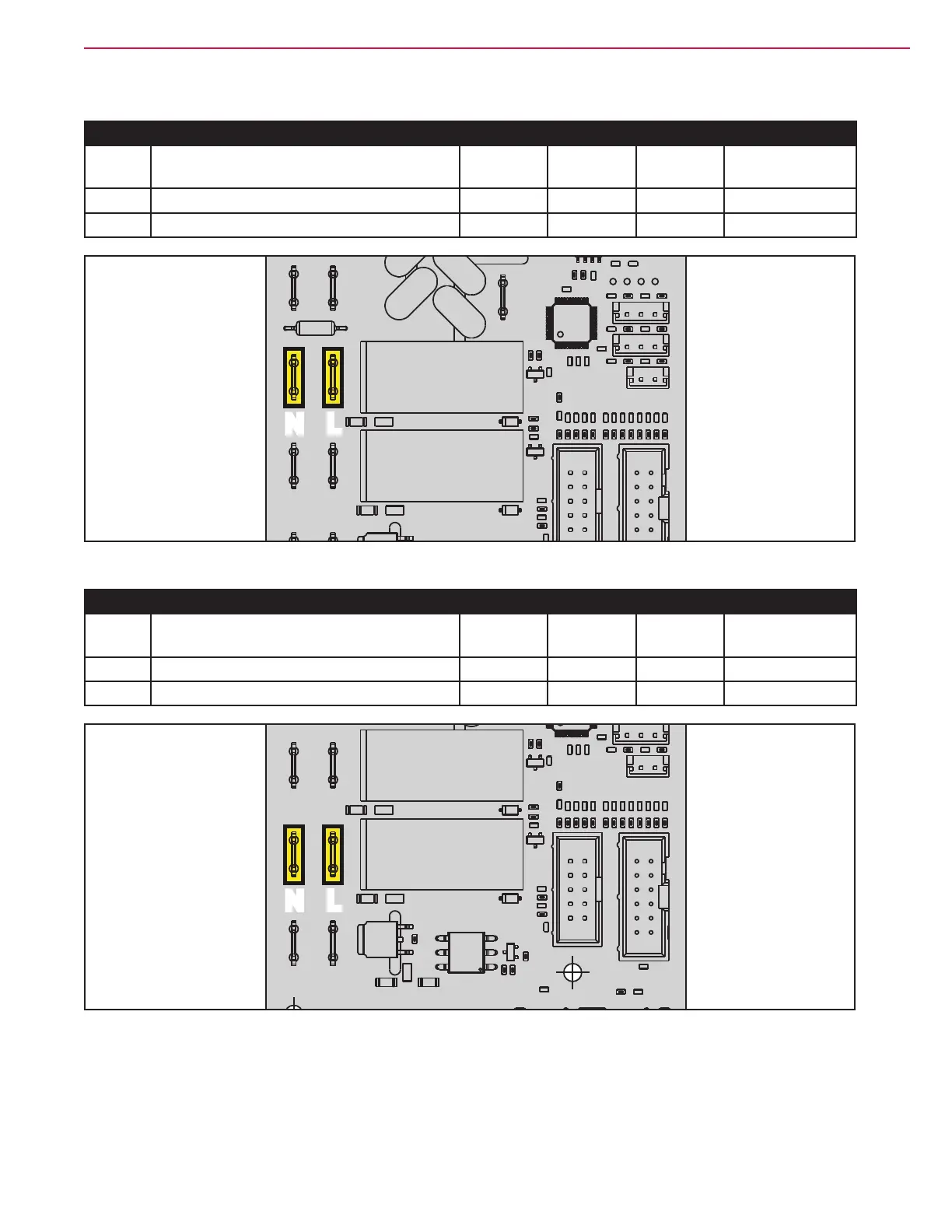

Main Machine Controller (EB1) Connectors (continues)
OUT1: type 2 x faston 6,3 x 0,8 mm
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Brush output Out 230Vac 15A M1+
2 Brush output Out 230Vac 15A M1-
N LN L
Figure 21:
OUT2: type 2 x faston 6,3 x 0,8 mm
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Vacuum output Out 230Vac 5A M2+
2 Vacuum output Out 230Vac 5A M2-
N LN L
Figure 22:
