2. Engine Coolant Temperature Gauge
3. Oil Pressure Gauge
4. Voltmeter
5. Air Pressure Gauge
6. Fuel Gauge
7. Speedometer
8. Hourmeter
9. Axle Direction Indicators
10. Switch, Steering Mode Selector
11. Circuit Breakers
11.a. Shift/Shutdown 15a
11.b. Instrument Panel, 15a
11.c. Steering Mode, 15a
11.d. Fuel Filter, 15a
11.e. Tail Light, 15a
11.f. Work/Brake Lights, 15a
11.g. Horn, 20a
11.h. Heater, 20a
11.i. Air Dryer 10a
11.j. Drain Heater 15a
11.k. Clearance Lights20a
11.l. Abs/Auxiliary
12. Ignition Switch
13. Trailer Air Supply
14. Parking Brake
15. Headlight Switch
16. Worklight Switch
17. Trailer Clearance Light Switch
18. Heater Switch
19. Pre-Heat Indicator
20. Low Air Indicator
21. High Beam Indicator
22. Heater Temp Control
23. Windshield Wiper Switch
24. Windshield Washer Switch
25. Rh Fan Switch
26. Lh Fan Switch
27. Beacon Switch
28. Circuit Breaker 10a Wipers
29. Circuit Breaker 10a Fans
30. Circuit Breaker 10a Beacon
31. Park Brake On
M200 MB4 Tow Tractor Manual No. 42975
PAGE 1-6
JULY 31, 2004

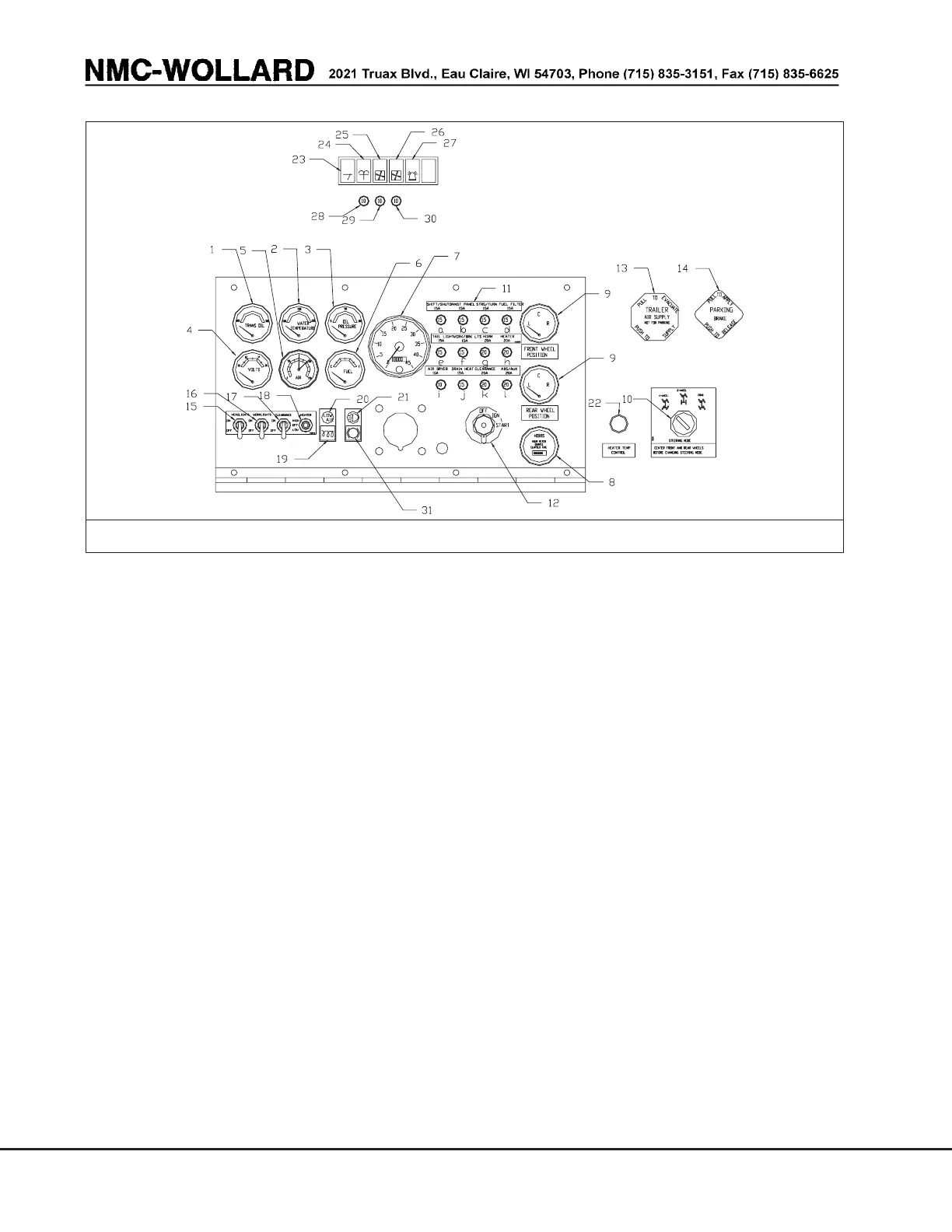

FIGURE 1-2. INSTRUMENT PANEL
