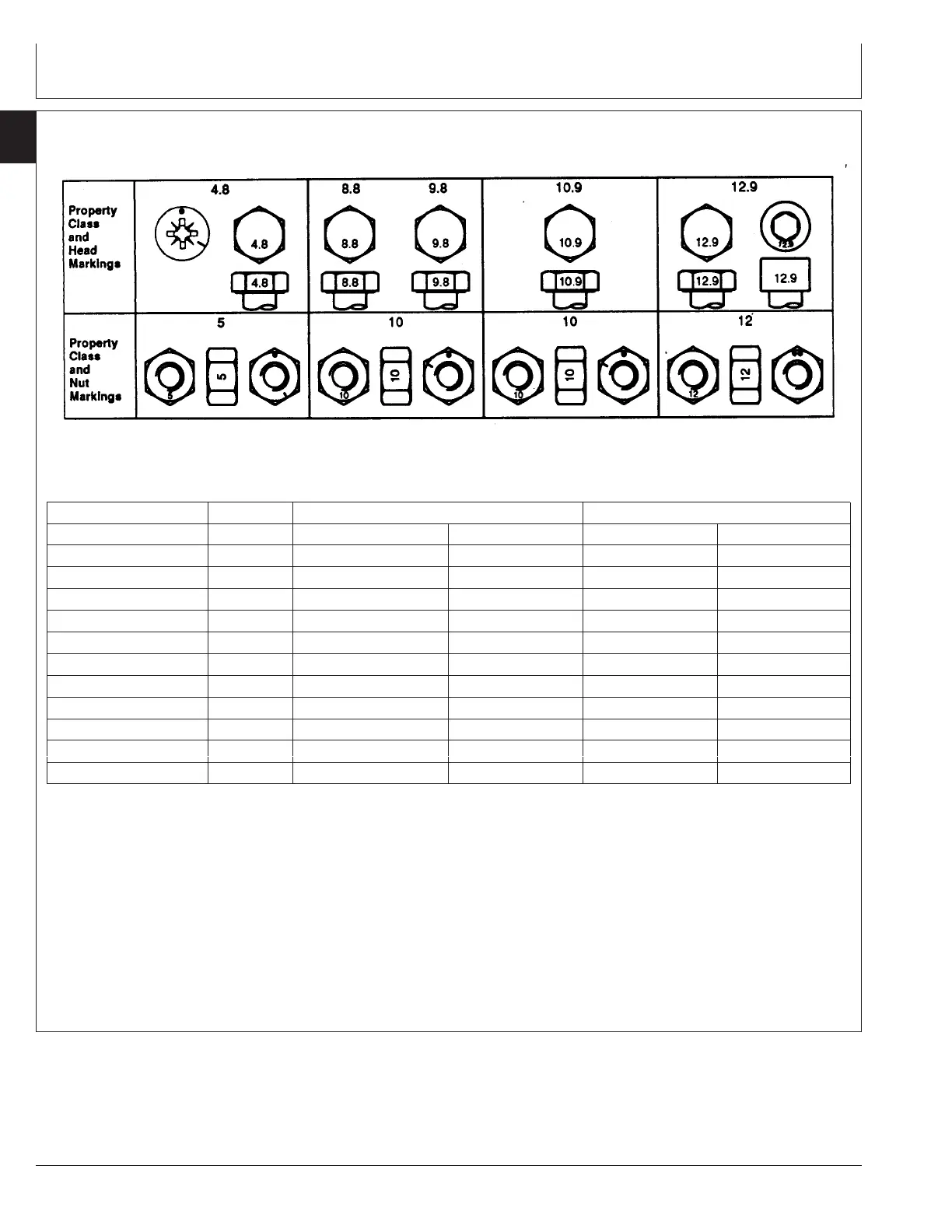

METRIC BOLT AND CAP SCREW TORQUE VALUES
TS1163 –19–04MAR91
Metric
Applies to non-lubricated plain or zinc plated fasteners.
Size - Class 8.8 Class 10.9
-- N•m lb-ft N•m lb-ft
M5 - 6.1 4.5 9.0 6.6
M6 - 10.4 7.7 15.3 11.3
M8-25 193727
M10 - 50 37 73 54
M12 - 87 64 128 94
M14 - 139 102 204 150
M16 - 216 160 318 234
M20 - 435 321 620 457
M24 - 730 555 1072 790
M30 - 1450 1103 2129 1570
M36 - 2533 1927 3721 2744
NOTE: Torque tolerance is ± 20%
Do not use these values if a different torque value or
tightening procedure is given for a specific application.
METRIC BOLT AND CAP SCREW TORQUE VALUES
chart meets Funk Engineering Procedures Manual
Torque Specifications FEP 14.1.
