1.3.14 Instrument Panel for Tractor
w/Hydraulic Brakes
All driver instruments are conveniently lo-
cated on the instrument panel (see Figure
1-1):
1. Voltmeter
2. Engine Coolant Temperature Gauge
3. Oil Pressure Gauge
4. Axle Direction Indicators
5. Switch, Steering Mode Selector
6. Circuit Breakers
6.a. Instrument Panel, 15a
6.b. Shift/Bk-Up, 15a
6.c. Steering Mode, 15a
6.d. Fuel Filter, 15a
6.e. Tail Light, 15a
6.f. Work/Brake Lights, 15a
6.g. Horn, 20a
6.h. Heater, 20a
7. Ignition Switch
8. Fuel Gauge
9. Hourmeter
10. Transmission Temperature Gauge
11. Blank, Switch
12. Headlight Switch
13. Worklight Switch
14. Switch, Heater
15. High Beam Indicator
16. Brake Warning Indicator
17. Heater Temperature Control
18. Speedometer
19. High Beam Switch
20. Windshield Wiper Switch
21. Windshield Washer Switch
22. Park Brake On
1.3.15 Instrument Panel for Tractor w/Air
Brakes
All driver instruments are conveniently lo
-
cated on the instrument panel (see Figure
1-2):
1. Transmission Temperature Gauge
M200 MB4 Tow Tractor Manual No. 42975
PAGE 1-5
JULY 31, 2004

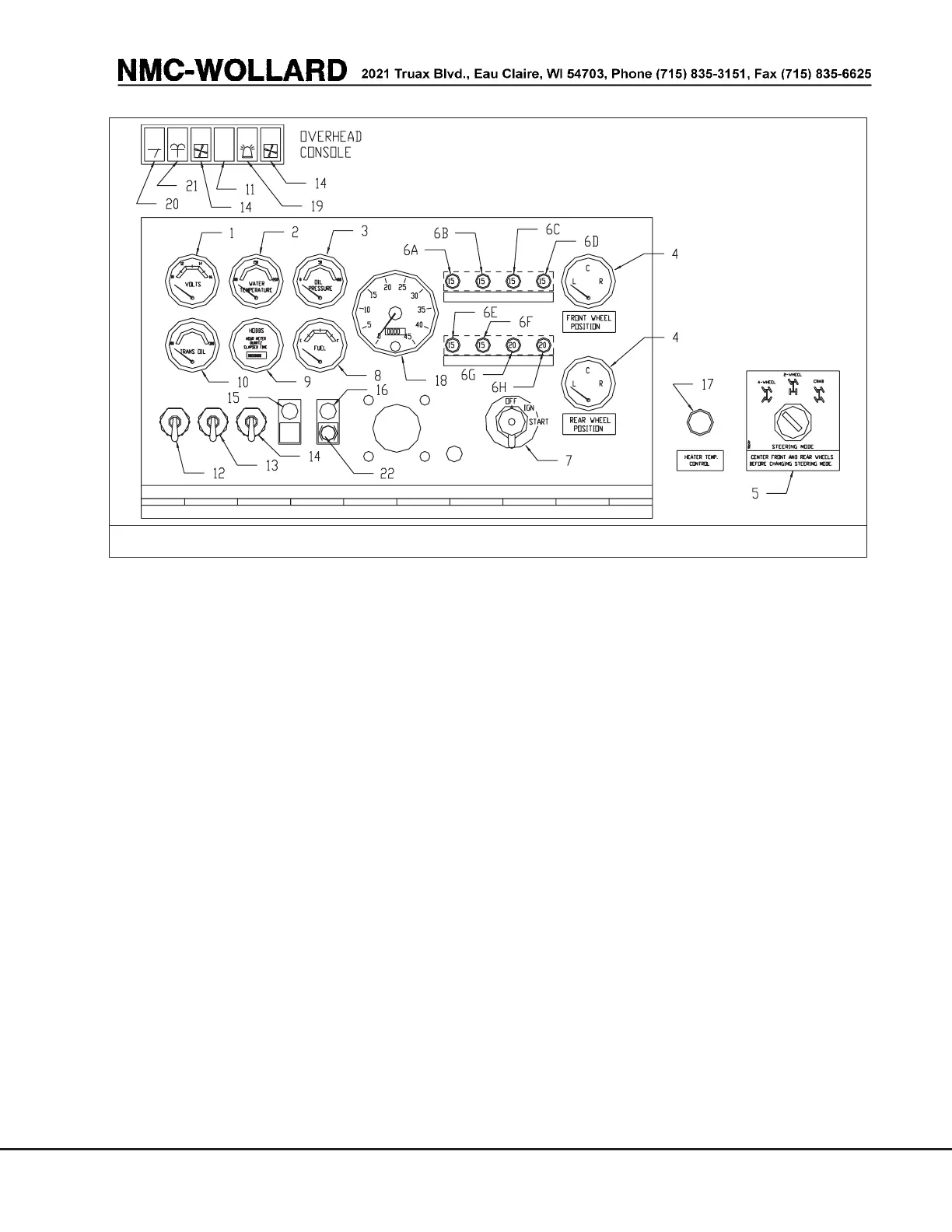

FIGURE 1-1. INSTRUMENT PANEL FOR TRACTOR W/HYDRAULIC BRAKES
