Installation and setup
BDA−N6−ALL−US−1.0www.noax.comPage 12 of 28

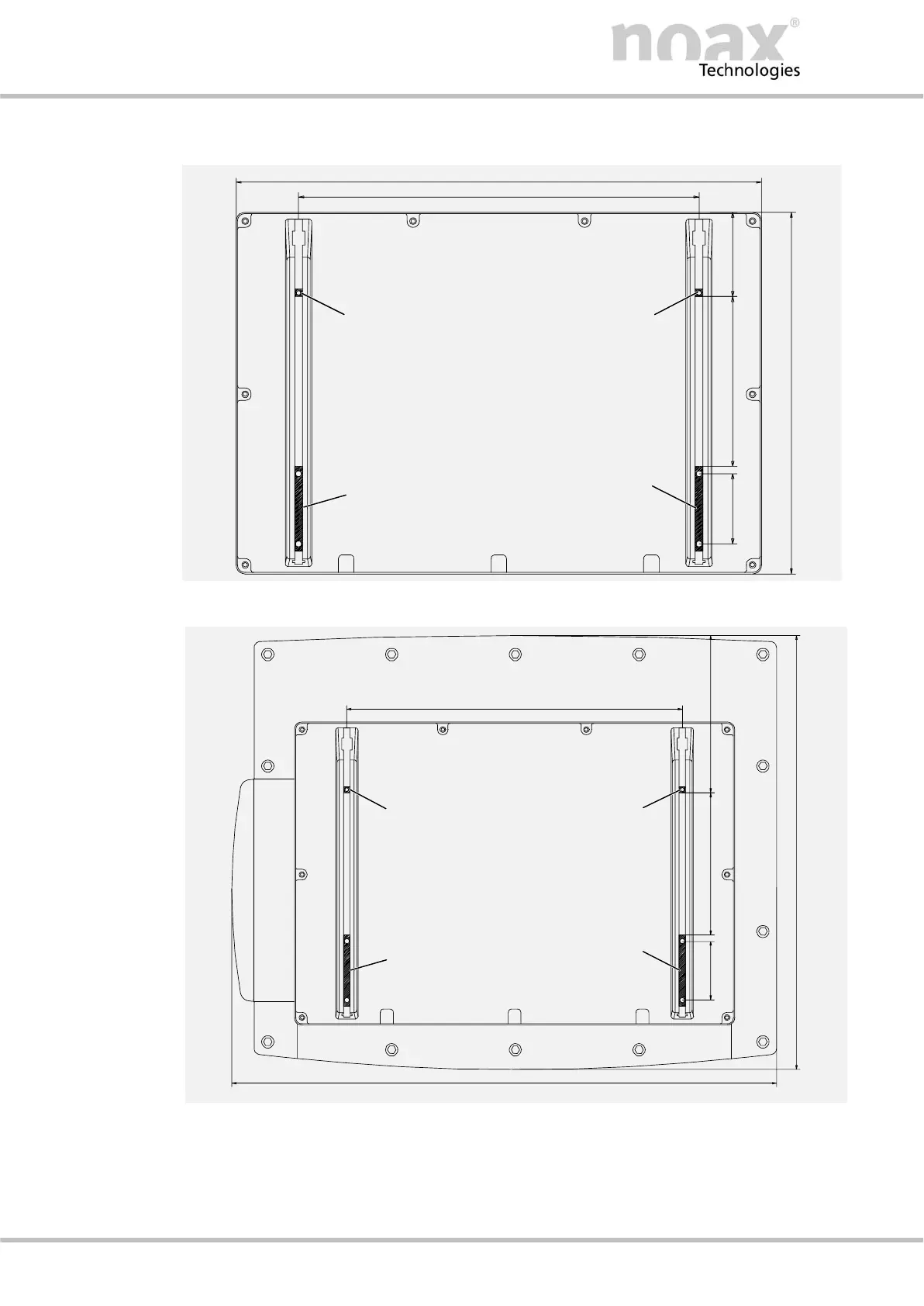

Fig. 20 Rear panel C12
274
48
359
247
ca.
116
58
2
1
1
2
Fig. 21 Rear panel C15
274
48 approx. 116
444
354
1
2
2
1
128
1 − T−bar
2 − Stopper
To mount the Industrial PC. to a surface, follow the direction in the drawing.
