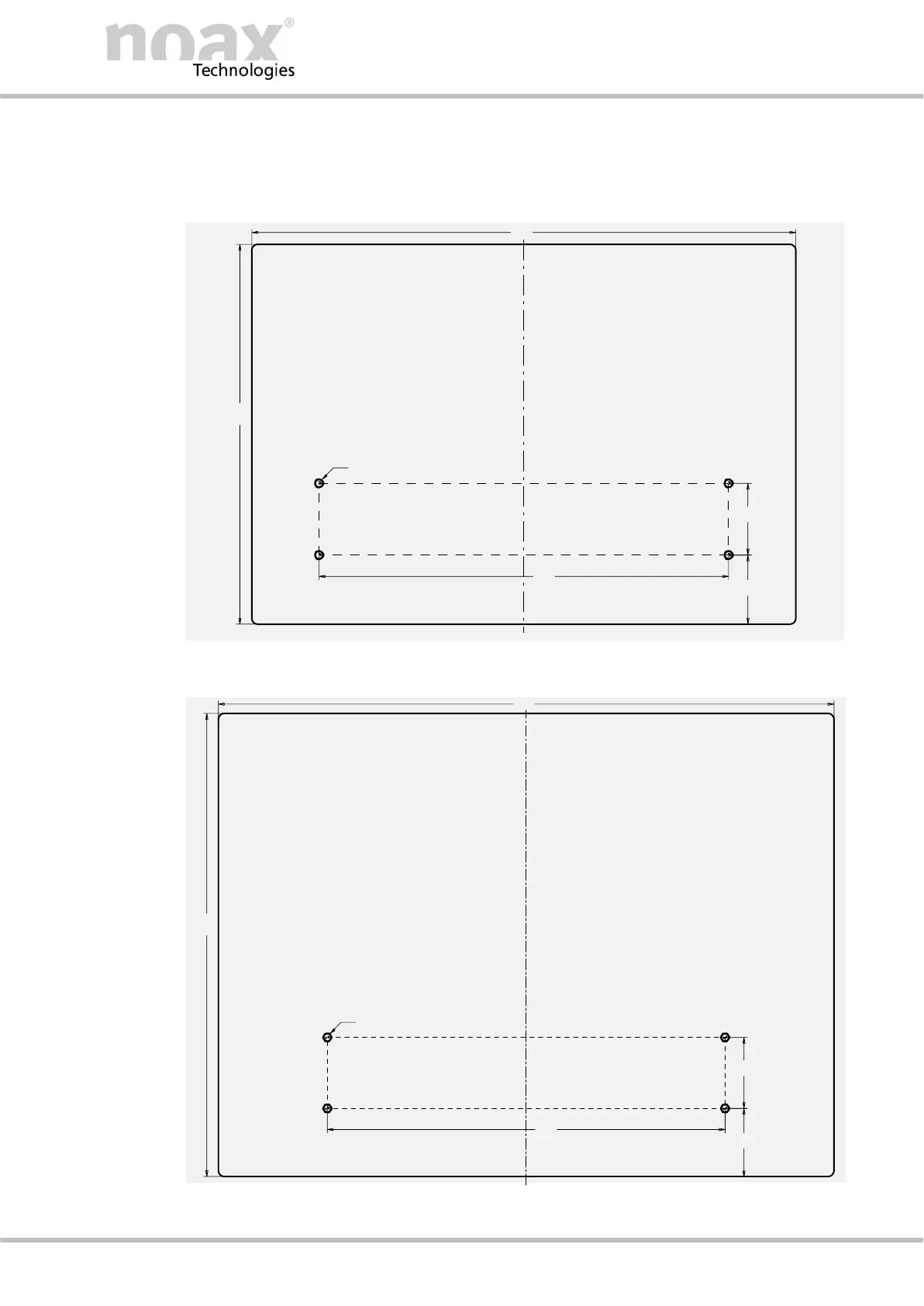

3.3 Mounting the stainless steel S12 and S15
Fig. 22 Rear panel S12
48
274
4xM
5
46
36
4
254
Fig. 23 Rear panel S15
48
274
4x M 5
46
424
313
To mount the Industrial PC. to a surface, follow the direction in the drawing.
