Operation
BDA−N6−ALL−US−1.0www.noax.comPage 16 of 28
4 Operation
4.1 Operating and indicator devices
All operating and inidactor devices are located on the front of the Industrial PC. There are LED’s in
the upper area and keys in the lower area.

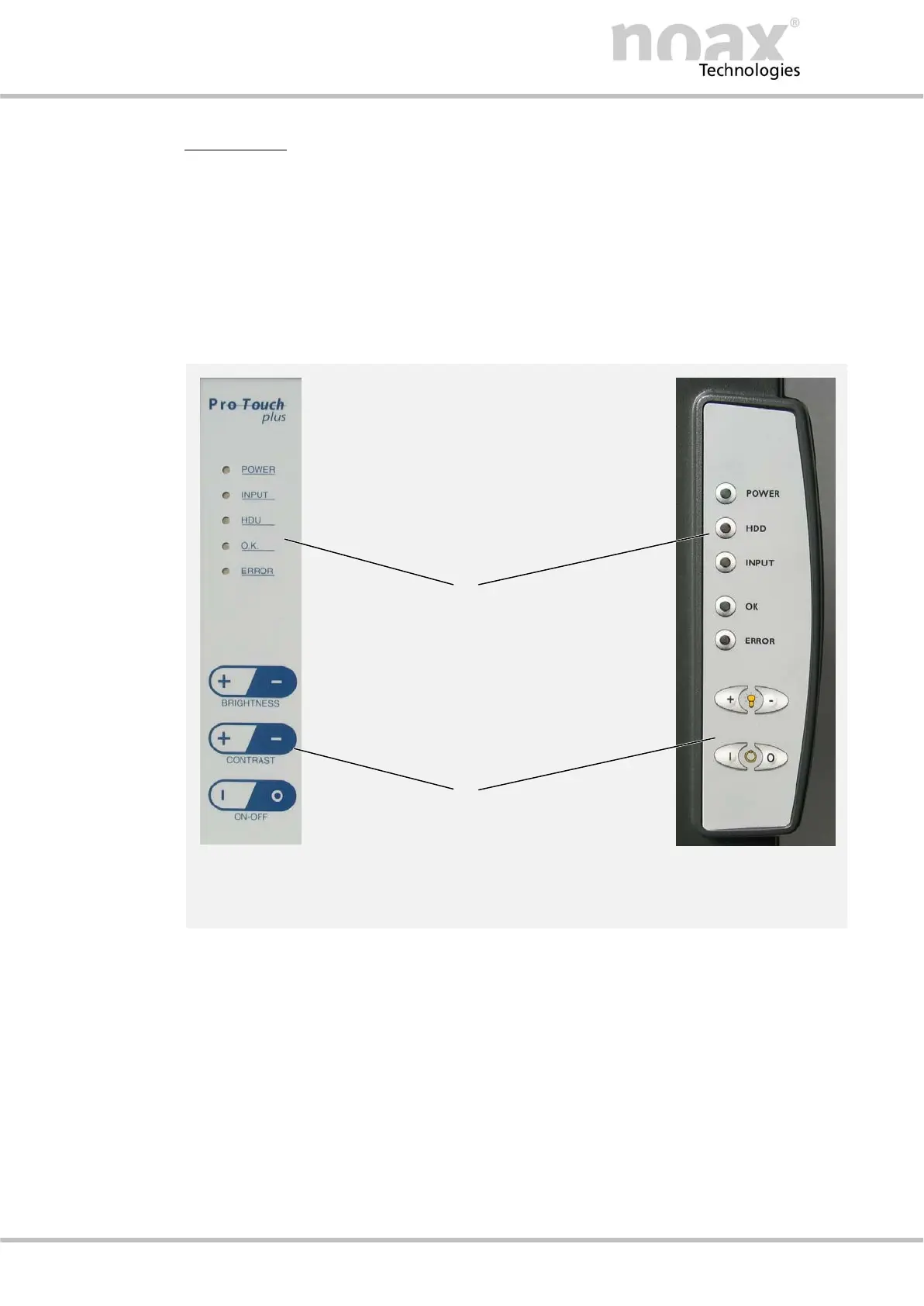

Fig. 27 Operating and indicator devices
1
2
Compact enclosure 12 Zoll C12
Stainless steel enclosure 12 Zoll S12
Front installation enclosure 12 Zoll P12
Compact enclosure 15 Zoll C15
1 − Display area
2 − Key area
í The stainless steel Industrial PC. S15 and the Panel Mount ProTouch P15 do not have any operating
or indicator devices.
4.1.1 General key function information
The light−emitting diode INPUT will light up, or rather, flash as soon as a key has been pressed.
Press the keys as close to the middle of the symbol as possible.
