Installation and setup
BDA−N6−ALL−US−1.0 www.noax.com Page 15 of 28

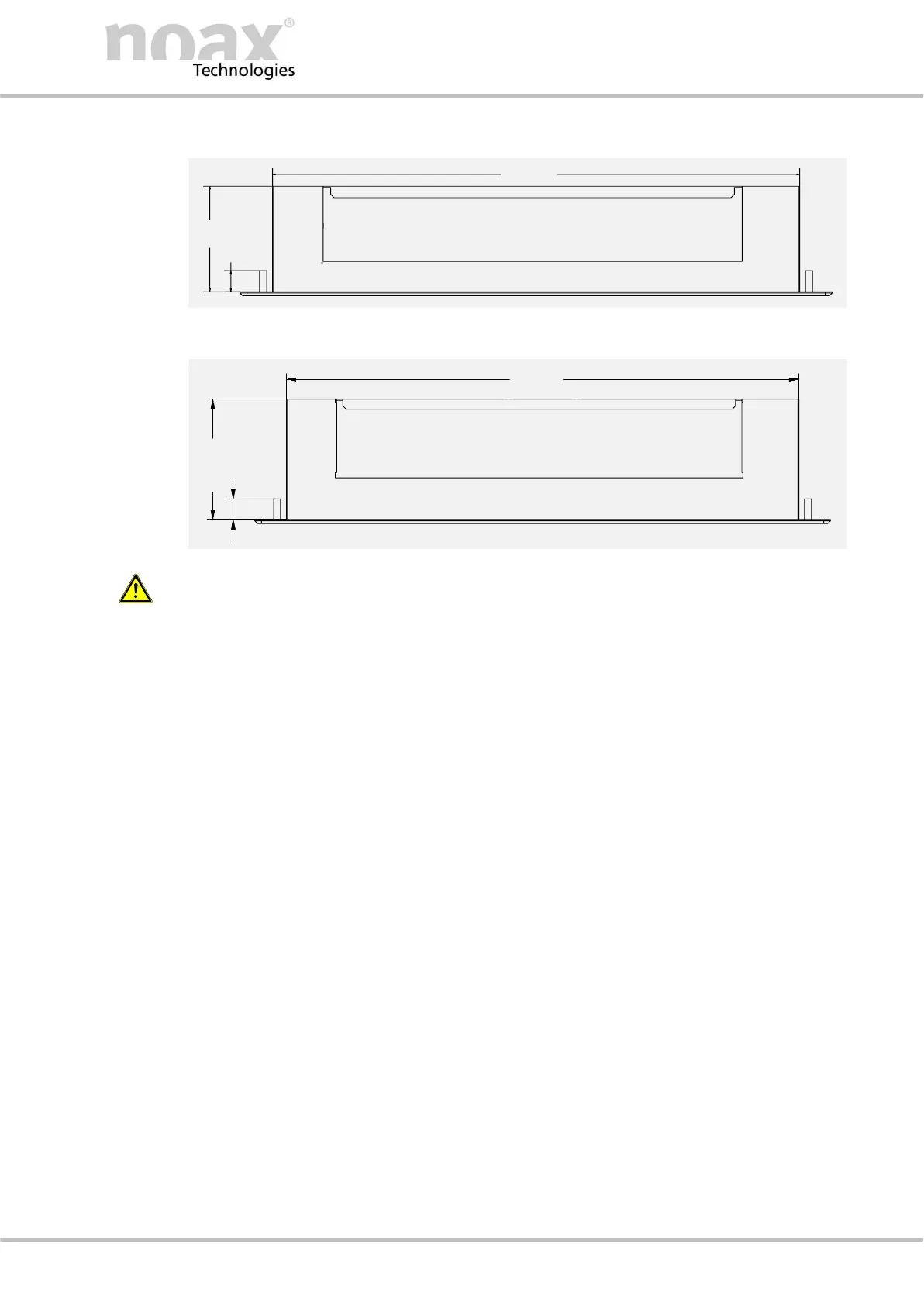

Fig. 25 Depth of the Panel Mount P12
37 7.6
7 5
15
Fig. 26 Depth of the Panel Mount P15
3 7 7.6
8 8 .10
15
To ensure sufficient air circulation, you must leave a minimum of 0.6 inch (15 mm) extra
space.
