noax C12 - Installation of the Panel Mount P12 and P15

Installation and setup
BDA−N6−ALL−US−1.0www.noax.comPage 14 of 28
3.4 Installation of the Panel Mount P12 and P15

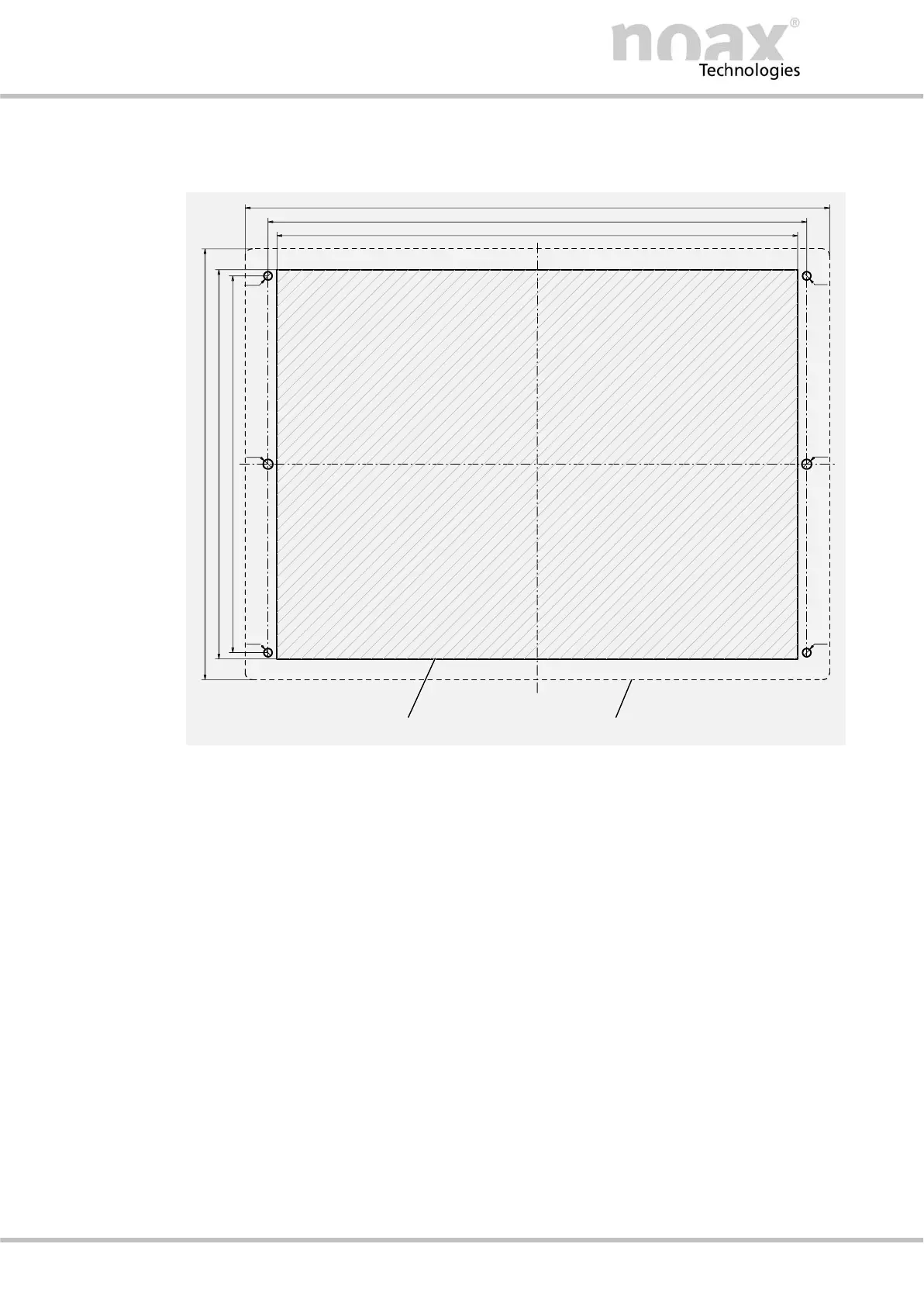

Fig. 24 Installation cut−out for P12 and P15
422
311
379
284
389
272
ø6
ø7
ø6
ø6
ø7
ø6
12
1 − Cut−out for installation
2 − Dimensions of the front panel of the Industrial PC
