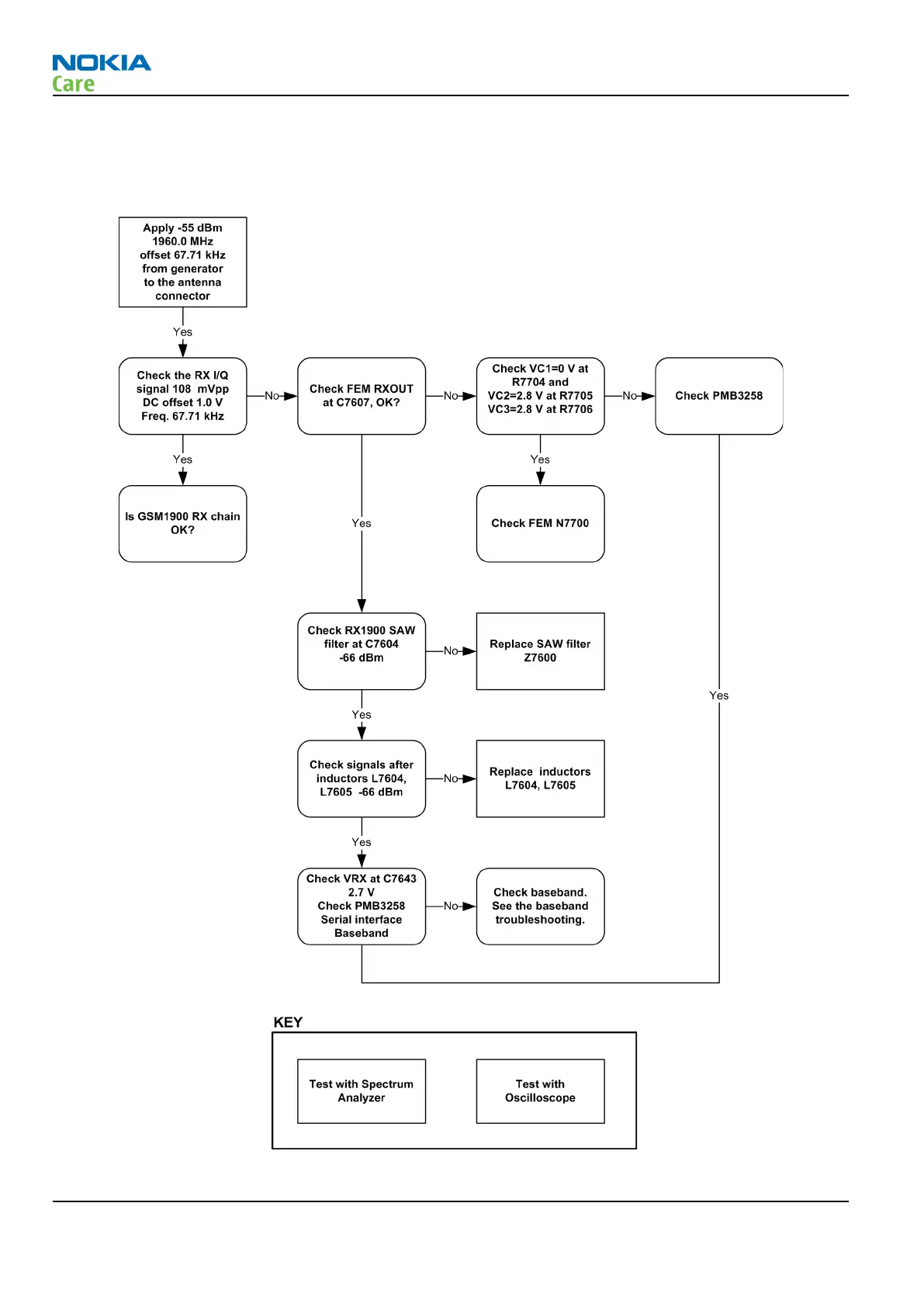

Troubleshooting diagram for GSM1900 receiver
Troubleshooting flow
Figure 60 GSM1900 receiver troubleshooting
RM-340; RM-341
RF Troubleshooting Instructions
Page 4 –32 COMPANY CONFIDENTIAL Issue 1
Copyright © 2007 Nokia. All rights reserved.
