General baseband troubleshooting

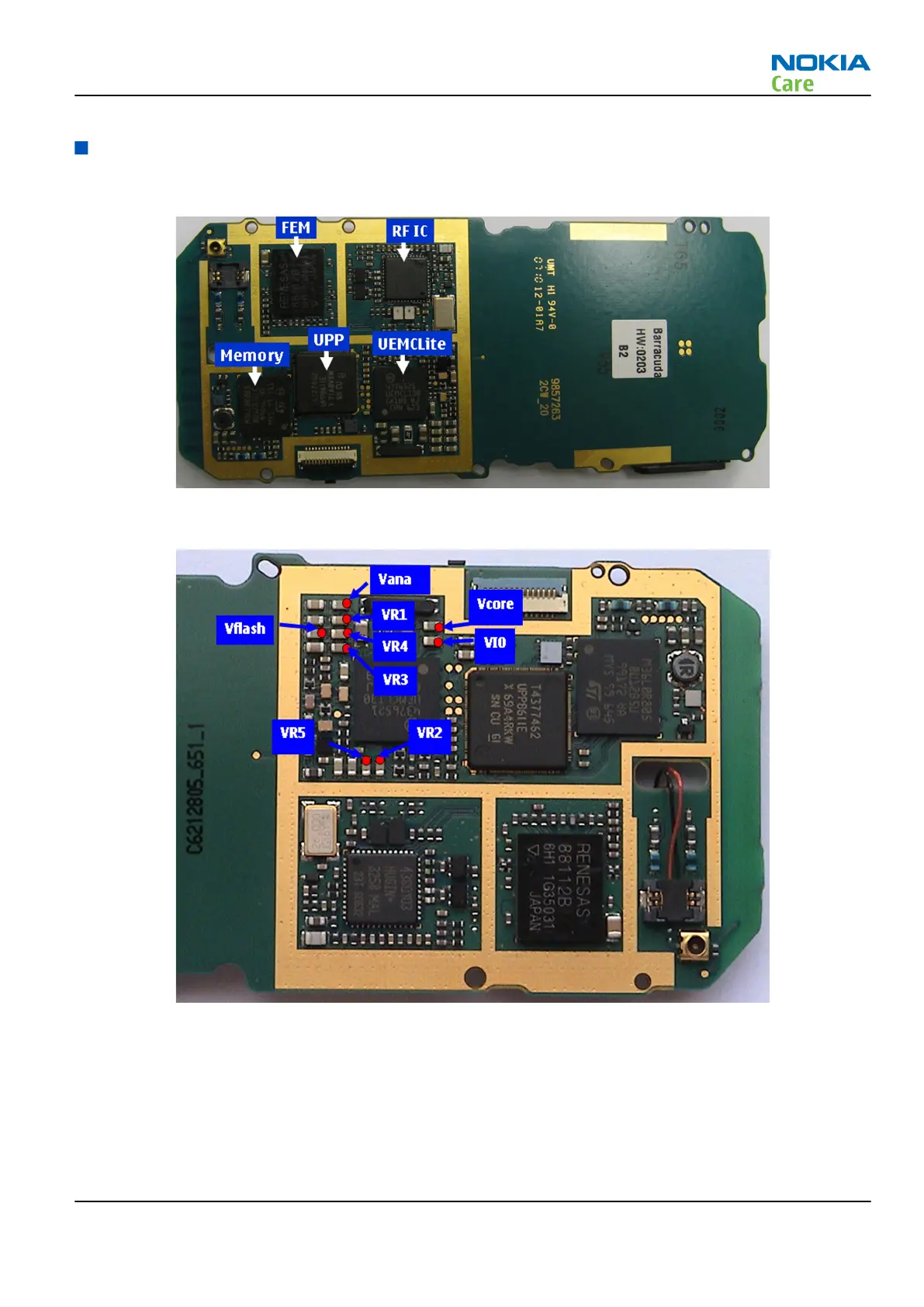

Key components
Power supply test points
Phone cannot be powered on (I)
Context
This means that the phone does not use any current at all when the supply is connected and/or power key
is pressed. It is assumed that the voltage supplied is 3.6VDC. The UEMCLite will prevent any functionality at
battery/supply levels below 2.9VDC.
RM-340; RM-341
Baseband Troubleshooting Instructions
Issue 1 COMPANY CONFIDENTIAL Page 3 –5
Copyright © 2007 Nokia. All rights reserved.
