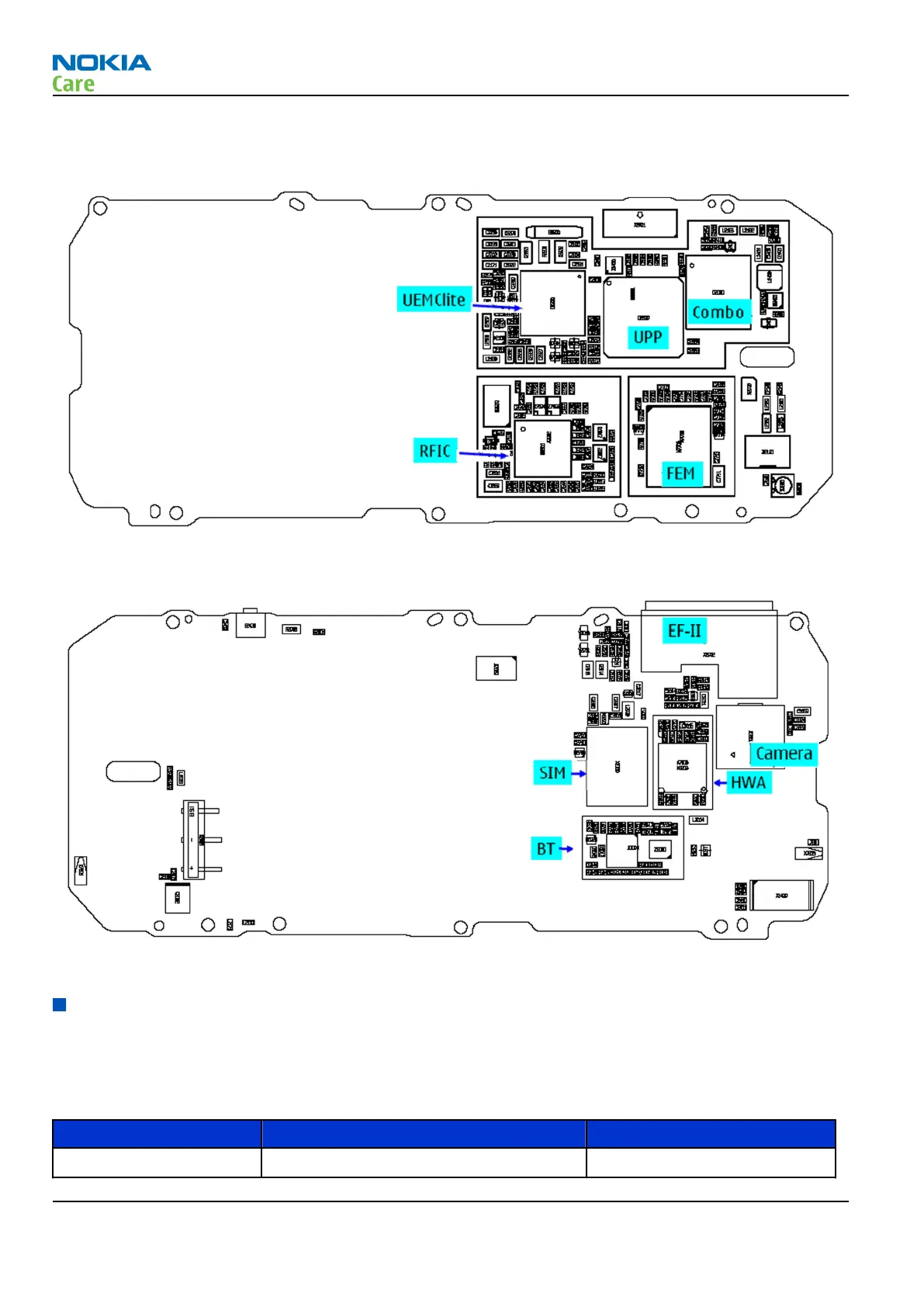

PWB outline
Figure 115 PWB top side component placement
Figure 116 PWB bottom side component placement
RF description
Frequency band, power and multi-slot class
The requirement leads to the specification in the table below:
Table 14 Frequency bands and TX power class
System Frequency band TX power class
GSM900 Tx: 880 – 915 MHz 4 (33dBm)
RM-340; RM-341
System Module
Page 6 –20 COMPANY CONFIDENTIAL Issue 1
Copyright © 2007 Nokia. All rights reserved.
