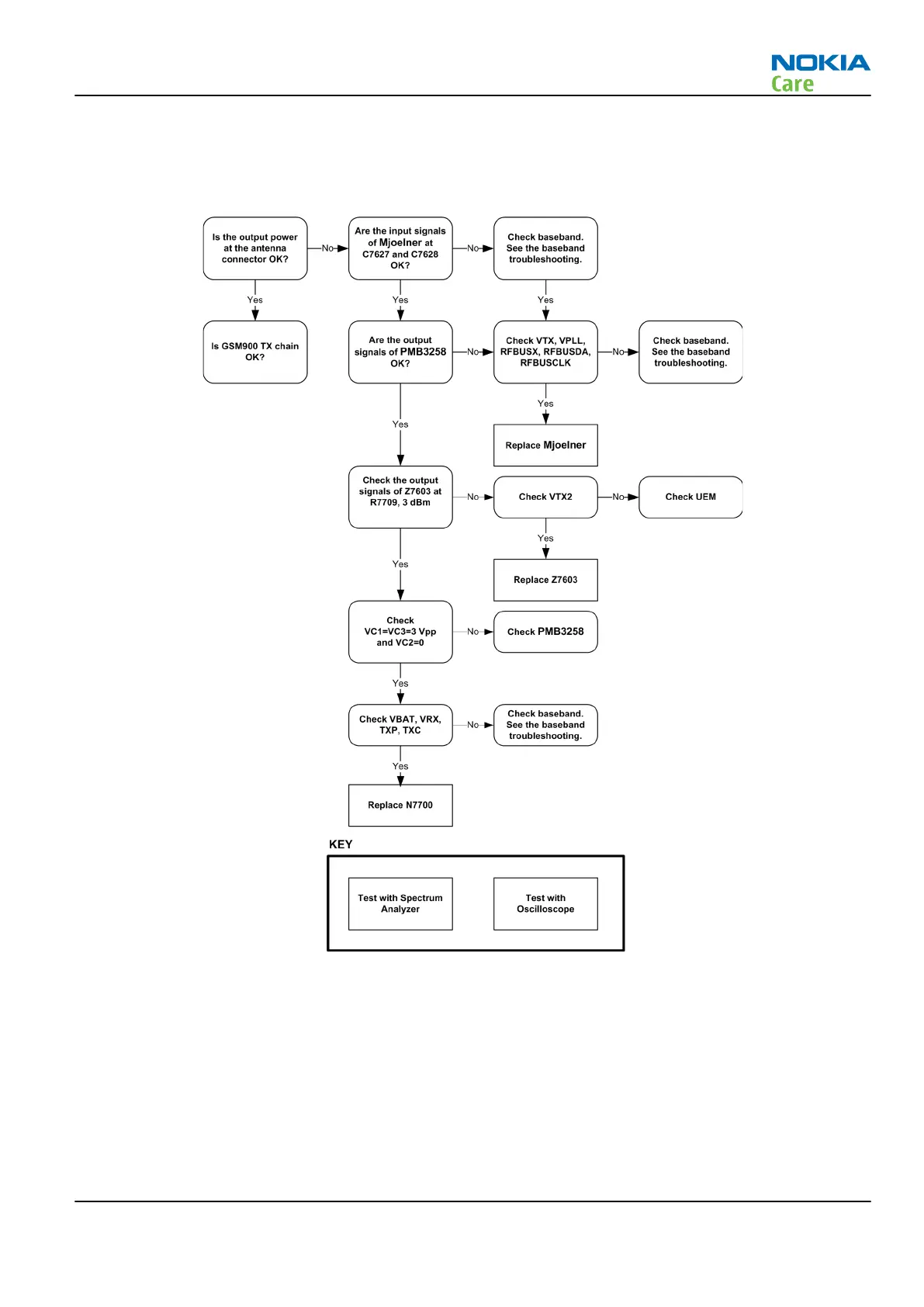

Troubleshooting diagram for GSM900 transmitter
Troubleshooting flow
Figure 43 GSM900 tarnsmitter troubleshooting
GSM900 TX output power
Measure the output power of the phone; it should be about 32.5dBm. Remember the cable loss is about
0.3dB.
RM-340; RM-341
RF Troubleshooting Instructions
