Nokia 2600c-2b - Check Earpiece Using Ext Microphone in Hp Speaker Out Loop; Check IHF & Ringing Tone Function Using Buzzer

7. Check if signal is detected at HS EAR L/R, shown in Figure 4-pole jack plug for audio accessory above.

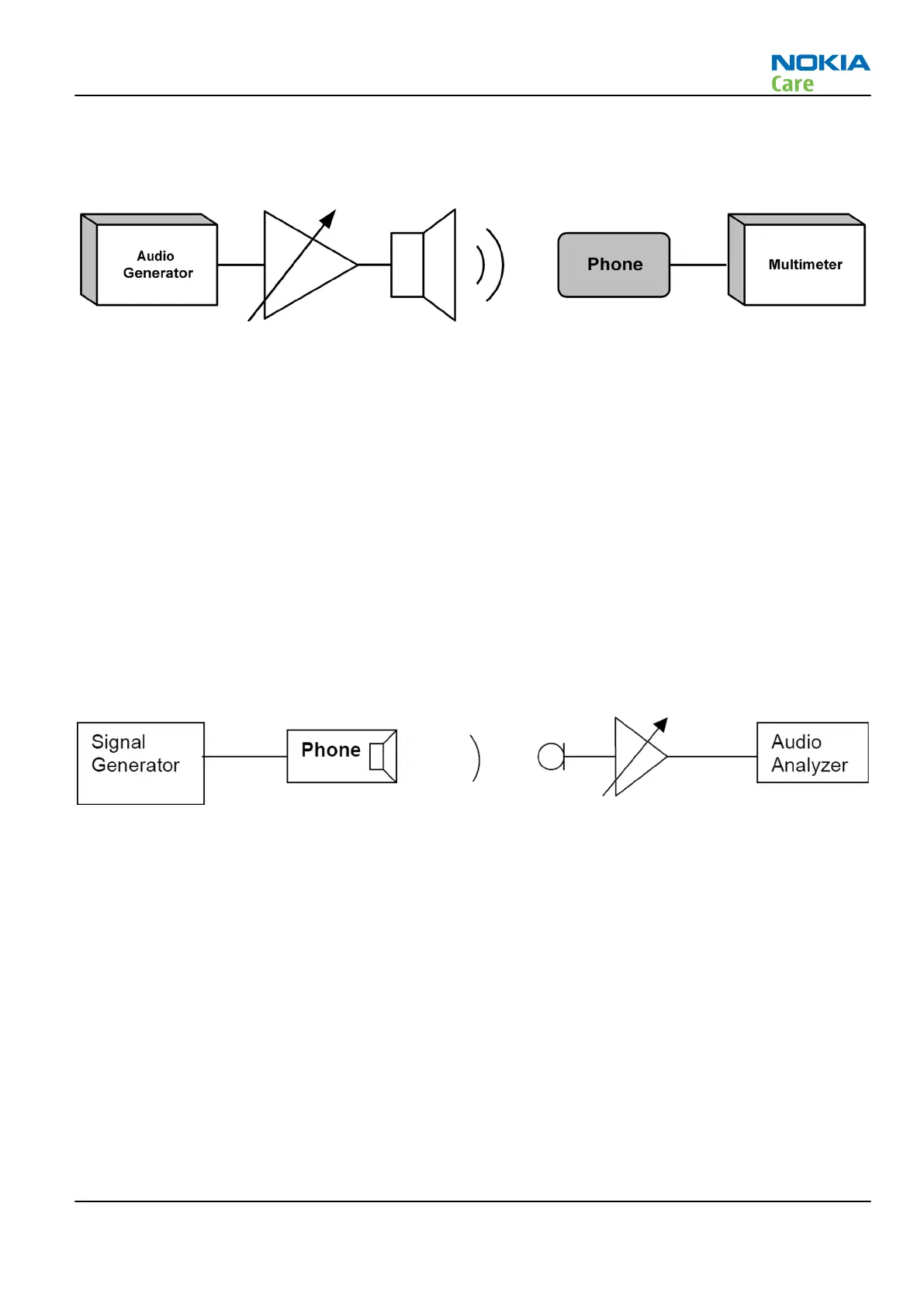

Figure 20 Test arrangement for microphone
Check earpiece using "Ext microphone in Hp speaker out" loop
Steps
1. Connect phone with Phoenix.
2. Open the
Audio Test window from Testing→ Audio test , as shown in Figure Phoenix audio test
window above.
3. Select Ext microphone in Hp speaker out.
4. Select Acc.Detection as Off.
5. Select Loop as On.
6. Input signal to HS MIC, as shown in Figure 4-pole jack plug for audio accessory above, for example
100mVpp, 1kHz.
7. Check if sound is heard in the earpiece.
Figure 21 Test arrangement for of earpiece
Check IHF & ringing tone function using "Buzzer"
Steps
1. Connect phone with Phoenix.
2. Open “audio test” window from “Testing -> Audio test”, as shown in Figure Phoenix audio test window
above.
3. In “Buzzer” area, select suitable signal to be played, for example 1 kHz, Strength 5”
4. Select “Volume” as “On”
