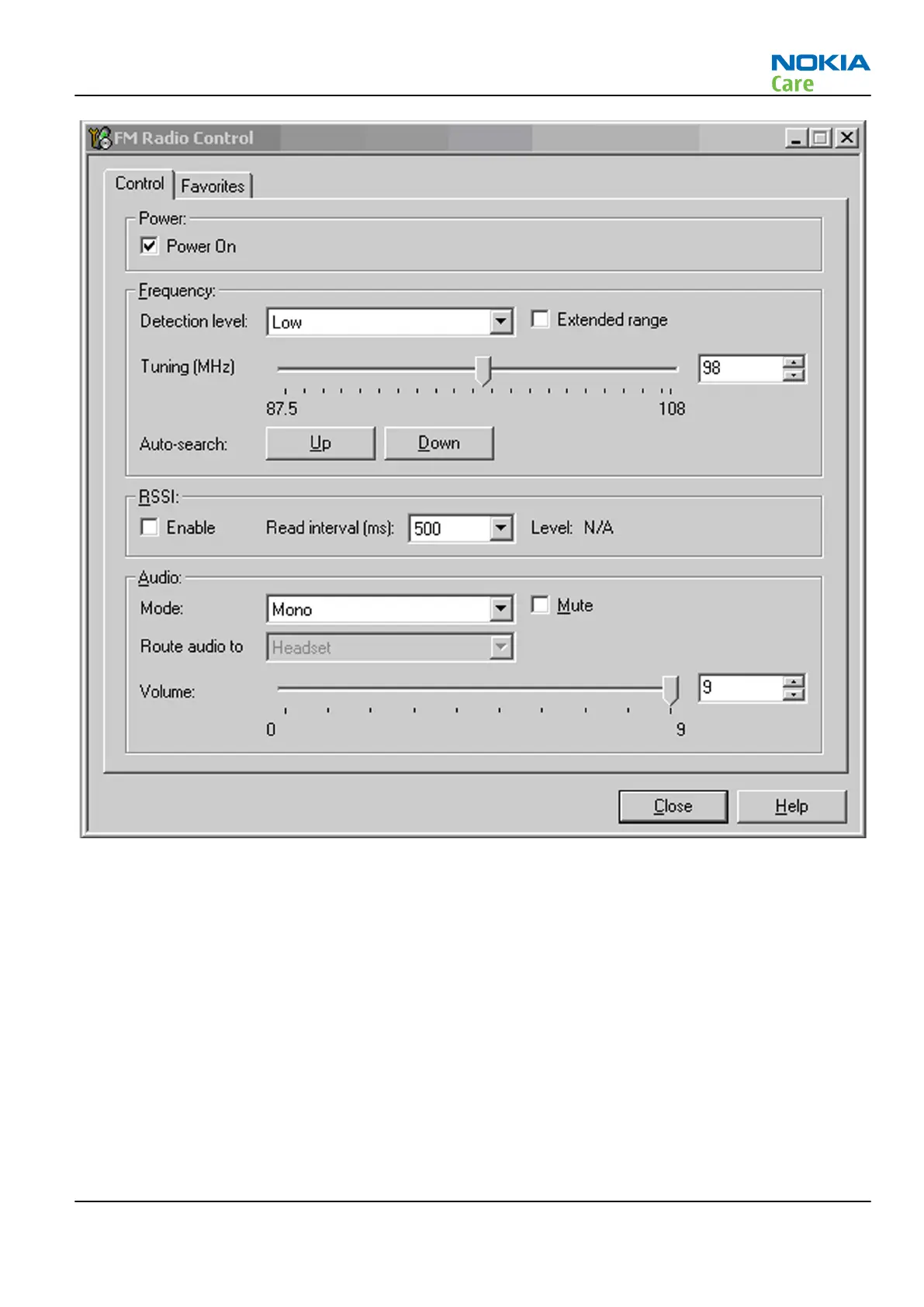

Figure 82 Phoenix settings
4. Establish input of a standard FM signal to the FM module.
5. Signal generator settings shall be as follows:
i Frequency: 98 MHz
ii Level: - 60 dBm
iii FM deviation: 75 kHz
iv LFGEN frequency: 1 kHZ
RM-340; RM-341
RF Troubleshooting Instructions
Issue 1 COMPANY CONFIDENTIAL Page 4 –49
