Z7603 EGSM 850/900 TX filter
Z7604 DCS 1800/PCS1900 TX filter
B7600 26 MHz crystal
N6000 BT & FM IC
Z6000 BT SAW filter

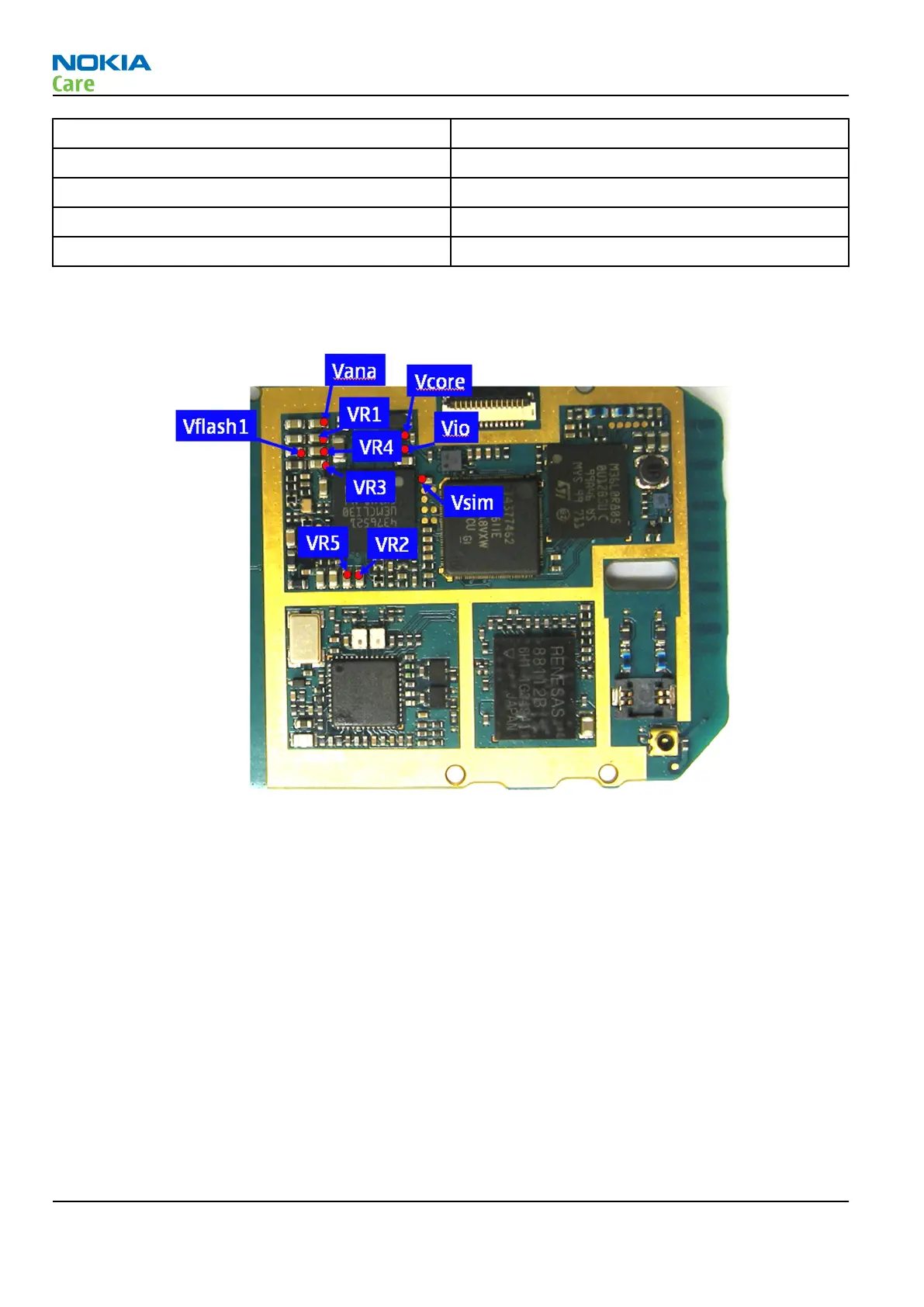

Refer to the picture below for measuring points at the UEM (D2200).
Figure 30 Supply points at UEM (D2200)
RM-340; RM-341
RF Troubleshooting Instructions
