finger. Ensure that the surface where you attach the pad is dry and free
from dirt and dust.

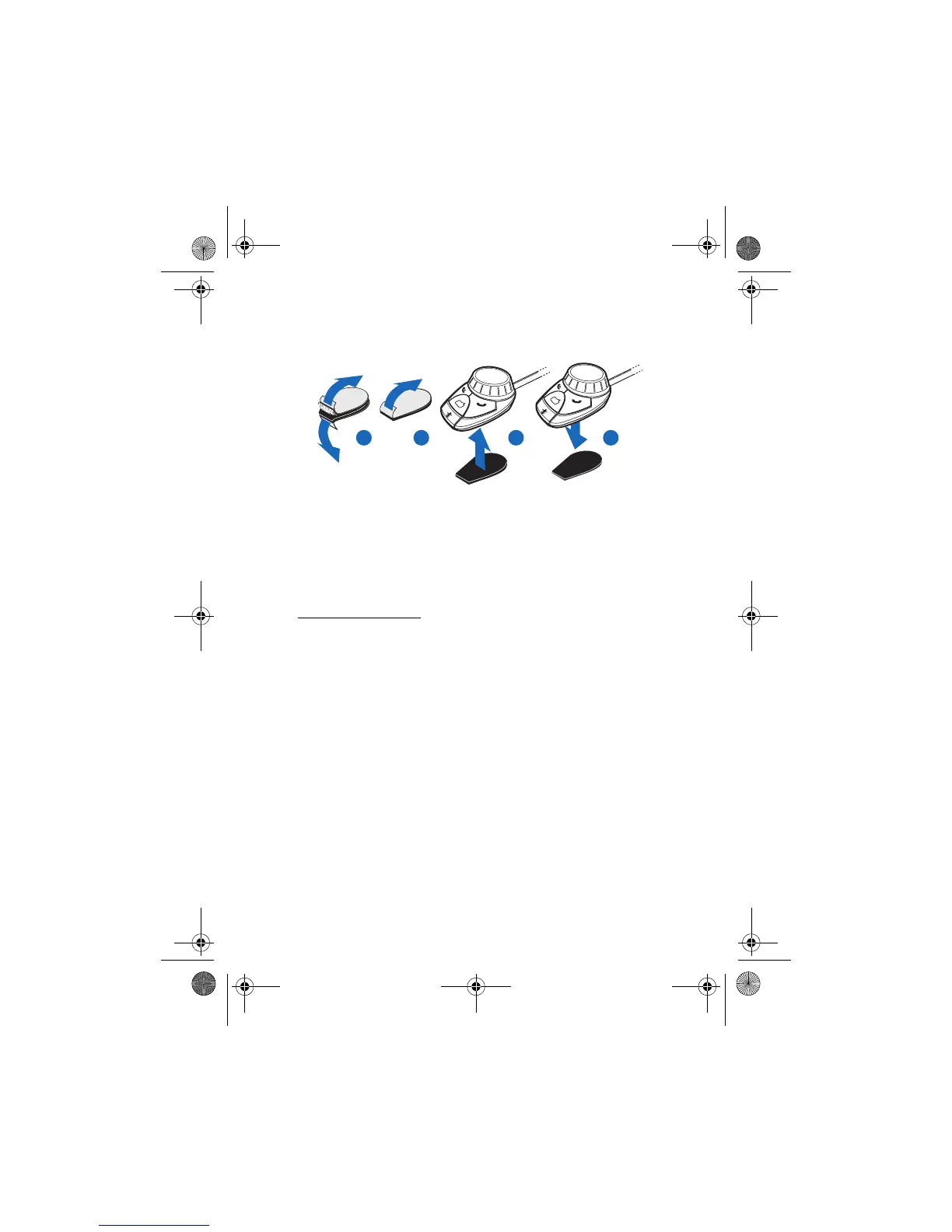

Attach the pad with the hooks: peel off the protective sheet from the
adhesive side (2), and attach the pad to the underside of the input
device (3).
Press the input device (4) firmly onto the loop pad, and check that the
input device stays securely in place.
Display unit SU-29
The display unit should be located so that it is clearly visible for the user
and it can be easily rotated to left, right, up, or down.
When installing the display unit, ensure that it does not interfere with or
hinder the steering or braking systems or other controls or systems used
in the operation of the vehicle (for example, airbags).
Ensure that the display unit cable reaches to the hands-free unit for
connection. Mount the display unit on the dashboard in the upright
position.
To mount the display unit, use the adhesive at the bottom of the display
stand or the supplied screws. To use the adhesive, peel off the protective
sheet from the adhesive, and attach the display unit firmly to the
dashboard. When you peel off the protective sheet, do not touch the
adhesive with a finger. Ensure that the surface where you attach the
display unit is dry and free from dirt and dust. To use the supplied
screws, ensure that drilling bore holes into the dashboard does not
2
1
3
4
