Nokia Flexi Zone Micro High Power 2x20 W BTS - Figure 13 Disassembling the Mounting Bracket; Figure 14 Fixing the Interface Bracket

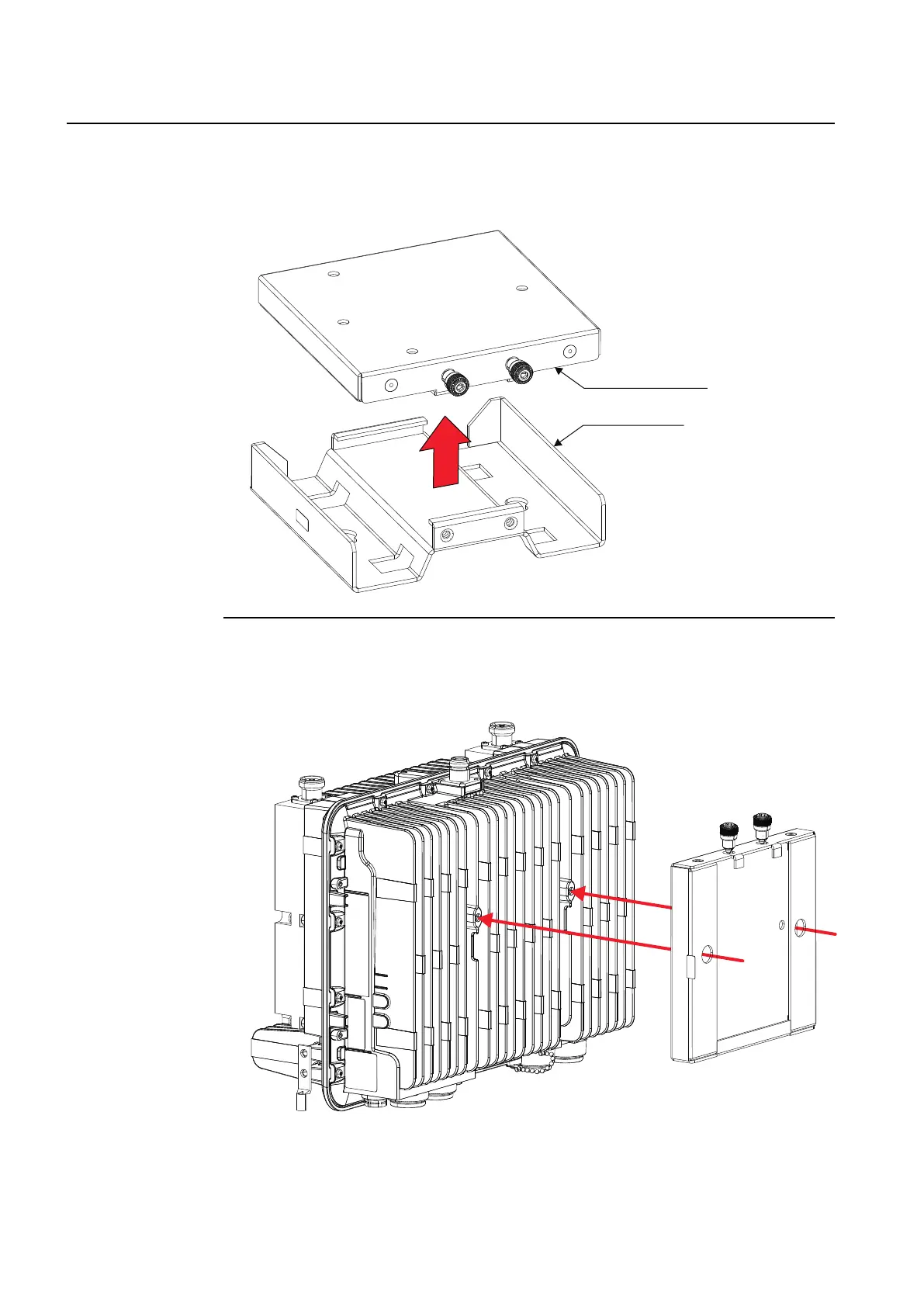

Figure13
Disassemblingthemountingbracket
Interfacebracket
Staticbracket
2 Fix the interface bracket to the Flexi Zone Micro BTS using two M6 cap screws
and washers included with the mounting bracket.
Tightenthescrewsto5.1Nm(3.8ft-lb).
Figure14
Fixingtheinterfacebracket
