Nokia Flexi Zone Micro High Power 2x20 W BTS - Figure 15 Threading the Straining Straps; Figure 16 Installing the Installation Plate to the Pole

3 Thread the straining straps to the static mounting bracket.

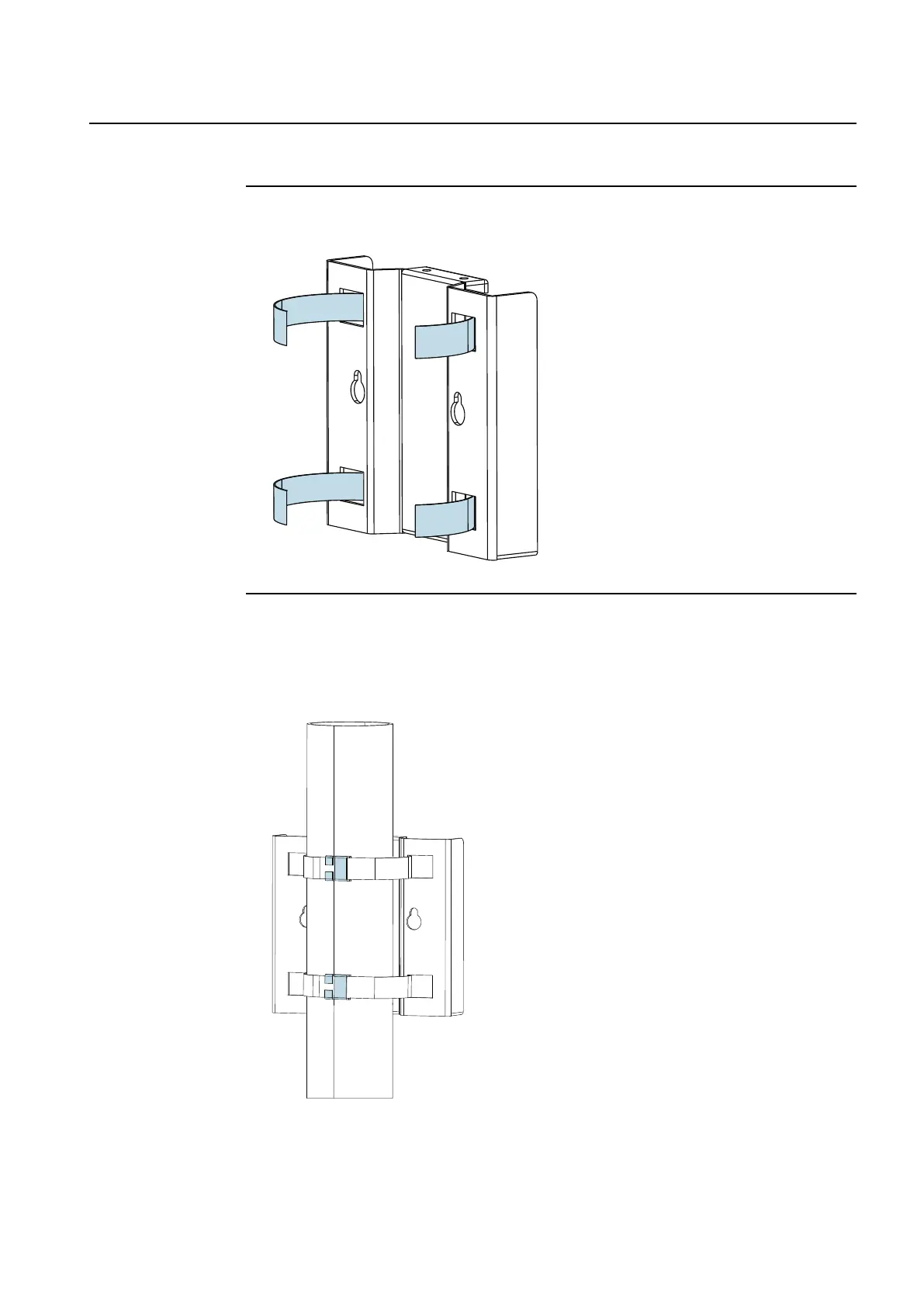

Figure15
Threadingthestrainingstraps
4 Install the static mounting bracket to the pole with the straining straps.
g
Note: Thestrapsshouldbetightenedandsecuredaccordingtothestrap
manufacturer’sinstructionsandthebracketshouldbesecureandimmovable.
Figure16
Installingtheinstallationplatetothepole
InstallingandCablingFlexiZoneMicroHighPower
2x20WBTS
