Norac Apache UC7 - Page 26

WWW.NORAC.CA
PRECISIONDEFINED


Page23
Visitwww.solutions.norac.caformoresystem
installationandtroubleshootinginfo.


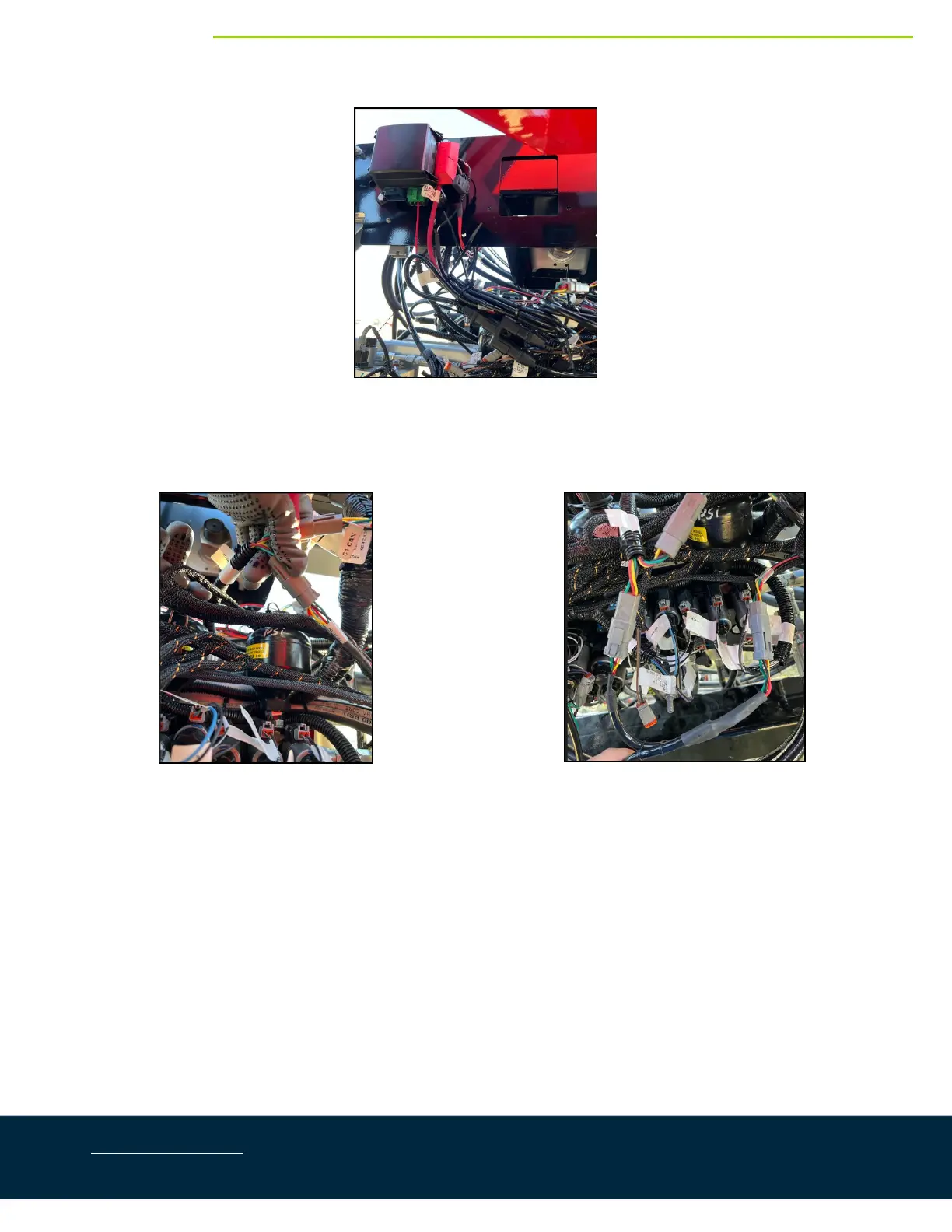

Figure35:PowerStudLocation
4. Connect cable C35 to the 3‐way coupler (E10). Tee the CANbus interface cable (C35) into the sprayer
CANbusattherearofthemachine.


Figure36:CANbusInterfaceLocation
