DC558
4
www.norcold.com
Refrigerator Information Label
NOTE: The actual refrigerator label specifi es the features
applicable to that unit.
A. Serial Number
B. Model Number
C. Group Code
D. BTU/h
E. Amount of refrigerant in cooling unit
F. AC Voltage/amperage
G. DC Voltage/amperage
xxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
D
E
S
I
G
N
C
E
R
T
I
F
i
E
D
NORC OLD
SA
Serial Number
Model Number
x.xx
LBS.
test pressure
xxx VOLTS - AC xx HZ
x.xx AMPS xxx Watts
xx VDC xx HZ
x.x AMPS xx xx Watts
G
roup Code
Input Pressure
BTUH
Refrigerant
x
x
x
x
xx
x
x
x
x
x
x
x
xx
x
x
x
x
x
x
x
x
x
x
x
x
A
B
C
D
E
F
G

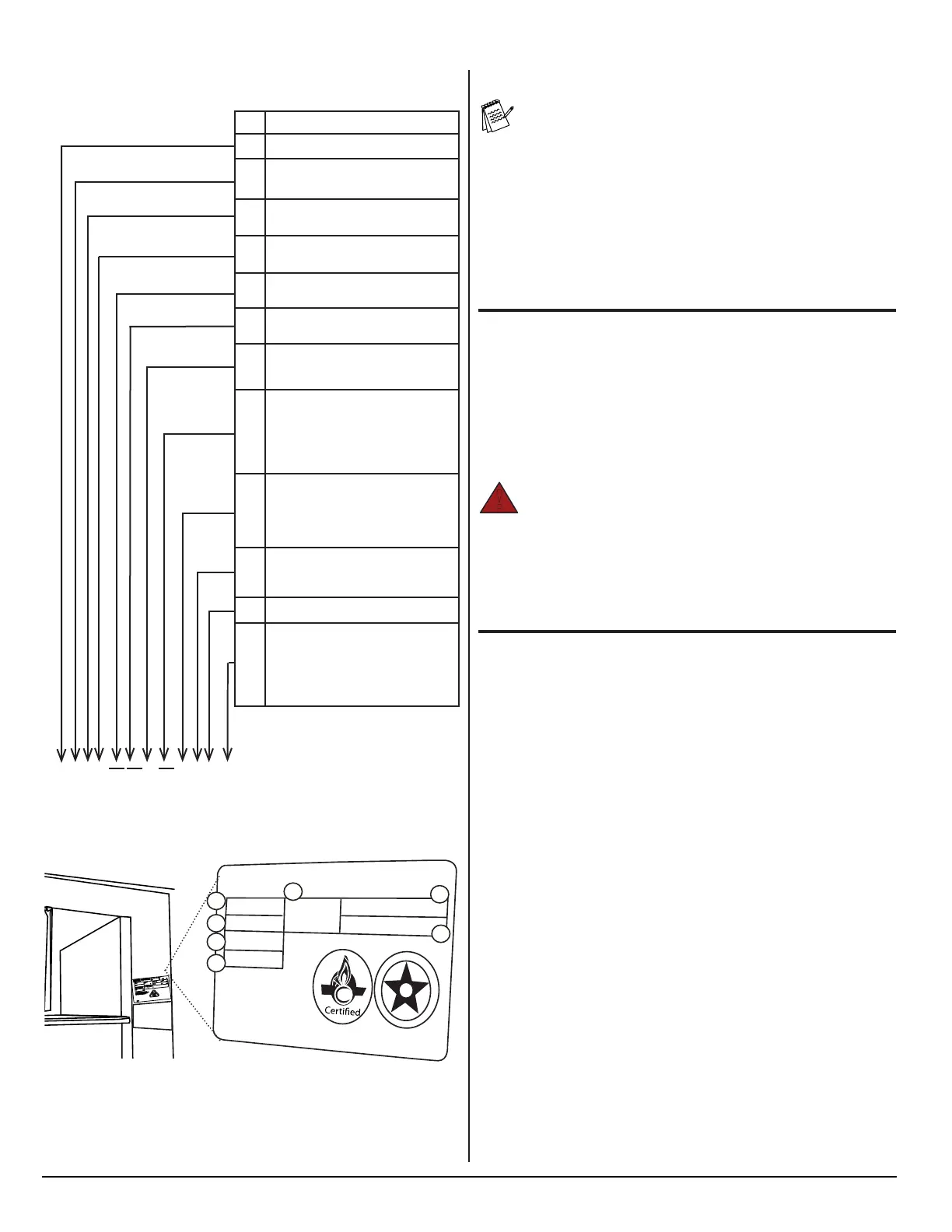

Fig. 3 - Refrigerator Information Label Location
Model Identifi cation, cont'd.
Fig. 2 - Model Number
Model Number
Specifi cations
Enclosure Dimensions
... 42.63 - 42.69 in. high x 23.69 - 23.82 in wide x 22 in. deep
DC Power Requirements
12 VDC ................................... 9.6 volts min - 17.0 volts max.
24 VDC ................................ 23.8 volts min. - 27.0 volts max.
Fuse............................................................................15 Amp
Fan-Cooling (2x) ......................................................0.92 Amp
Compressor Amp Draw .......................3.5 Amps @13.5 VDC
Controls
ON/OFF/TEMP SET switches .................................... Manual
Temperature setting range.........0=OFF, 1=cold, to 5=coldest
Temperature sensing devices ..............Capillary Tube Sensor
Temperature Sensor ........................Mechanical Thermostat
Off-level Operating Limits
Side-to-side ...................30 degrees maximum at refrigerator
Front-to-back .................30 degrees maximum at refrigerator
General Information
To confi rm that installation is adequate, check for:
■ Adequate ventilation - refer to "Ventilation Requirements."
■ Both gas and electrical components installed and operating in a
safe condition.
■ Adequate seal between refrigerator mounting fl ange and cut-out
opening.
■ Installed on a solid fl oor (not on carpet) and secured.
WARNING! This refrigerator is not intended to be operated
as a free standing unit (i.e. where the products of combustion are not
completely isolated from the living area) or installed in such a way as to
confl ict with these installation instructions. Unapproved installations could
result in safety risks or performance problems.
!
Explanation
1 N = Norcold
2 X = Sequence number indicating
custom features / aftermarket XA
3 3 = Approximate storage volume in
cubic feet
4 X = Sequence number indicating
custom features
5 Blank = 2-Way Model
.3 = 3-Way Model
6 Blank = Without icemaker
IM = With icemaker
7 Low Ambient Operation:
Blank=Not equipped
C=Is Equipped
8 Door design:
Blank = Insert panel
SS=Stainless steel wrapped
BK=Black wrapped
WH=White wrapped
WPM=Pewter Royce wrapped
9 Fan:
Blank=No fan
F = Equipped (1 Fan)
F2 = Equipped (2 Fans)
J = Equipped (1 High Velocity Fan)
10 Door swing:
L = Left-hand door swing
R = Right-hand door swing
11 P=Black acrylic door panels
12 Packaging Type:
Blank=Corrugated packaging
T = Returnable packaging
M4 = 4-unit multi-pack
M6 = 6-unit multi-pack
M8 = 8-unit multi-pack
NX3X .3 IMCBK FRPT
