Exploded View - SCQT4408
NOTE:
Refer to the Parts List for complete list and details.
No. Description
1 Cooling Unit with Evaporator
2 Holder
3 Evaporator Thermistor
4 Fan Motor
5 Power Supply
6 Control Assembly
7 Evaporator Frame Mark
8 Dial Assembly
9 Spacer
10 Support

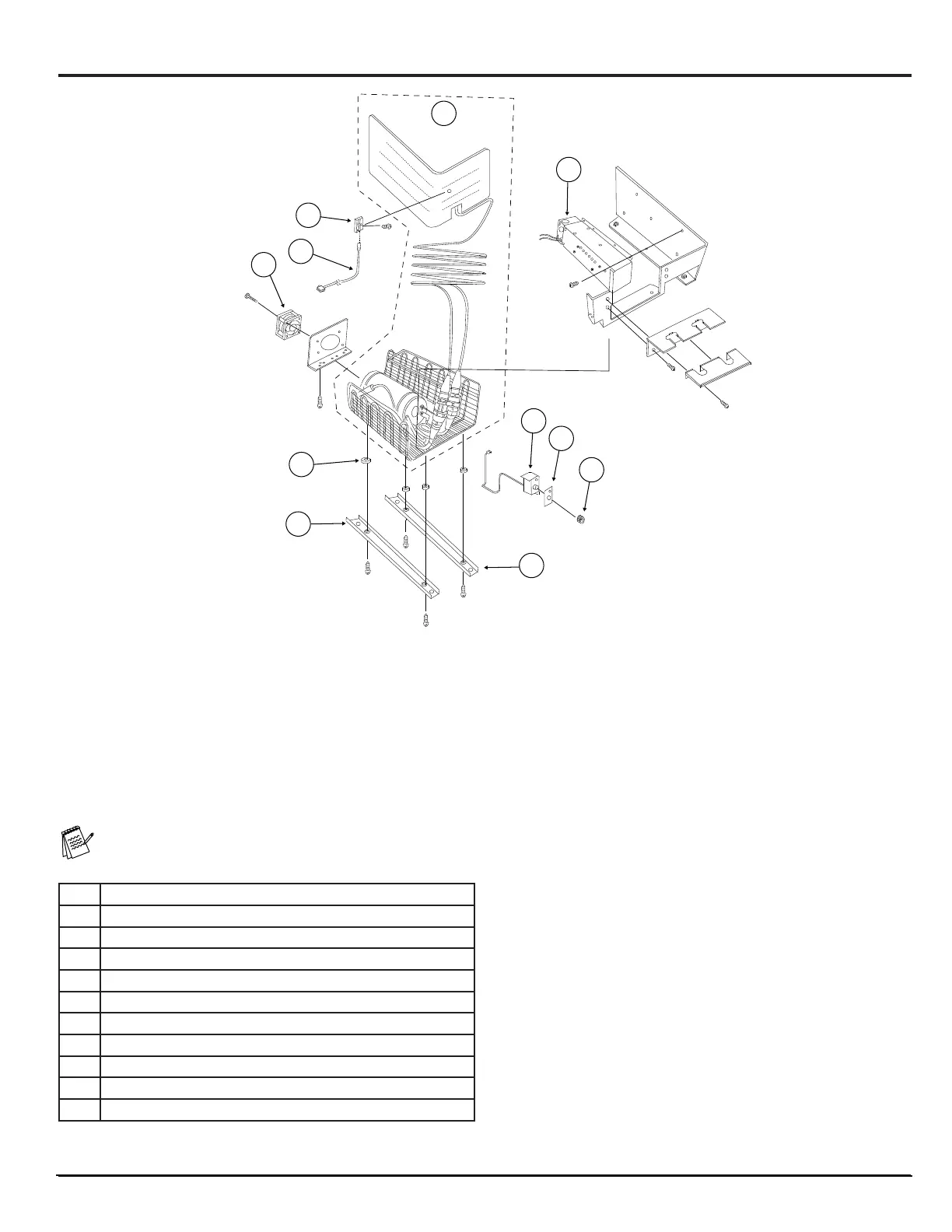

Fig. 4 - Exploded View - SCQT4408
1
Art02321
6
7
10
2
4
8
10
3
5
9
