Norcold N1152 - Exploded View

Exploded View

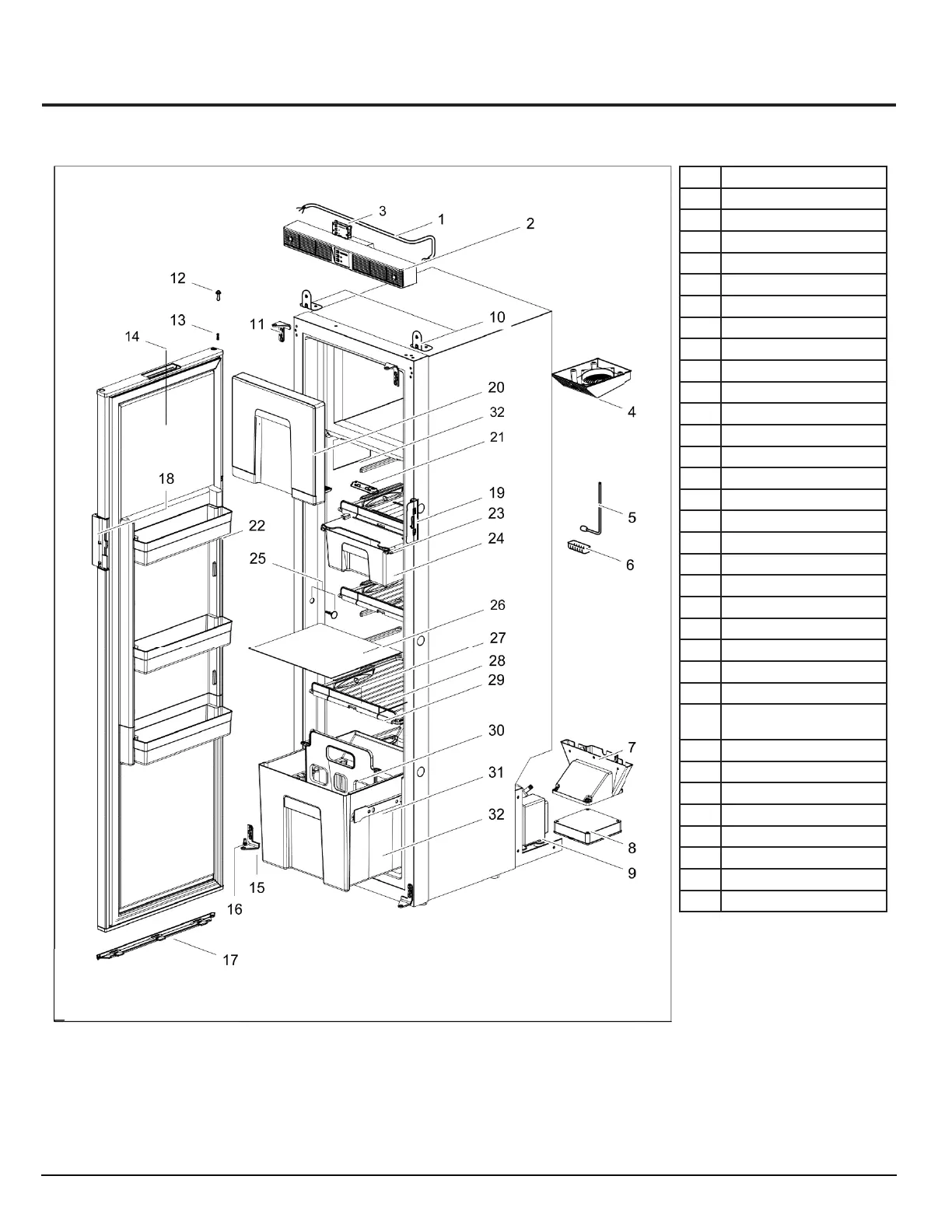

Fig. 2 - Exploded view
No. Description
1 Power Cord
2 Control Housing
3 Control PCB
4 Internal Fan
5 Thermistor
6 Thermistor Cover
7 Condenser Fan Cover
8 Condenser Fan
9 Control Module
10 Control Housing Bracket (2x)
11 Hinge Plate - Upper
12 Hinge Pin - Upper
13 Hinge Spring
14 Cabinet Door
15 Hinge Plate - Lower
16 Hinge Pin - Lower
17 Panel Retainer - Lower
18 Door Handle
19 Door Lock Plate
20 Freezer Door
21 Internal Lamp Cover
22 Door Bin (3x)
23 Cover Slide Out Box
24 Slide Out Box
25 Cap (4x)
Screw (4x)
26 Plate
27 Shelf Clip
28 Shelf
29 Shelf Food Retainer
30 Drawer Divider
31 Drawer Guide (R and L)
32 Drawer
33 Model Identification Label
