Norcold N611v - Optional Heater and Fault Codes; Low Ambient Heater Wiring

Installation and Owner’s Manual 10
Replacement Parts
You may purchase replacement parts through your local RV dealer or authorized Norcold Service Center.

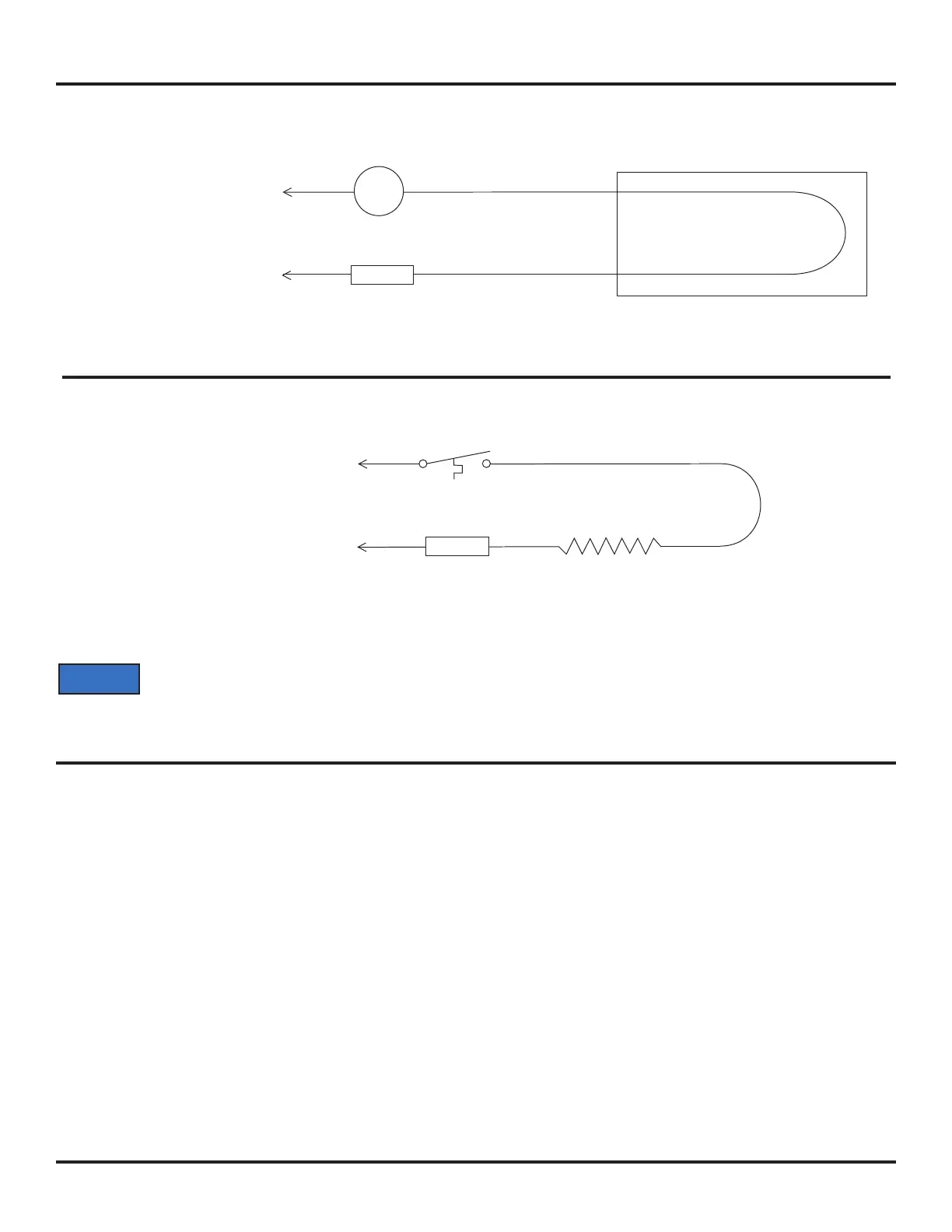

Wiring Diagram and Pictorial - Low Ambient Heater (optional)
+12VDC/12VCC
12VDC GND /12VCC MASSE
FUSE 3 AMP /
FUSIBLE 3 AMP
THERMAL SWITCH /
CONTACTEUR DE THERMIQUE
RESISTANCE HEATER /
RÉCHAUFFEUR DE RÉSISTANCE
BR/BR
BK/NR
RESISTANCE HEATER /
RÉCHAUFFEUR DE RÉSISTANCE
+12VDC/12VCC
12VDC GND /12VCC MASSE
FUSE 3 AMP /
FUSIBLE 3 AMP
THERMAL SWITCH /
CONTACTEUR DE THERMIQUE
BK/NR
BR/BR
Art02312
This kit supplies DC voltage to the heater any time the ambient temperature is low enough. Extended storage during
cold weather will drain the vehicle batteries. To prevent battery drain, remove the 3 amp fuse from the low ambient
heater.
