Installation and Owner’s Manual 13

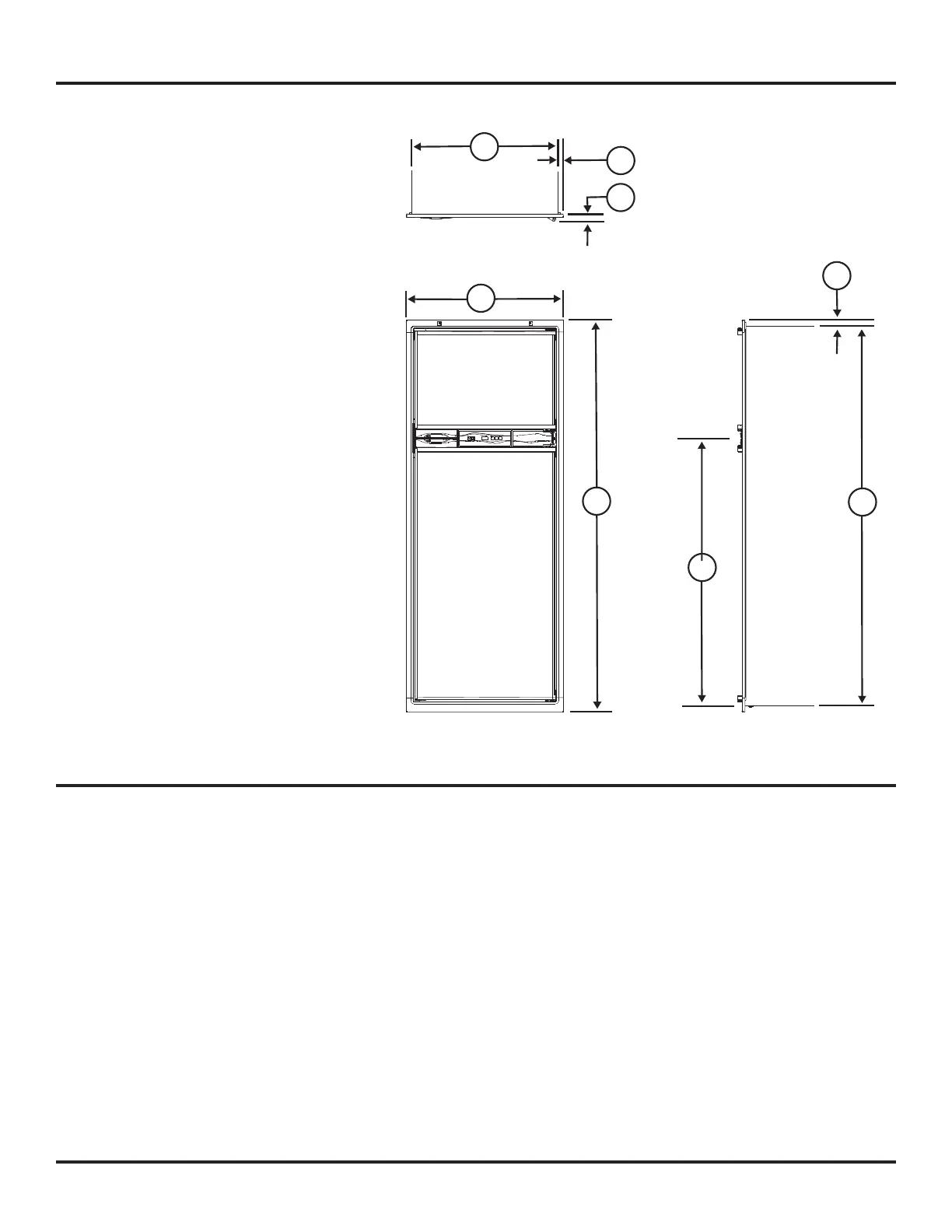

Key Refrigerator Dimensions
These key refrigerator dimensions are for your reference as necessary (See Art01733).
Refrigerator cabinet width w/o trim:
23.47 in. max. .................................................. 1
Refrigerator width overall w/ trim:
24.6in............................................................... 2
Refrigerator cabinet to side trim:
0.80 in.............................................................. 3
Refrigerator cabinet height w/o trim:
N600 models - 52.85 in. max. ......................... 4
N800 models - 59.85 in. max. ......................... 4
Refrigerator height overall w/ trim:
N600 models - 54.5 in. .................................... 5
N800 models - 61.5 in. .................................... 5
Refrigerator cabinet to top/bottom trim:
0.93 in.............................................................. 6
Enclosure wall to hinges:
1.10 in.............................................................. 7
Refrigerator cabinet to center of handles:
N600 models - 32.5 in. .................................... 8
N800 models - 39.5 in. .................................... 8
Assemble the Enclosure for the Refrigerator
1. Make sure the enclosure is 59.88 - 60.01 inches high for N81X models or 52.88 - 53.01 inches high for N61X models x 23.50 -
23.63 inches wide x 24 inches deep.
2. Make sure the oor is solid and level.
- The oor must be metal or a wood panel and extend the full width and depth of the enclosure.
- The oor must be able to support the weight of the refrigerator and its contents.
3. Make sure there are no adjacent heat sources such as a furnace vent, a hot water heater vent, etc.
4. If there is more than 1/2 inch between either side of the refrigerator and the inside of the enclosure:
- Fill the space with berglass insulation or add a bafe to eliminate the excess clearance.
- Make sure that the rear of the batt-type insulation is between 18 - 19 inches from the face of the enclosure.
- Securely attach the batt-type insulation to the enclosure so that it remains in this position during refrigerator installation, if it
becomes wet, and in windy conditions.
Art01733
1
8
7
5
6
4
3
2
