- Install two bafes [13] to prevent stagnant hot air in the area [14] above the refrigerator.
- Make sure the bafes are the full width of the inside of the enclosure.
- Make sure that the bafes are no more than 45° from vertical [20].
- Put one bafe between the top rear edge of the refrigerator and the inside edge of the upper exhaust vent opening.
- Put the other bafe between the outside edge of the upper exhaust vent opening and the side wall of the vehicle.
- If the depth of the enclosure is 24 inches or more and is less than 25 inches, no bafes are necessary at the rear of the enclosure.
- If the depth of the enclosure is 25 inches or more and is less than 26 inches, add two bafes [16] to the rear of the enclosure (See
Art01598 and Art01599).
- Put one bafe 18 inches to 18 1/2 inches above the bottom of the enclosure [17].
- Put the other bafe at the lowest edge of the condenser [11] of the refrigerator.
- Make sure that the bafes are 1 inch or less [19] from the coils [10] and condenser of the refrigerator.
- Make sure that the bafes are the full width of the inside of the enclosure.
- If the depth of the enclosure is more than 26 inches, install a wood or an aluminum or galvanized sheet solid box bafe [21] in the
rear of the enclosure (See Art01617-1 and Art01618-1).
- Make sure that the bottom of the solid box bafe is 18 inches to 18 1/2 inches above the bottom of the enclosure [17].

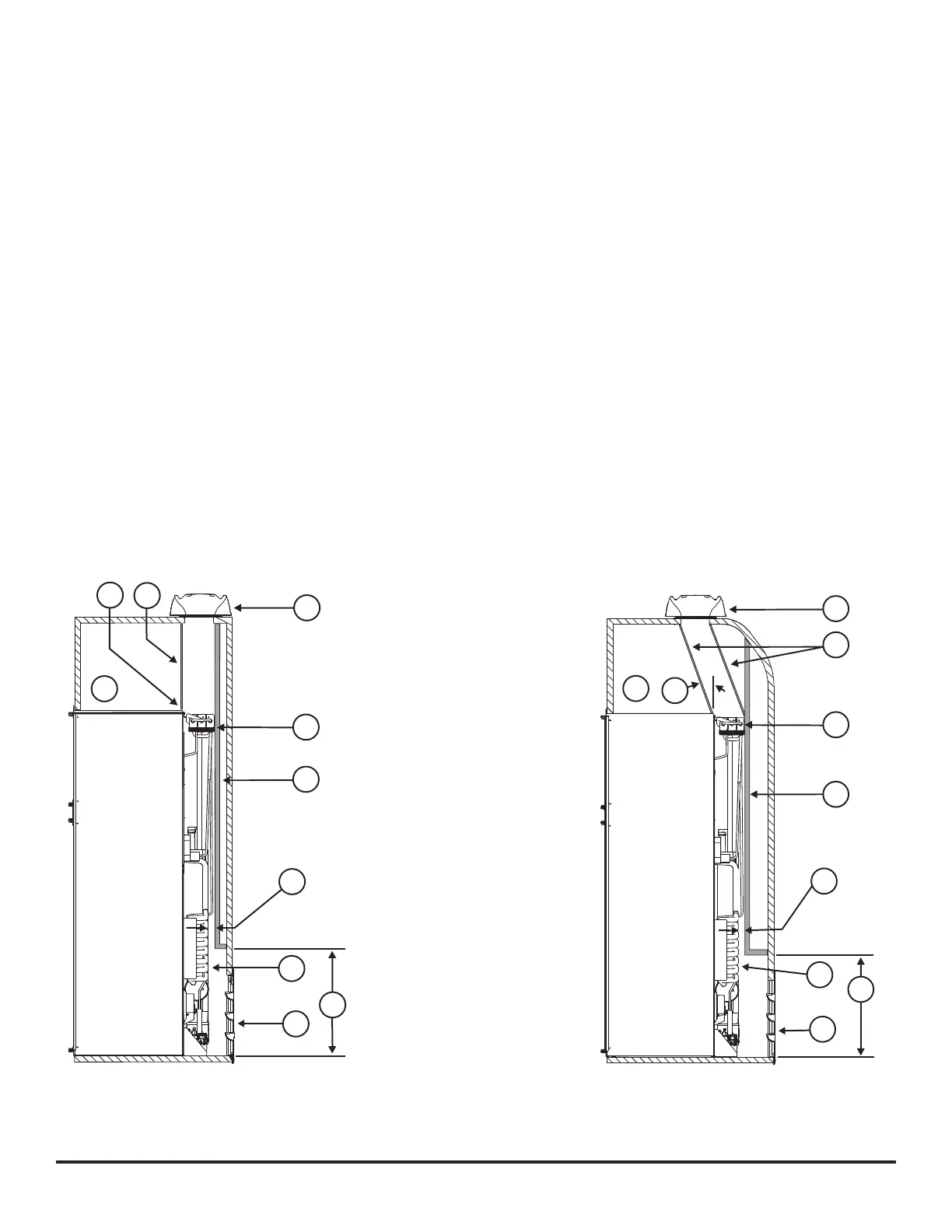

Art01617-1
14
15
13
12
19
11
21
17
10
9
Art01618-1
14
20
12
13
11
19
21
17
10
9
