3. Storage, Preparation,
Installation
www.nord.com B1000 -13-

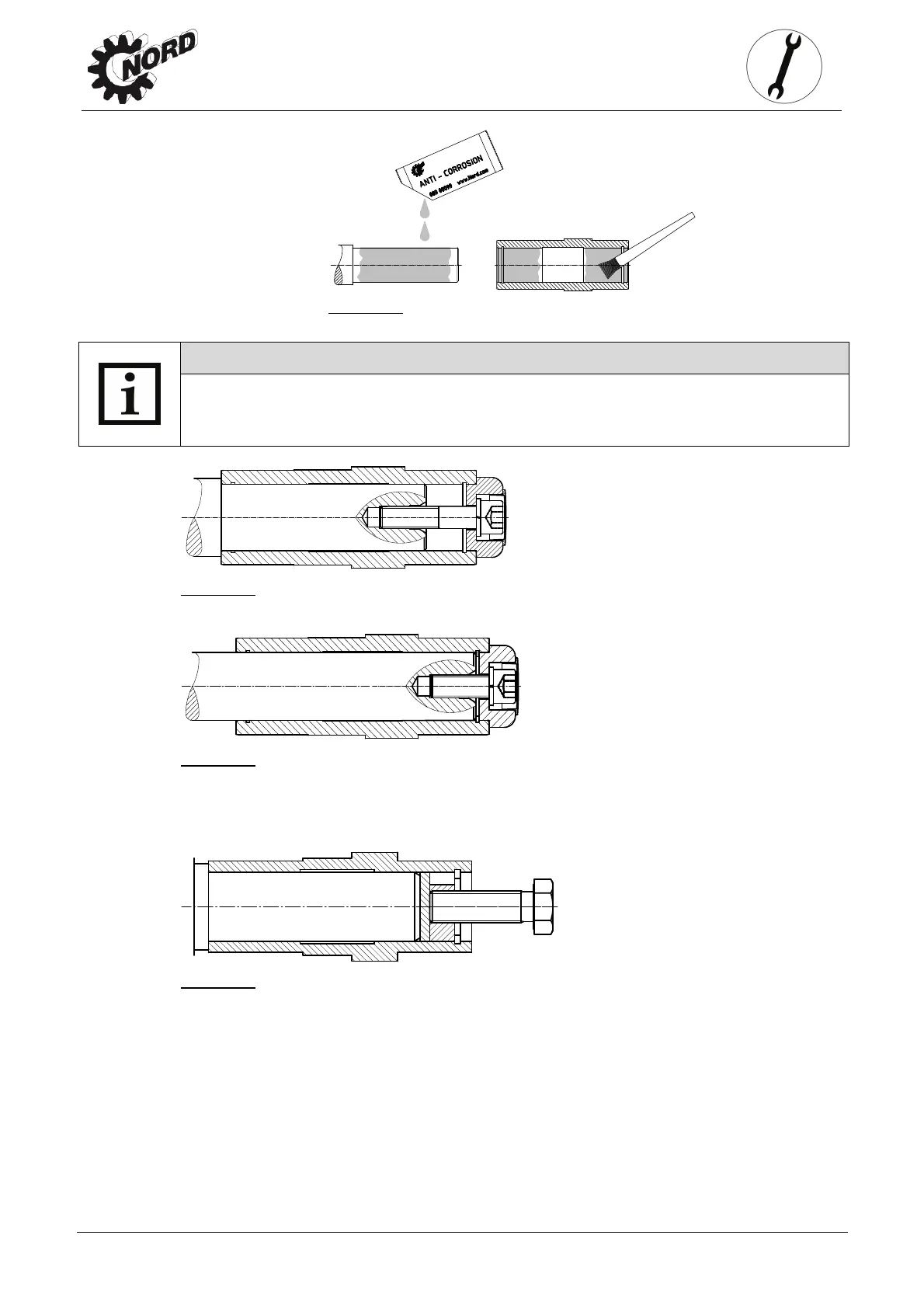

Figure 3-4:
Applying lubricant to the shaft and the hub
Note!
The gear unit can be fitted to shafts with and without a shoulder using the fastening element
(Option B). Tighten the bolt of the fastening element to the correct torque. (See Chapter 6.2 for
torque values)
Figure 3-5:
Gear unit mounted to shaft with a shoulder using the fastening element
Figure 3-6:
Gear unit mounted to shaft without a shoulder using the fastening element
A gear unit can be dismantled from a shaft with shoulder using the following device, for example.
Figure 3-7:
Dismantling using dismantling device
When mounting push-on gears with torque supports, the support must not be distorted. Tension-
free mounting is aided by the rubber buffer (Option G and/or VG).
