2 Assembly and installation
BU 0280 GB Subject to technical amendments 15

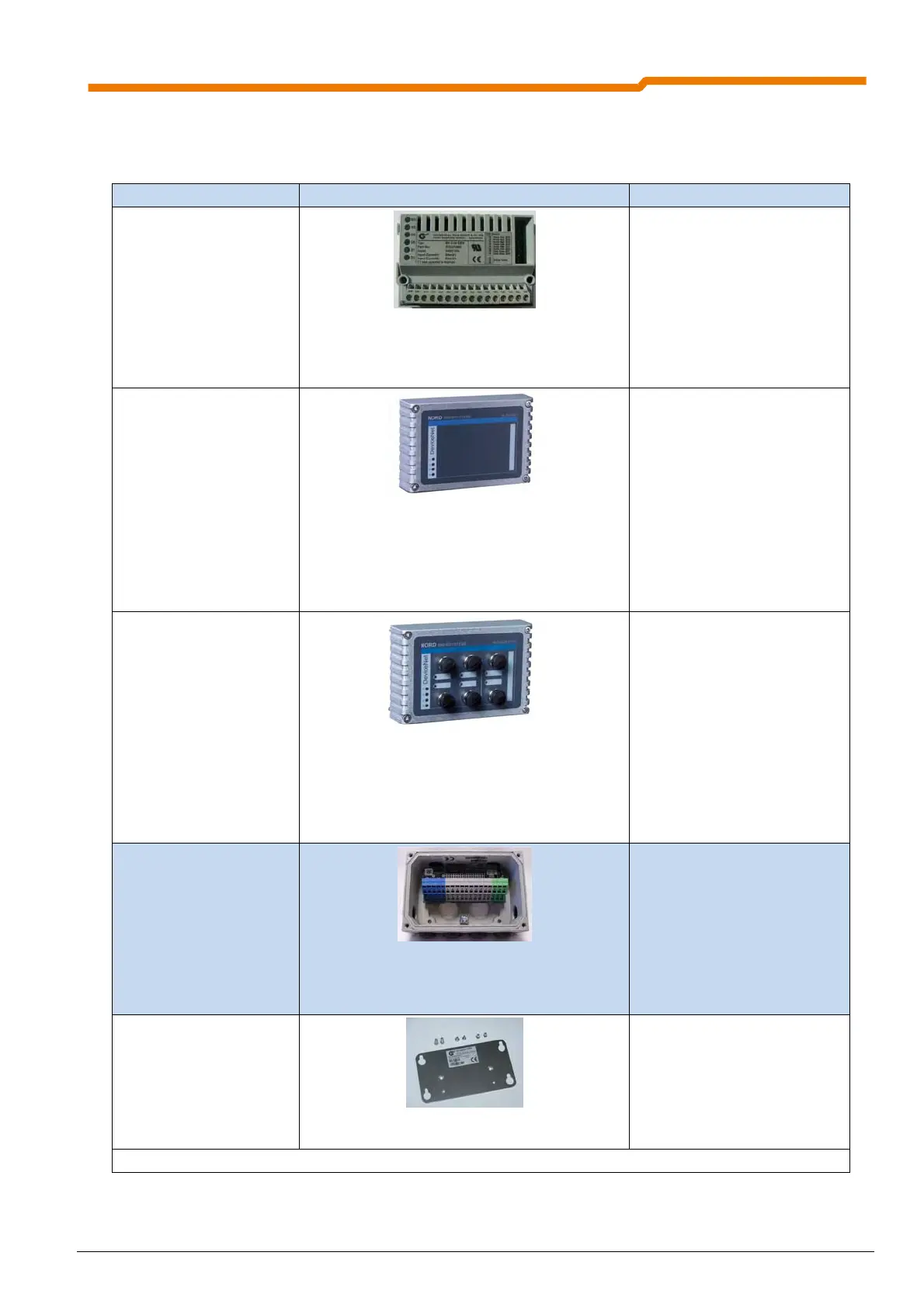

2.1.1 Features of DeviceNet modules
Bus Module
Description Data
DeviceNet module
SK CU4-DEV
Part No. 275271002 (IP20)
This option enables control of the NORDAC SK
200E via DeviceNet.
This option is integrated into the connection unit of
the frequency inverter.
Baud rate:
up to 500 kBaud
Connection:
16-terminal screw terminal bar
2x digital inputs:
Low: 0-5V, High: 11-30V
DeviceNet module*
SK TU4-DEV(-C)
Part No. 275281102 (IP55)
Part No. 275281152 (IP66)
This option enables control of the NORDAC SK
200E via DeviceNet.
This option is installed externally to the frequency
inverter.
According to the installation location, at least one
"BUS connection unit"* is required.
Baud rate:
up to 500 kBaud
Connection:
36 pin spring terminal bar of the
“ BUS connection unit” *
4x digital inputs:
Low: 0-5V, High: 11-30V
2x Digital outputs:
0/24V
DeviceNet module with
M12*)
SK TU4-DEV-M12(-C)
Part No. 275281202 (IP55)
Part No. 275281252 (IP66)
This option enables control of the NORDAC SK
200E via DeviceNet.
This option is installed externally to the frequency
inverter.
According to the installation location, at least one
"BUS connection unit"* is required.
As for SK TU4-DEV(-C) but with
additional:
6x M12 sockets for the
connection of up to 4 sensors
and 2 actuators via 5 pin M12
round plug connectors (B coded)
Connection unit for TU4
SK TI4-TU-BUS
Part No. 275280000 (IP55)
Part No. 275280500 (IP66)
The connection unit is always required in order to
use an external technology unit (SK TU4...). This
implements the connection of the technology unit to
the SK 200E or the wall-mounting kit.
Connection:
36 pin spring terminal bar
36x 2.5mm
2
AWG 26-14
spring terminals
TU4 wall-mounting kit
SK TIE4-WMK-TU
Part. No. 275274002
With the wall mounting kit, a technology unit can be
used/installed separately from the SK 200E.
*) in order to use the TU4 modules, a suitable SK TI4-TU-BUS connection unit must always be available!
