Supplementary Manual DeviceNet for NORDAC SK 200E
26 Subject to technical amendments BU 0280 GB
2.2.3 Configuration
The configuration for all DeviceNet module versions is identical. All necessary settings are made using the
hardware via a DIP switch element (3+8 part switching block).
Addressing
Note:
DeviceNet address: setting only via DIP switch in binary code
Permissible address range: 0 … 63
Address changes: only become effective after switching the BUS module off and on again
Termination resistor
The termination of the system bus for the first and last subscribers carried out by connecting the relevant
termination resistors (DIP switch).
According to the DeviceNet specification, termination resistors must be used at both physical ends of the bus
cable.

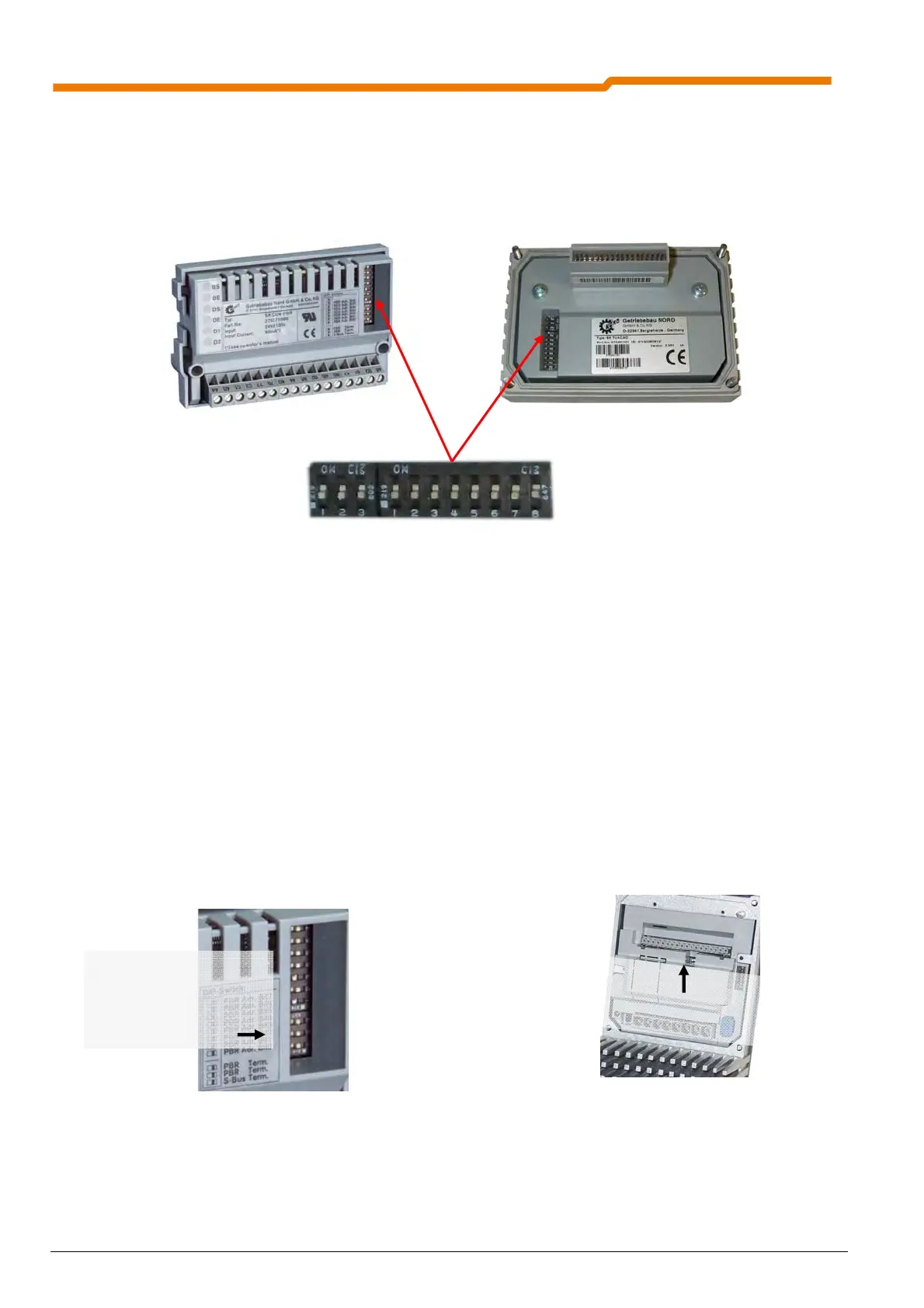

E.g.::SKCU4‐DEV E.g.: SK 200E
DeviceNetmodule(ViewofDIPswitch) SK 200E(Viewfromtheinside)
System bus
termination resistor
System bus
termination resistor
Customer UnitSK CU4-DEV Technology unitSK TU4-DEV
DIP switch 3 + 8 part
BUS termination Baud rate and addressing
