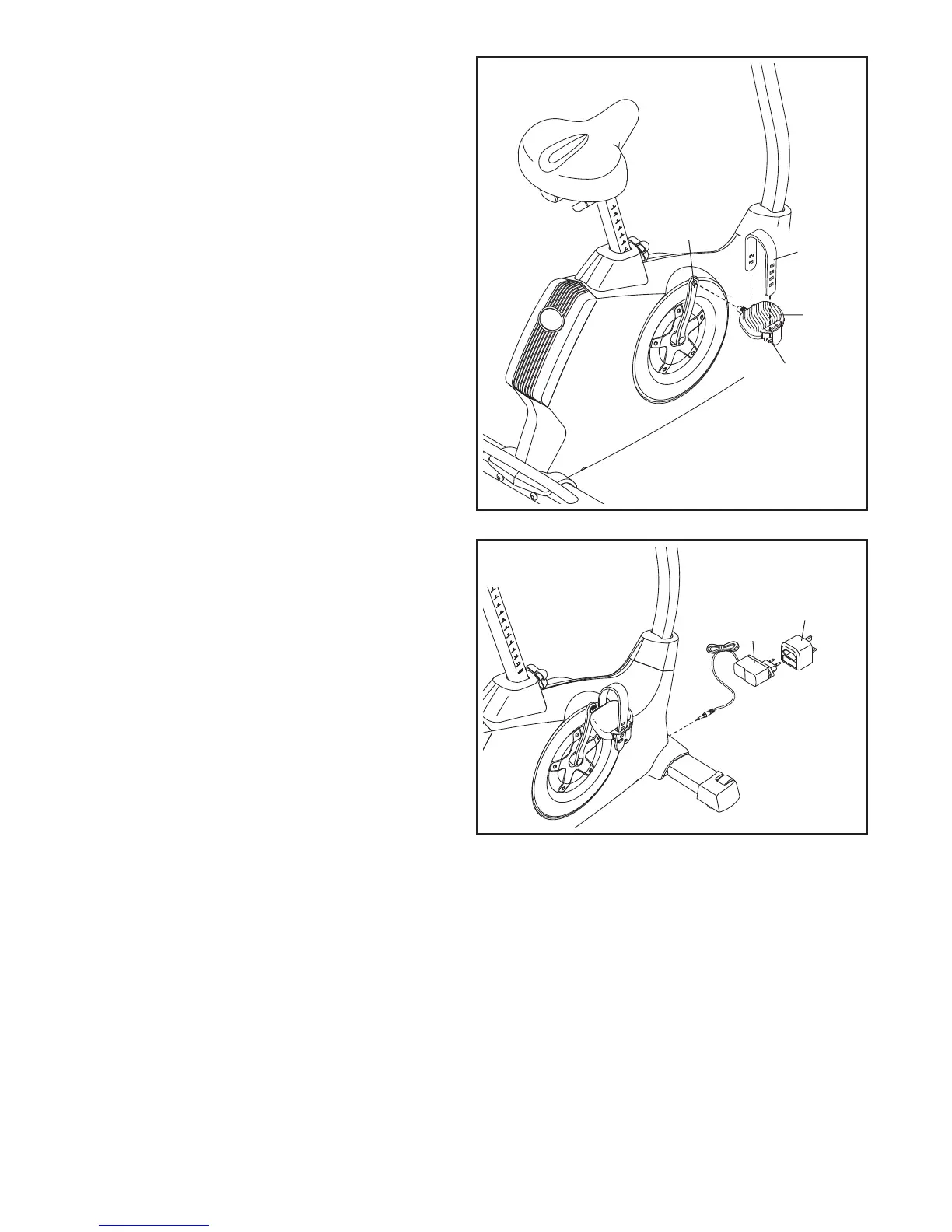

9. Identify the Right Pedal (21), which is marked
with an “R.”
U
sing an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right
C
rank Arm (19).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
Adjust the strap on the Right Pedal (21) to the
desired position, and press the ends of the
straps onto the tabs on the Right Pedal. Adjust
the strap on the Left Pedal (not shown) in
the same way.
19
Strap
Tab
21
10. Plug the Power Adapter (67) into the receptacle
on the frame of the exercise bike.
If necessary, plug the Power Adapter (67) into
the Plug Adapter (98).
To plug the Power Adapter (67) into an outlet,
see HOW TO PLUG IN THE POWER
ADAPTER on page 12.
67
98
11. Make sure that all parts are properly tightened before you use the exercise bike. Note: Some hard-
ware may be left over after assembly is completed. Place a mat under the exercise bike to protect the
floor or carpet.
