NordicTrack GX 4.1 User Manual

9
7

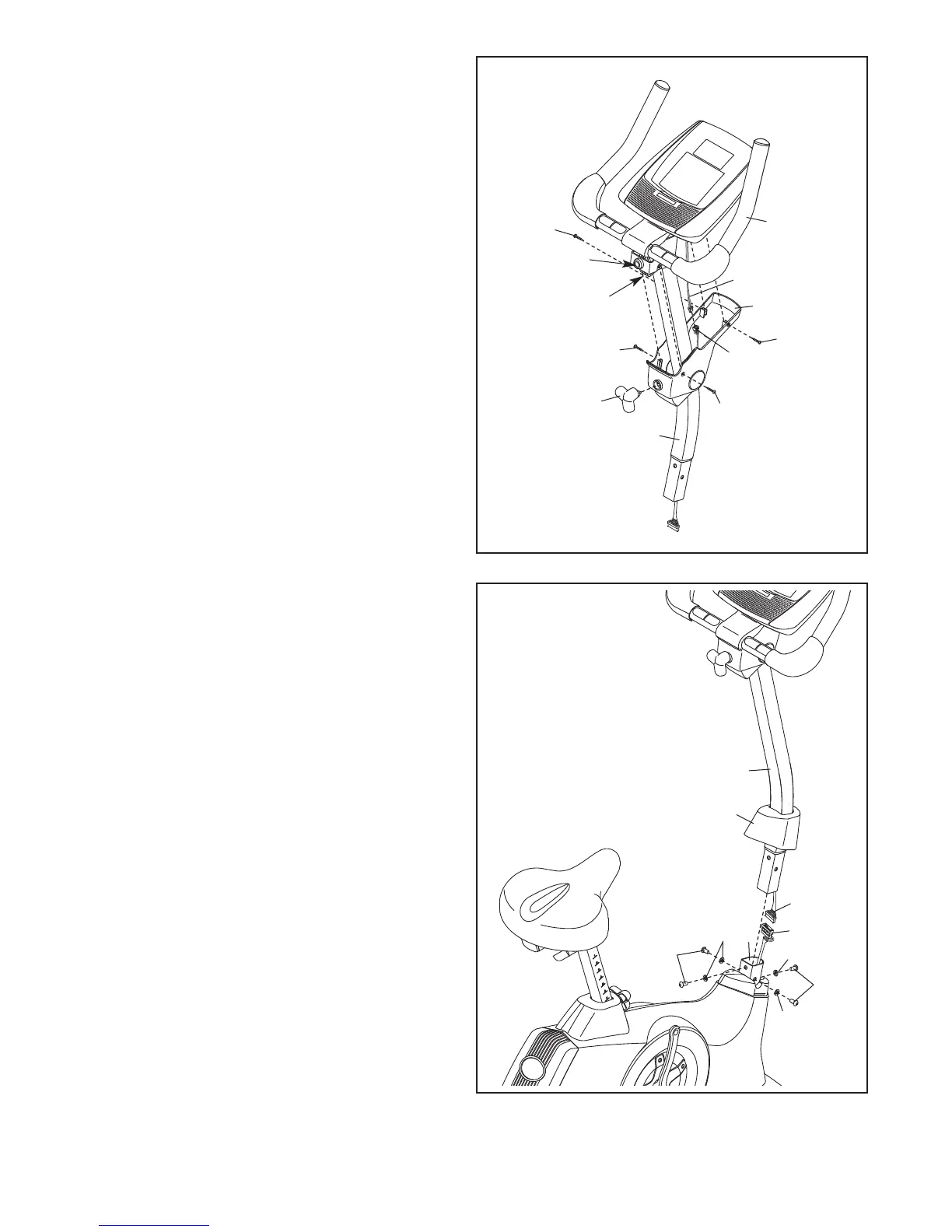

7. Orient the Upright (4) assembly and the Pivot
Cover (12) as shown.
S
lide the Pivot Cover (12) upward to the
Handlebar (5). Tip: Bend and flex the Pivot
C
over slightly to slide it over the Handlebar.
Avoid pinching the wires.
Connect the long receiver wire (A) to the
Receiver Wire (B).
Tip: Avoid pinching the wires. Attach the
Pivot Cover (12) to the Handlebar (5) with two
M4 x 16mm Screws (90) and two M4 x 22mm
Screws (94).
Pivot the Handlebar (5) until the hole in the
Handlebar is aligned with an adjustment hole in
the Upright (4).
Tighten an Adjustment Knob (27) into the
Handlebar (5) and an adjustment hole in the
Upright (4). Make sure that the Adjustment
Knob is engaged in one of the adjustment
holes.
4
12
A
B
94
94
90
90
27
Hole
Adjustment
Holes
5
8
75
75
75
74
74
58
59
8. Slide the Front Shield Cover (7) upward onto
the Upright (4).
While another person holds the Upright (4) near
the Frame (1), connect the Extension Wire (59)
to the Main Wire (58).
Insert the Upright (4) into the Frame (1).
Tip: Avoid pinching the wires. Attach the
Upright (4) with four M8 x 20mm Patch Screws
(74) and four M8 Split Washers (75).
Slide the Front Shield Cover (7) downward to
the Frame (1) and press it into place.
4
7
1
Avoid pinching
the wires
