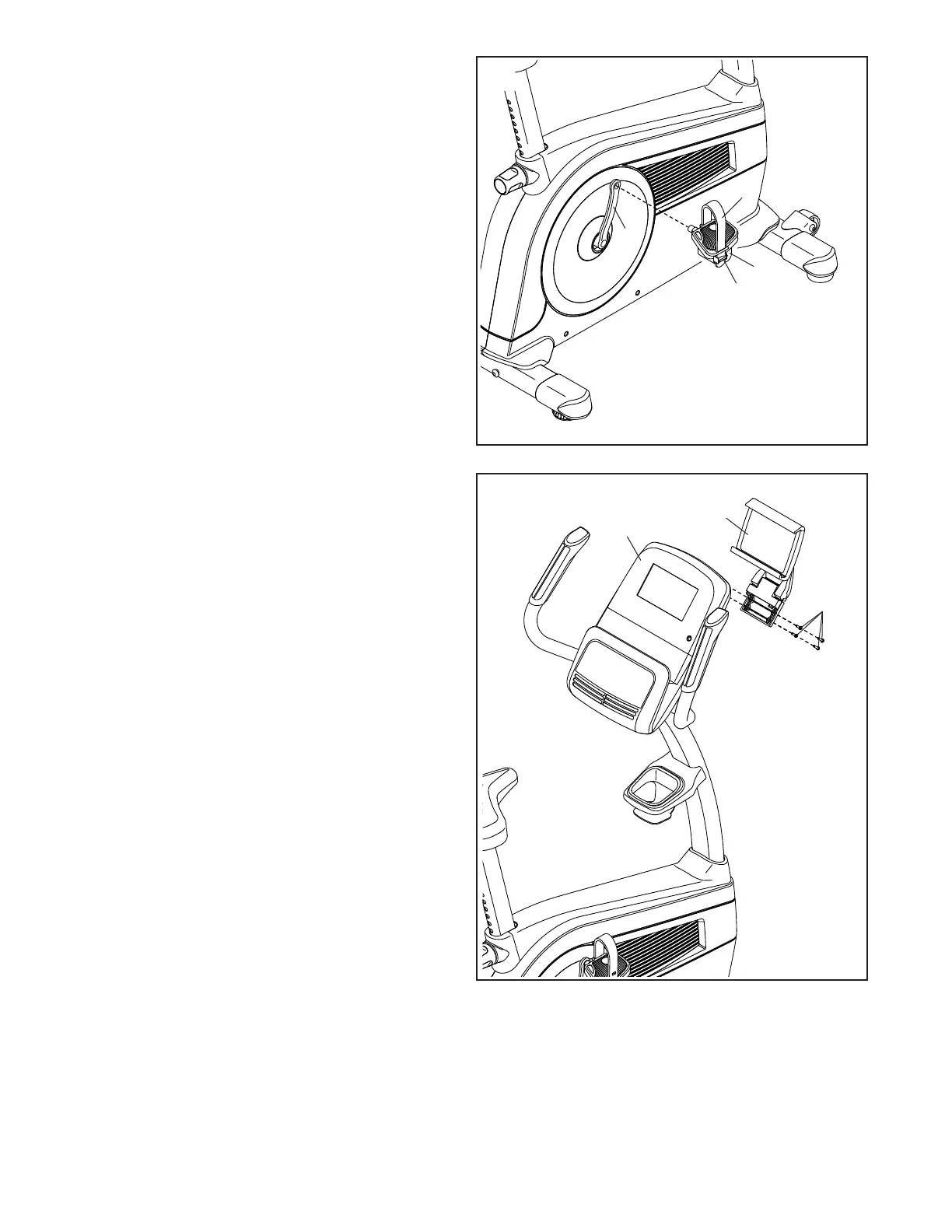

16. Identify the Right Pedal (21). Using an adjust-
able wrench, firmly tighten the Right Pedal
clockwise into the Right Crank Arm (19).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
To adjust the pedal straps (C), see HOW TO
ADJUST THE PEDAL STRAPS on page 17.
16
13
69
17
17. Attach the Tablet Holder (16) to the Console (13)
with four Tablet Holder Screws (69); start all the
Tablet Holder Screws, and then tighten them.
16
