Nordson 3000V Series - Installing Guns

Installation
A1-9
E 2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
This part of the installation section refers you to the correct installation
procedure for the type of gun you plan to install. Use Figure A 1-6 to
determine which type of gun you are installing, an air-operated gun, an
electric gun, or a hand-operated gun. Then refer to one of the following
procedures:
S To Install an Air-Operated Gun
S To Install an Electric Gun
S To Install a Hand-Operated Gun
NOTE: Air-operated and electric guns are also referred to as
automatic guns.
4130692

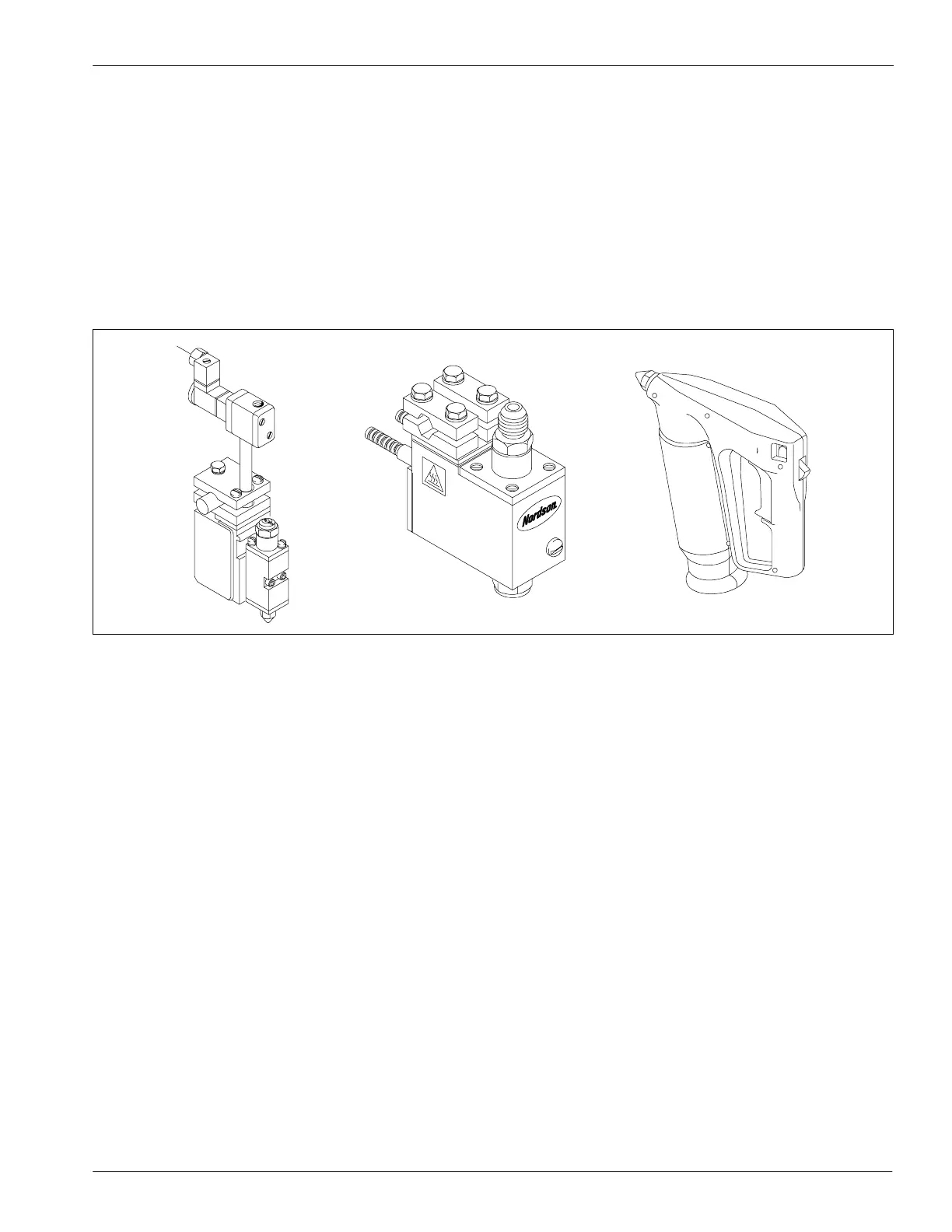

Fig. A 1-6 Air-Operated Gun (left), Electric Gun (center), and Hand-Operated Gun (right)
To Install an Air-Operated Gun
Follow the instructions in the manual shipped with the gun to complete
these procedures:
S Mount the gun on the production line.
S Install the gun solenoid valve.
S Connect air to the solenoid valve.
S Connect a triggering device to the solenoid valve.
S Connect a hose to the gun.
Instructions for connecting the hose and gun cordsets are given later in
this section. Refer to Connecting Gun and Hose Cordsets.
