Nordson 3000V Series - Connecting Electrical Service

Installation
A1-28
E 2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
Follow this procedure to connect electrical service to your unit.
1. Open the electrical enclosure. Refer to Opening the Electrical
Enclosure in this section.
2. See Figure A 1-18. Locate the identification plate on your unit.
4130690A
123456

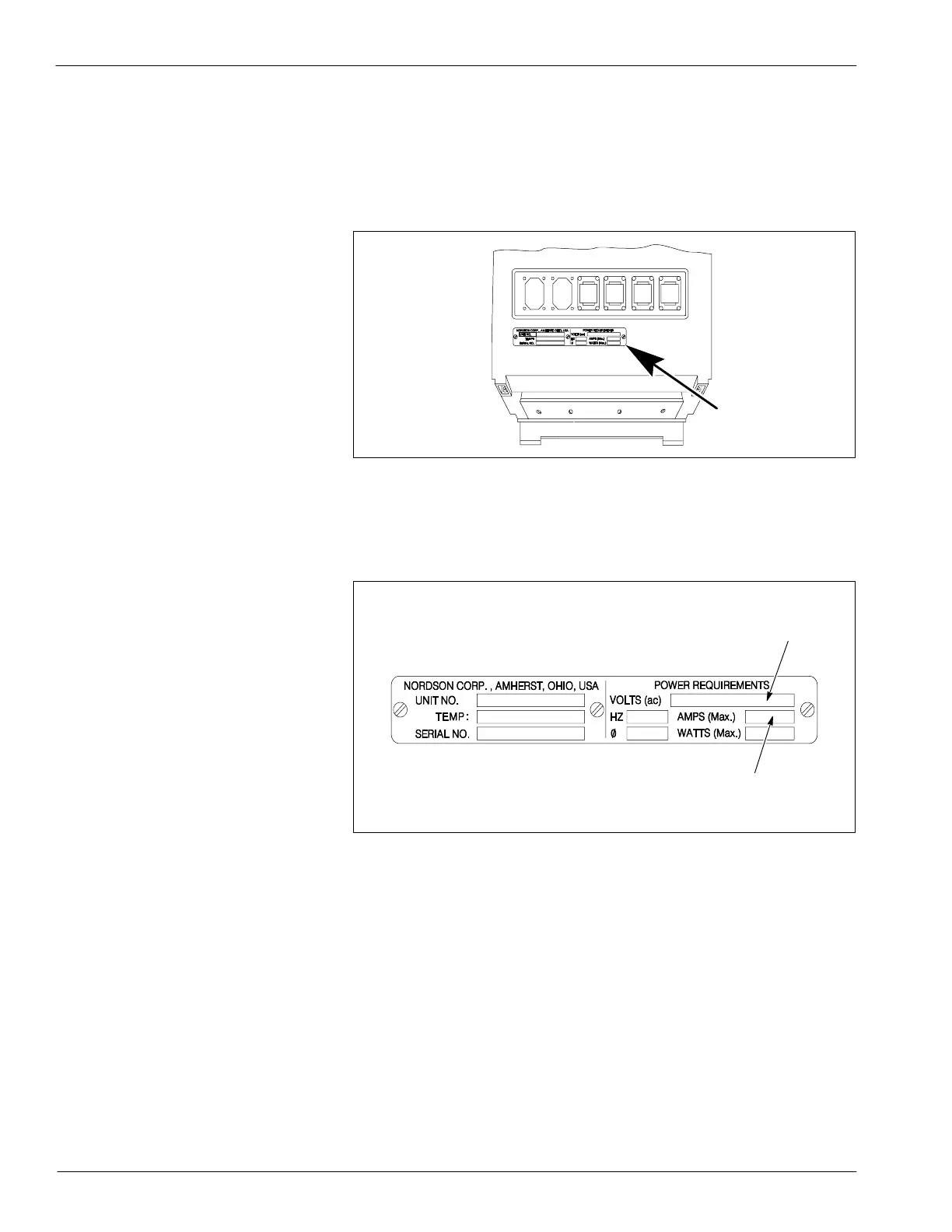

Fig. A 1 -18 Location of Identification Plate
3. See Figure A 1-19. Determine the voltage specification of your unit
by looking at the VOLTS (ac) portion (1) of the identification plate.
4130689A
1
2
Fig. A 1 -19 Unit Identification Plate
1. VOLTS (ac) portion 2. AMPS (max.) portion
