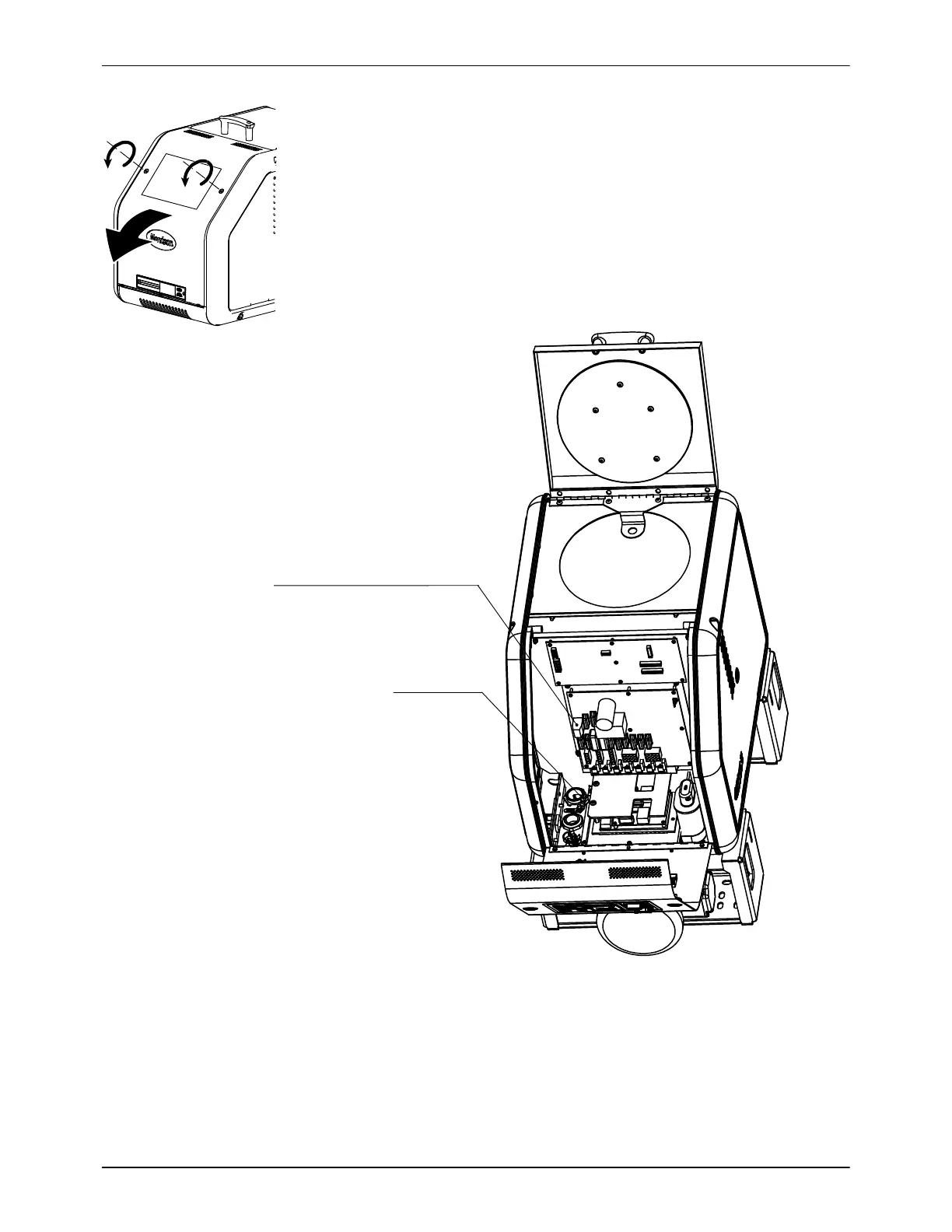

Opening the electrical enclosure
door
Installation
3-9
Part 1073401_07
E 2021 Nordson Corporation
To mount the melter
1. Open the electrical enclosure door.
2. Route the power cable between the power disconnect switch and the
melter, and then through the PG-21 or 1-inch conduit penetration on the
floor of the electrical compartment.
3. Connect each power cable lead to the main board terminal block as
shown in Figure 3‐4.
4. Connect the ground lead from the power cable to the ground lug that is
located on the chassis. The ground lug is marked PE/G.
Main Board-XT1
PE/G
Figure 3-4 Connecting the power cable and grounding lead on the DuraBlue10/16L melter
