Installation
3-11
Part 1032059B
E 2003 Nordson Corporation
Manual 41-DURABLUE-MA-02
P/N 1030542
12
4
3
12
4
3
B900

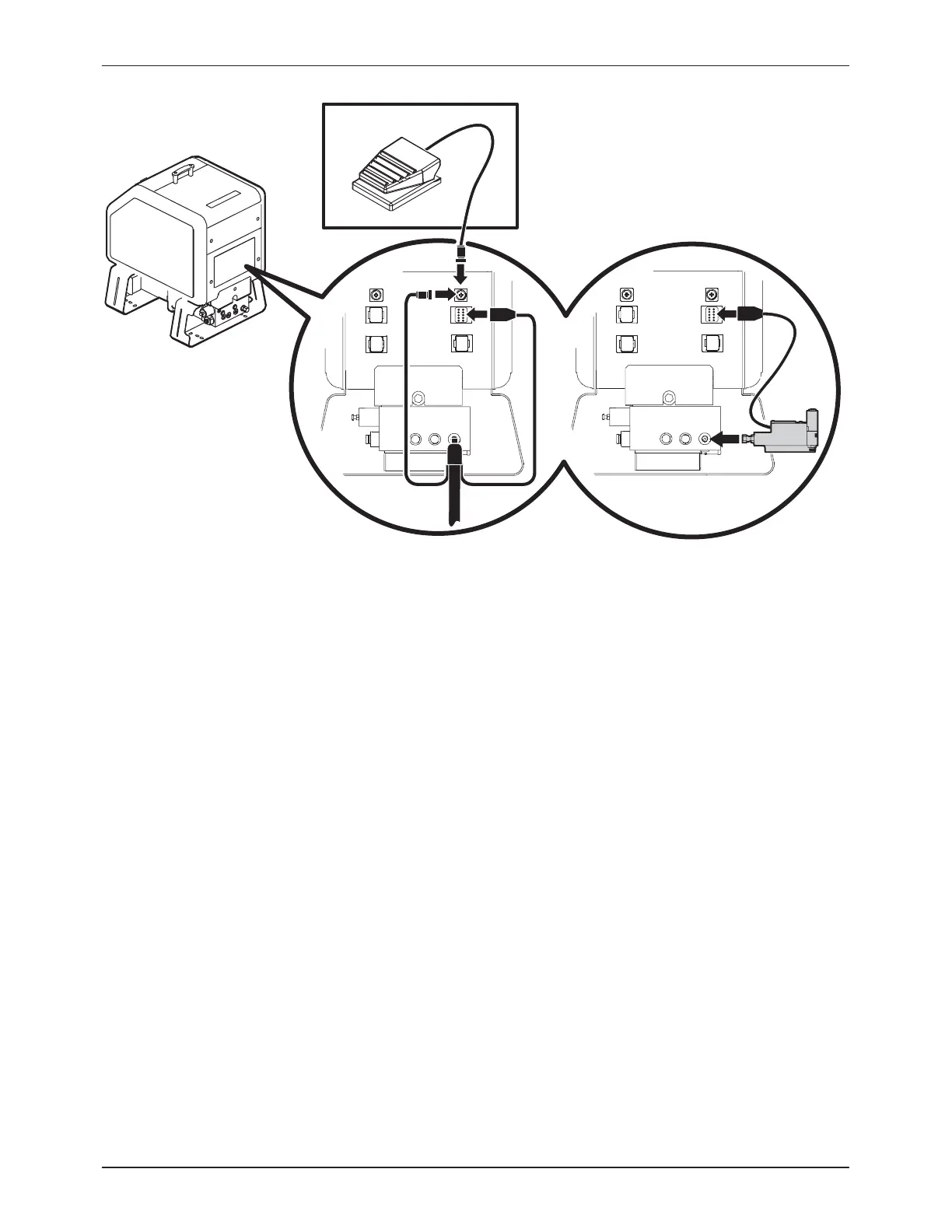

Figure 3-4 Connecting a switched handgun hose or footswitch
To connect guns
Observe the following guidelines:
S For information about choosing the most appropriate Nordson hot melt
gun for your manufacturing process, refer to the latest edition of
Nordson’s hot melt dispensing equipment Replacement Parts Catalog or
contact your Nordson representative. Refer to Appendix A, Calculating
Melter Power Requirements, for information about how to calculate the
power required by Nordson hot melt guns.
S Refer to the user’s guide that is shipped with each gun for information
about installing the gun and connecting a hose to the gun.
S See Figure 3-4. The B900N electric gun can be connected directly to the
manifold. Operating parameter 12 or 13 must be enabled if a B900N is
connected. Refer to Appendix A, Operating Parameters.
NOTE: DuraBlue melters are shipped with a 100-mesh (0.15 mm) hot melt
filter installed in the pump body. Filters with 50- and 150-mesh screens
(0.11 mm and 0.07 mm respectively) are also available. Order the
appropriate filter based on the smallest nozzle size used in your application.
