(tank, hose, and gun)
Operation
4-2
Part 1032059B
E 2003 Nordson Corporation
Manual 41-DURABLUE-MA-02
More about Heated Components

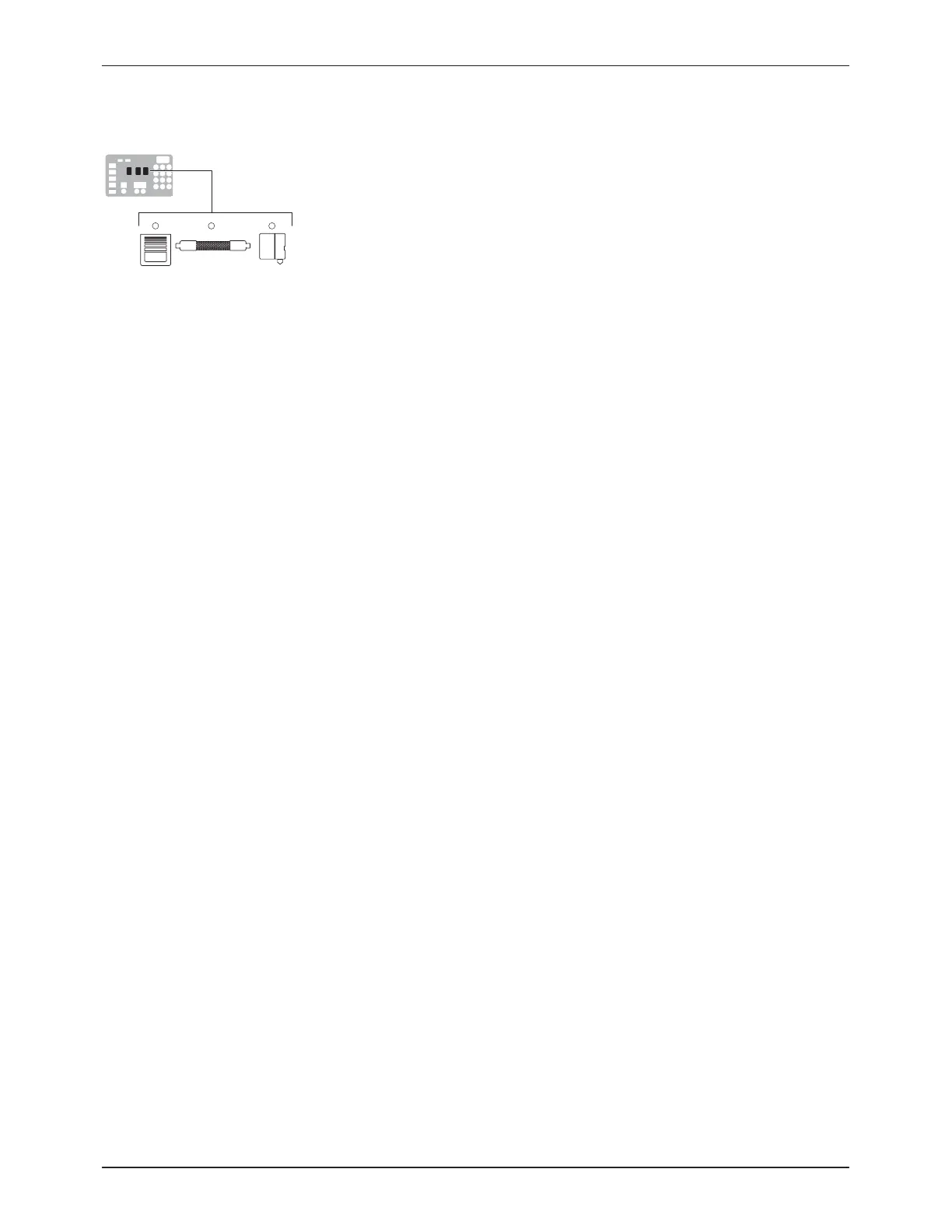

The melter contains three groups of heated components. These are the
tank group, which contains the tank and the pump, the hose group, and the
gun group. Component groups are represented on the control panel by the
component keys shown to the left.
Heated components within each group are identified by their position
number. The position of the tank and pump is fixed at 1. Hose and gun
position numbers are automatically assigned based on the hose/gun
receptacle they are connected to. For example, the position numbers of a
hose/gun pair that is connected to the second receptacle would be hose
position 2 and gun position 2.
NOTE: In some installations, auxiliary devices (such as a heated air
manifold) may be connected to a hose/gun receptacle. In such cases, you
should label (or otherwise identify) the auxiliary device as to the hose or gun
position number that represents the device. The control panel will identify
such devices as a hose or gun, regardless of what the device actually is.
