Nordson FP-200 Instruction Sheet

Converting an FP-200 Extrusion Gun to an FP-200 Swirl Gun
10
Part 237494_02
E 2012 Nordson Corporation
Assembling the Extrusion Gun (contd)
9. Assemble the swirl air line as follows:
a. Slide the black plastic tube clamp onto the plastic tube.
b. Insert the curved end of the metal tube into the male connector and
tighten the tube nut.
c. Insert the other end of the metal tube into the plastic tube.
d. Slide the tube clamp to within 6 mm (0.25 in.) of the end of the plastic
tube and squeeze it shut with pliers.
2
1
5
6
7
8
9
6 mm (0.25 in.)
3
4

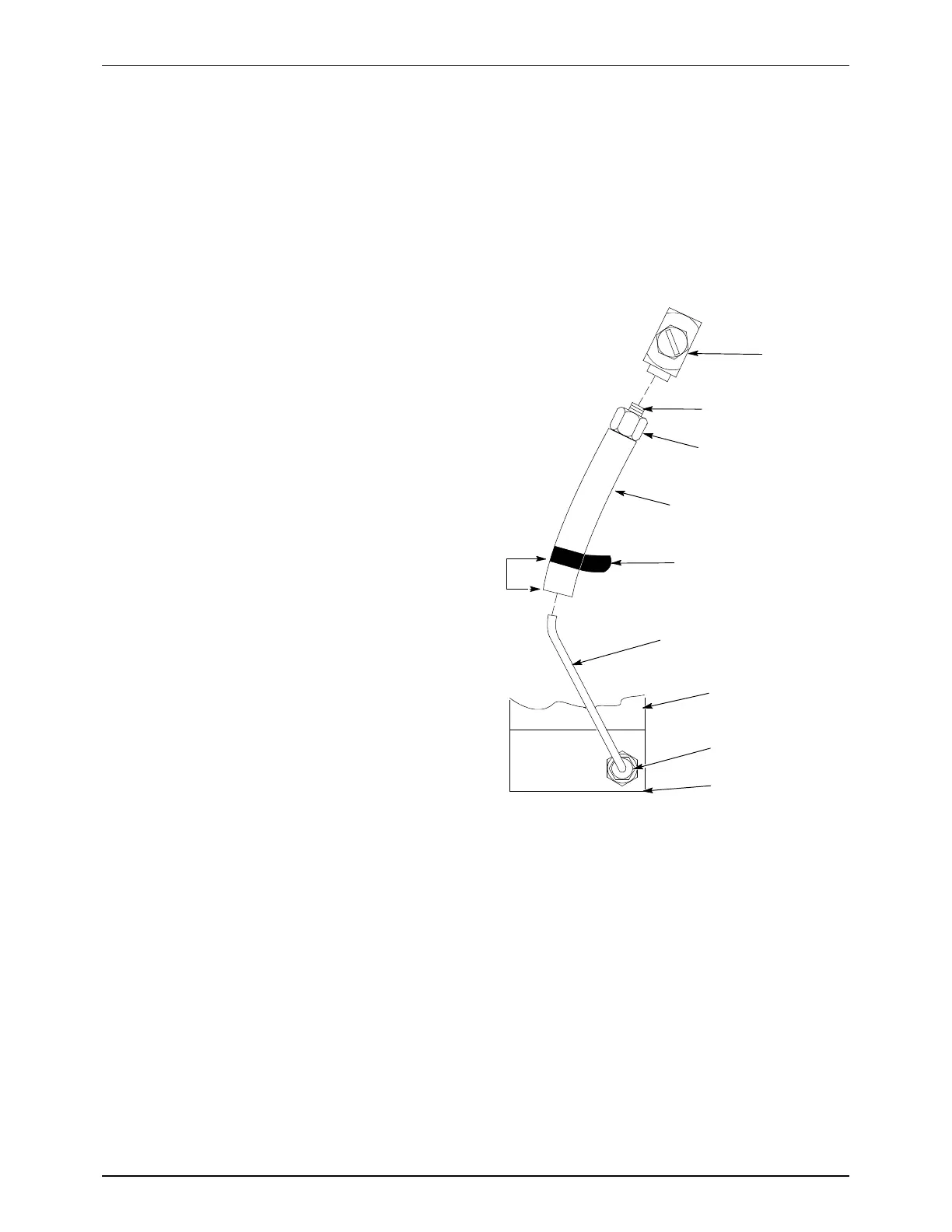

Figure 5 Assembling the Swirl Air Line
1. Swirl air line universal elbow
2. Sealant
3. #10–32 connector
4. Plastic tube
5. Tube clamp
6. Metal tube
7. Service block (partially shown)
8. Male connector tube nut
9. Air manifold
