Nordson FP-200 Instruction Sheet

Converting an FP-200 Extrusion Gun to an FP-200 Swirl Gun
9
Part 237494_02
E 2012 Nordson Corporation
6. Install the air manifold on the service block using the two socket-head
screws.
1
2
3

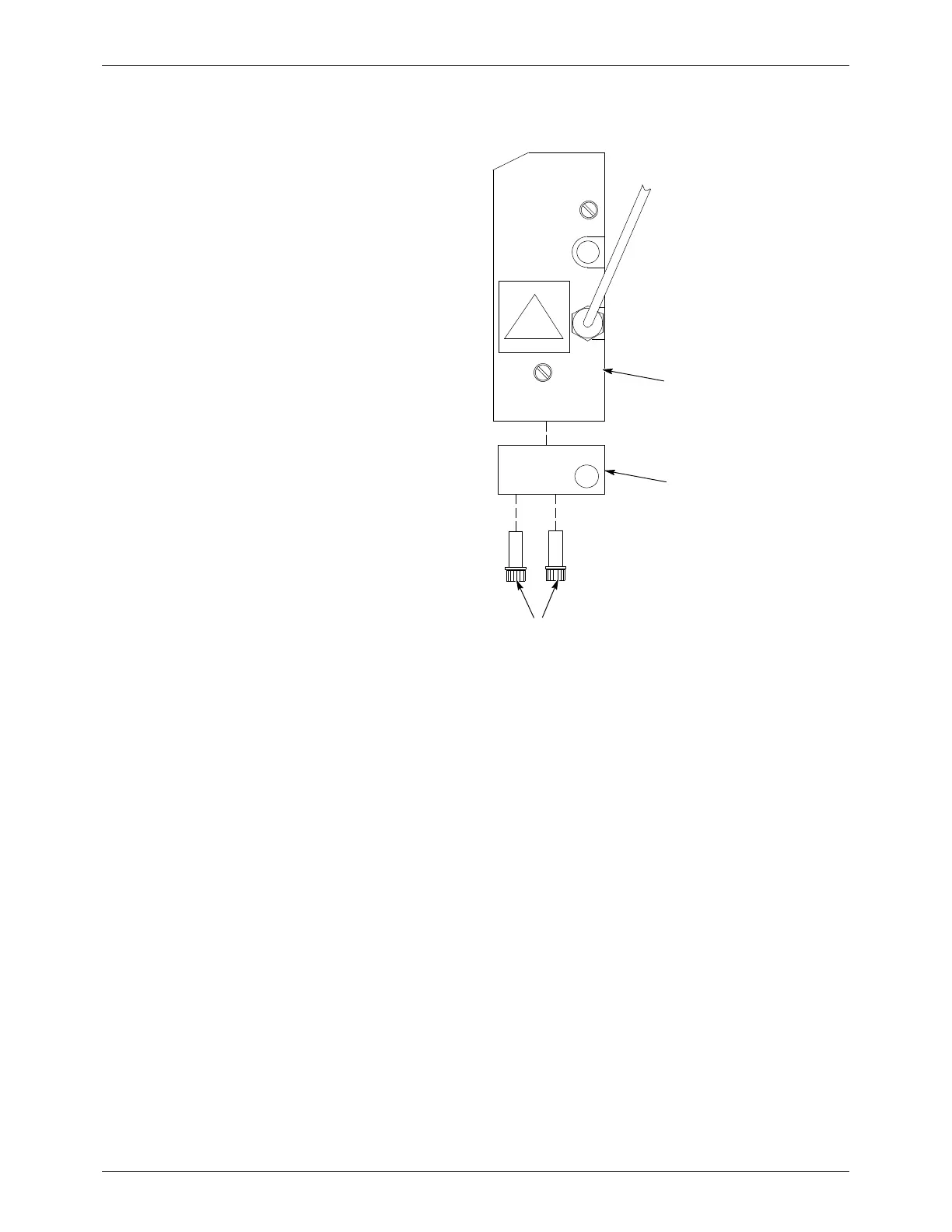

Figure 4 Installing the Air Regulator (Top View)
1. Service block
2. Air manifold
3. Socket-head screws
See Figure 5 for steps 7 through 9.
7. Thread the swirl air line male connector into the air manifold.
8. Thread the #10–32 connector into the swirl air line universal elbow and
carefully tighten it.
