Nordyne E3 Series User Manual

8
Table 2. Optional Air Conditioning and
Heat Pump Equipment
Figure 3. Optional Rear Mounting Plate
(P/N 389080)
3"
(76 mm)
20-1/8"
(511 mm)
11/16"
(17 mm)
Notes:
1) For A/C and H/P use.
2) Includes coil filters.
3) For upflow or downflow installations.
4) For upflow A/C or H/P installations (includes
one filter; use filter from furnace to
complete filtering system in this accessory).
5) Standard in EB models.
Upflow Stand
Filters (one obtained
from furnace)
23 3/4" (603 mm)
20" (508 mm)
14"
(357 mm
)
20" (508 mm)
Cabinet
Insulation
Upflow Coil Cabinet
23 3/4" (603 mm)
29"
(737 mm)
NOTE: See Table 2 for descriptions
and notes

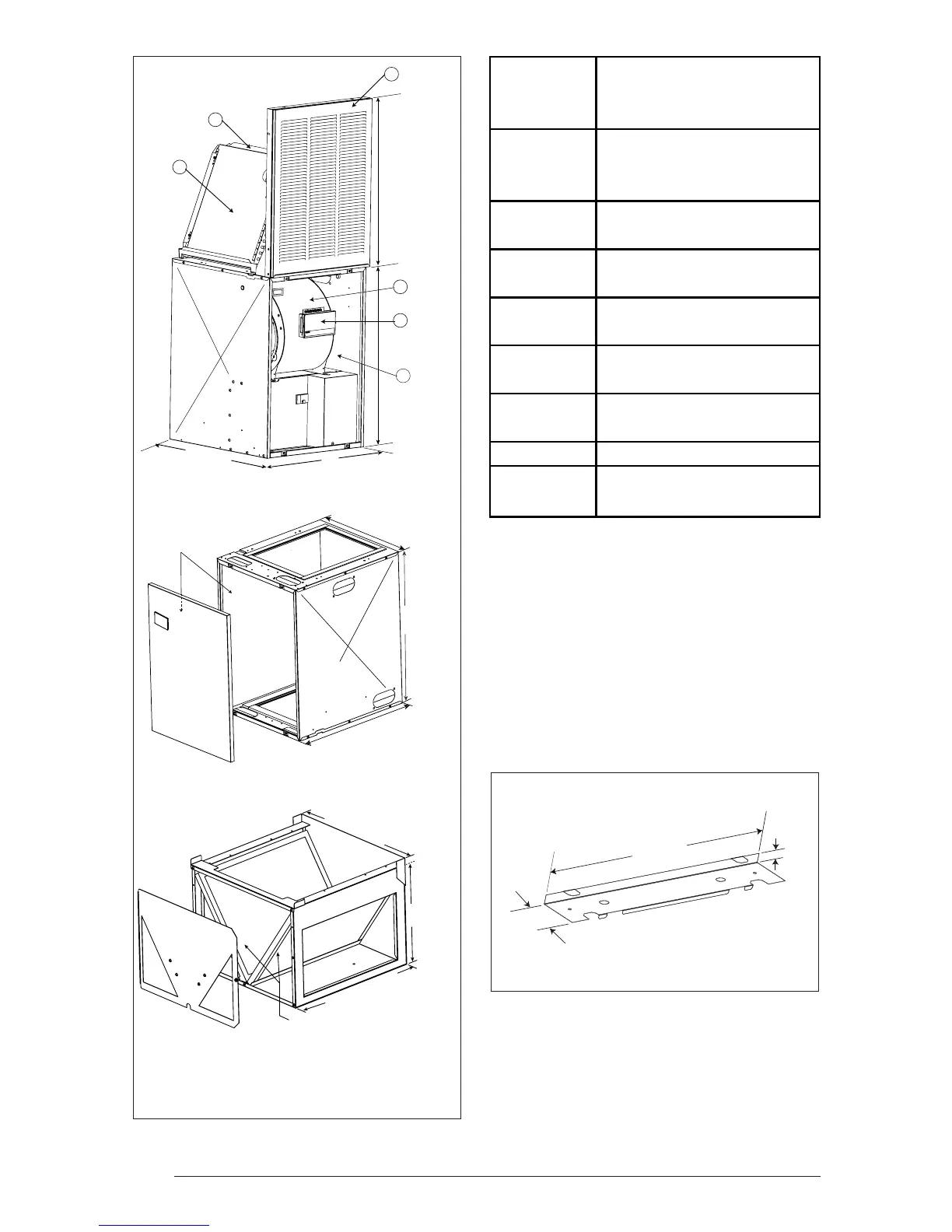

Figure 2. Optional Accessories
1
2
3
4
7
8
27"
(686 mm)
29"
(737 mm)
20"
(508 mm)
23 3/4"
(603 mm)
Item
Number
(See Fig. Description
14-Speed Blower
4 Ton - See Notes: 1 & 5
5 Ton - See Note: 1
2 A.C./H.P. Relay Control
See Note: 1
3 Cabinet Insulation Kit
See Notes: 1 & 5
4 "A"-Coil Conversion Kit
See Note: 2
5 Coil Cabinet
See Note: 3
6Upflow Stand
See Note: 4
7 A/C and H/P Indoor Coils
8 Return Air Grille and
Frame Assembly
