GENERAL
16
7/3243. I12
27-25/32
"B" Cabinet
Top Return Knockouts
-- 19-7/8 --
--3-17/32
COMBUSTION AIR INTAKE
--1-11/16
EXHAUST
VENT

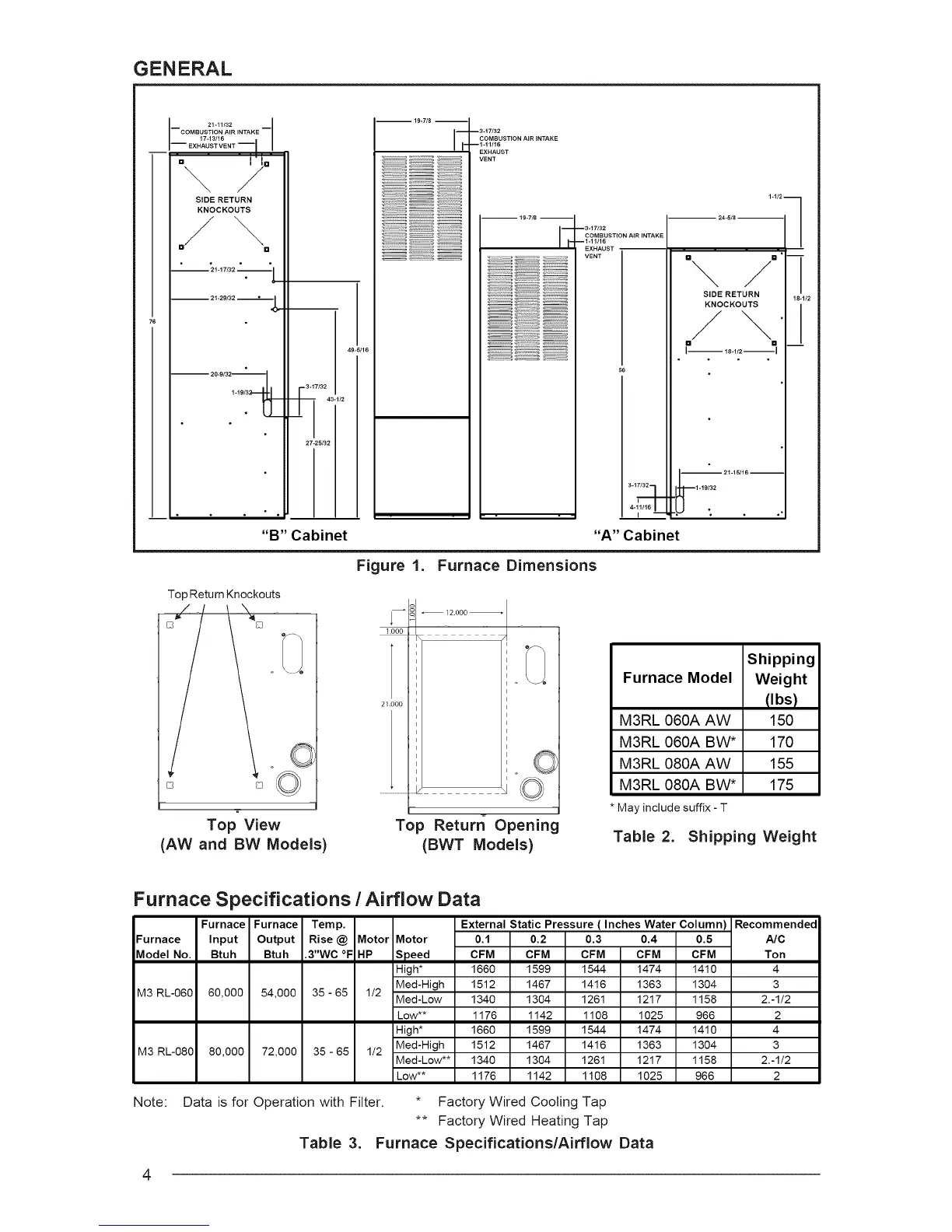

Figure 1. Furnace Dimensions
_ _ 12.000
1,000
I
:
21.000
(
Y
Top View Top Returrl Opening
(AW and BW Models) (BWT Models)
--3-17/32
COMBUSTION AIR INTAKE
--1-11/16
EXHAUST
VENT
"\ /
SIDE RETURN
KNOCKOUTS
/\
L--- ......_
_ 21-15/16--
m
"A" Cabinet
Shipping
Furnace Model Weight
(Ibs)
M3RL 060A AW 150
M3RL 060A BW* 170
M3RL 080A AW 155
M3RL 080A BW* 175
* May include suffix - T
Table 2. Shipping Weight
Furnace Specifications / Airflow Data
Furnace Furnace Temp. External Static Pressure ( Inches Water Column)
Furnace Input Output
rVlodel No. Btuh Btuh
M3 RL-060 60,000 54,000
M3 RL-080 80,000 72,000
Rise @ Motor Motor 0.1 0.2 0.3 0.4
.3"WC °F HP Speed CFM CFM CFM CFM
High* 1660 1599 1544 1474
Med-High 1512 1467 1416 1363
35 - 65 1/2
Med-Low 1340 1304 1261 1217
Low** 1176 1142 1108 1025
High* 1660 1599 1544 1474
35 - 65 1/2 Med-High 1512 1467 1416 1363
Med-Low** 1340 1304 1261 1217
Low** 1176 1142 1108 1025
Recommended
0.5 A/C
CFM Ton
1410 4
1304 3
1158 2.-1/2
966 2
1410 4
1304 3
1158 2.-1/2
966 2
Note: Data is for Operation with Filter. * Factory Wired Cooling Tap
•* Factory Wired Heating Tap
Table 3. Furnace Specifications/Airflow Data
4
