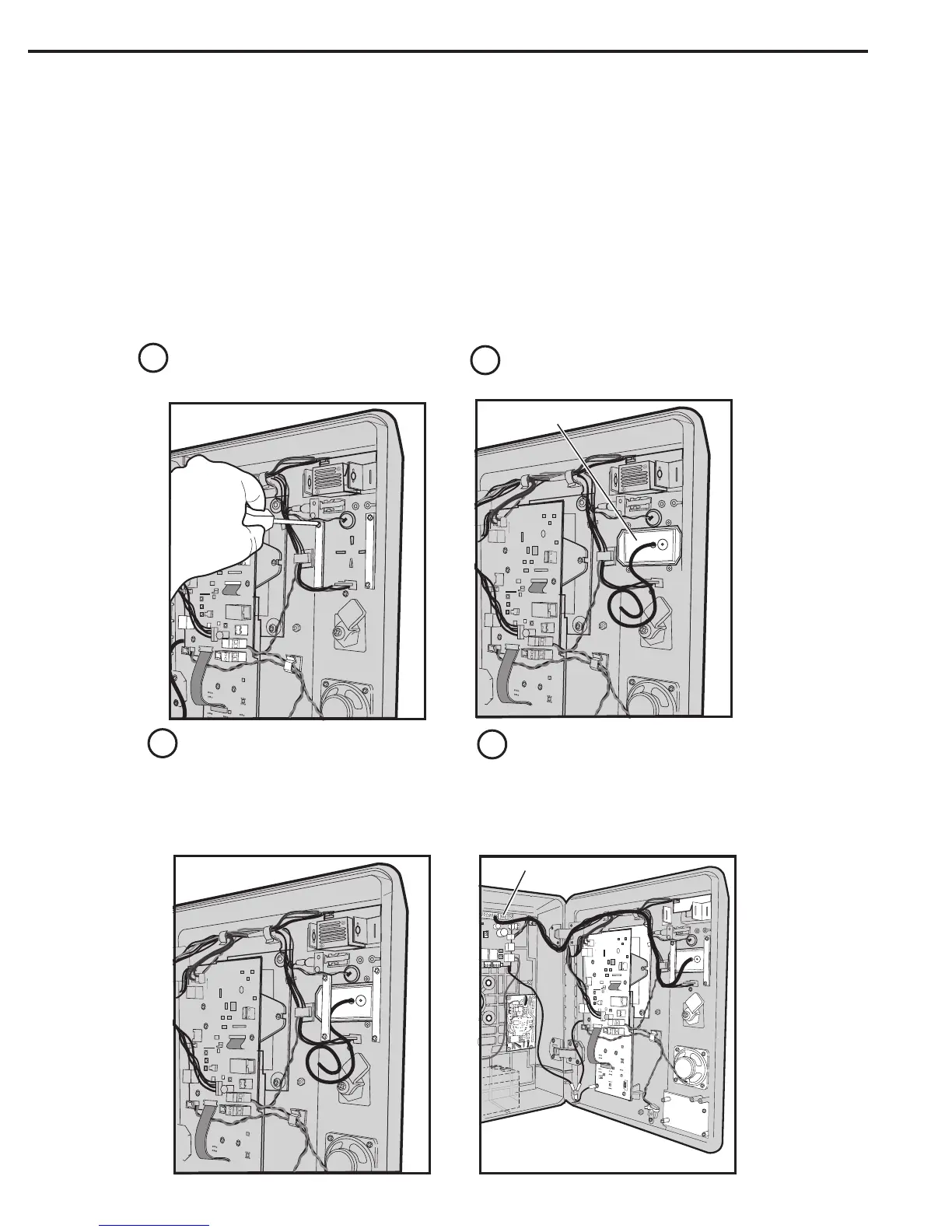

20
1
LOOSEN SCREWS TO REMOVE
RETAINING BRACKETS
2
ALIGN READER
IN FRONT PANEL
3
REINSTALL RETAINING
BRACKETS
4
CONNECT READER
TO TERMINAL. BE SURE TO
PLACE CABLE THRU WIRE
WRAP / TIE DOWNS.
TERMINAL
CARD READER
Optional Card Reader Mounting
A card reader can be installed inside the EC / EN Series unit. Using a built-in card reader saves the time and expense of installing a stand-alone card
reader next to the controlled access point. The user presents their credential directly to the unit’s front panel.
The unit is designed to accept mounting of a card reader. The card reader is retained by brackets inside of the unit’s front panel. Check the Web site
www.nortekcontrol.com for compatible card reader models.
The built-in card reader is a Wiegand device and connects to either of the unit’s reader connectors.
Card Reader Installation
1. Remove the four screws that hold the two card reader retaining brackets.
2. Align the card reader to the card reader retaining area on the inside of the front panel of the unit with the reading surface towards the front of the
system.
3. Position each of the card reader retaining brackets behind the reader and attach the brackets with the four mounting screws.
4. Connect the card reader wires to one of the available reader terminals on the unit.
