Operation Instruction
16

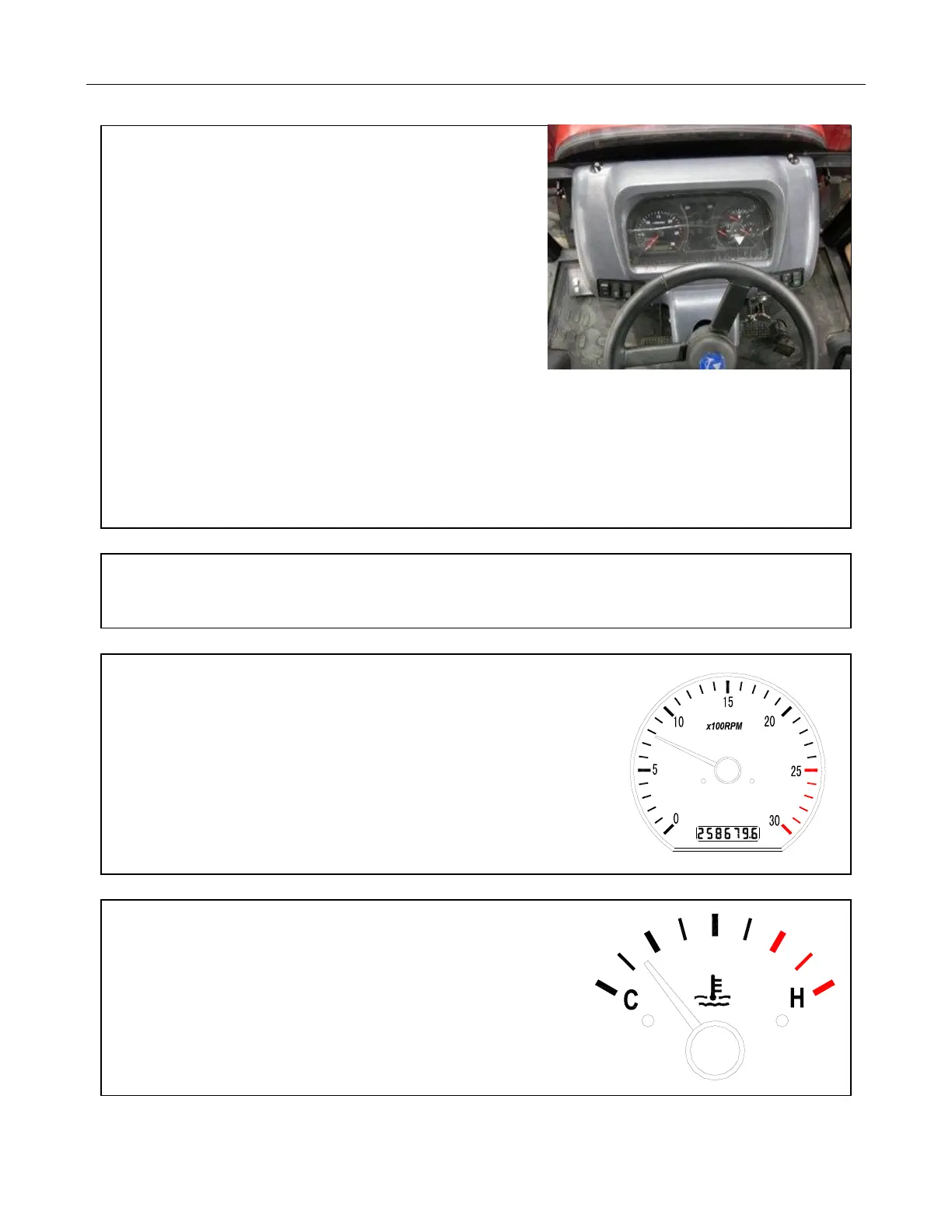

2.3.2 Instrumentation and Switches
Instrumentation and Switches
The combination instrumentation is
composed of a water temperature gauge,
a fuel gauge, an engine tachometer, a turn light
indicator lamp, a high/low beam indicator lamp,
a position indicator lamp, a charge indicator lamp,
an engine oil pressure indicator lamp. These help
monitor the working condition of the tractor Figure 2-2 Instrumentation and Switches
at all times.
IMPORTANT NOTE: When operating the tractor, the driver should observe the various instruments and
indicator lights. If anything abnormal occurs, you should stop the tractor and troubleshoot the problem.
Engine Tachometer
After the, the tachometer shows the rotary speed of the engine
There is engine is started also a box which reflects the operating
hours of the engine.
Figure 2-3 Engine Tachometer
Water Temperature Gauge
The engine cooling liquid temperature is marked
with an indicator needle that goes from left to right;
the red area denoting a high temperature.
Figure 2-4 Water Temperature Gauge
1. Combination instrument assembly
2. Right rocker switch combination
3. Ignition lock
4. Left rocker switch combination
